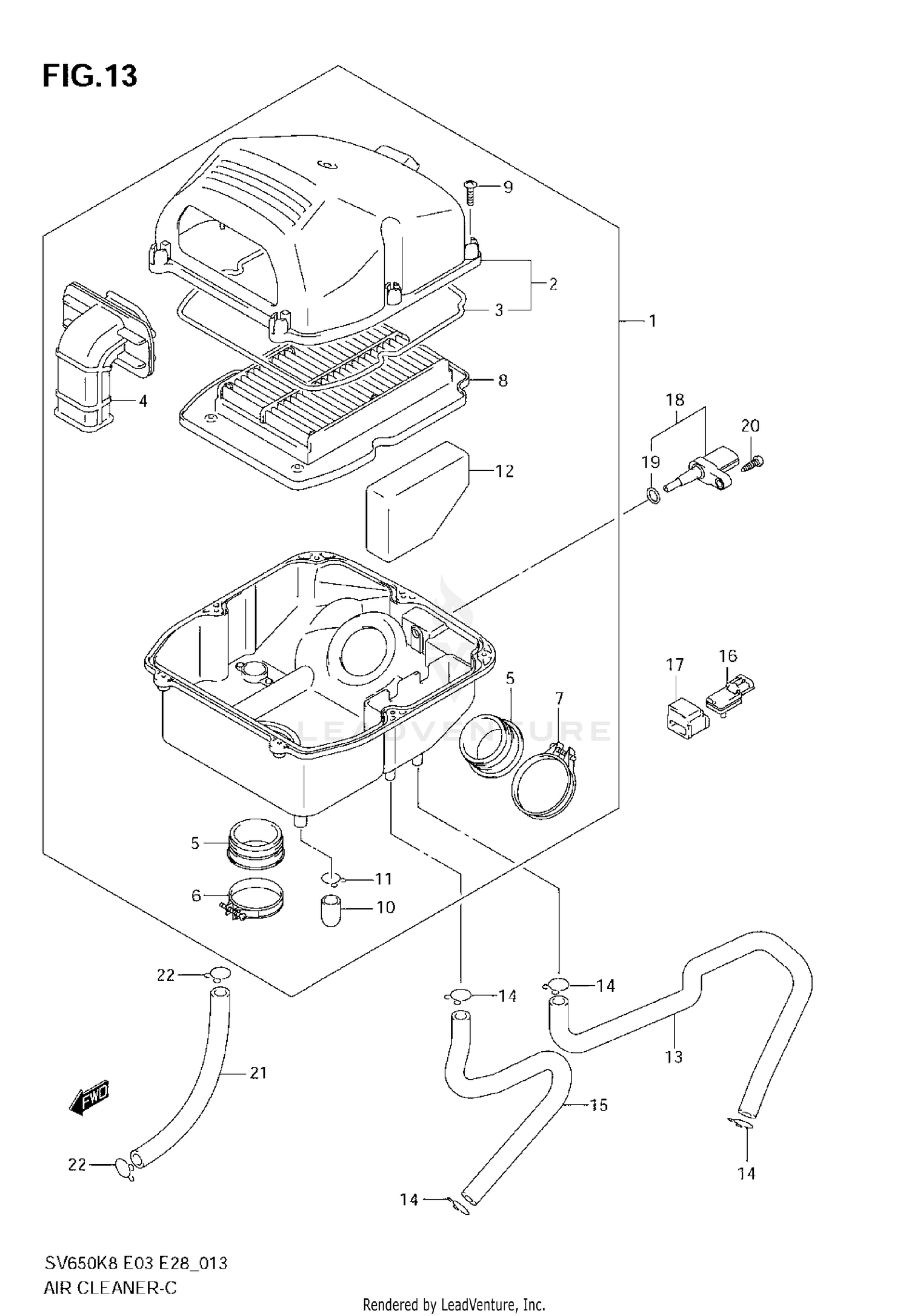

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13700-17G10
|
$227.67 | ||
|
Unavailable |
|||
|
#2
CAP,AIR CLEANER
13740-16G00
Superseded by 13740-16G01
|
$46.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
13746-16G00
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE,INLET
13891-17G00
Superseded by 13891-17G01
|
$53.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE,OUTLET
13881-17G00
Superseded by 13881-17G01
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, OUTLET TUBE FRONT
13826-17G00
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, OUTLET TUBE REAR
13826-17G00
|
$7.18 | ||
|
Unavailable |
|||
|
#8
FILTER, AIR CLEANER
13780-16G00
|
$41.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03541-0520B
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
.PLUG
13859-41B10
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09401-14301
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
FILTER, BREATHER
13788-17G00
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
TUBE, BREATHER CRANKCASE
13851-17G00
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP (ID:15.5)
09401-15101
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, BREATHER CYLINDER
13851-17G10
|
$20.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR, BOOST
18591-41F00
|
$330.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER
18595-41F00
|
$10.68 | ||
|
Unavailable |
|||
|
#18
SENSOR AIR TEMP
13650-41F10
|
$68.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
.O-RING
13655-41F10
|
$7.63 | ||
|
Unavailable |
|||
|
#20
SCREW
03511-0516A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, ISC VALVE
13865-17G00
|
$21.35 | ||
|
Unavailable |
|||
|
#22
CLIP (ID:15.5)
09401-15101
|
$2.75 | ||
|
Unavailable |
|||
