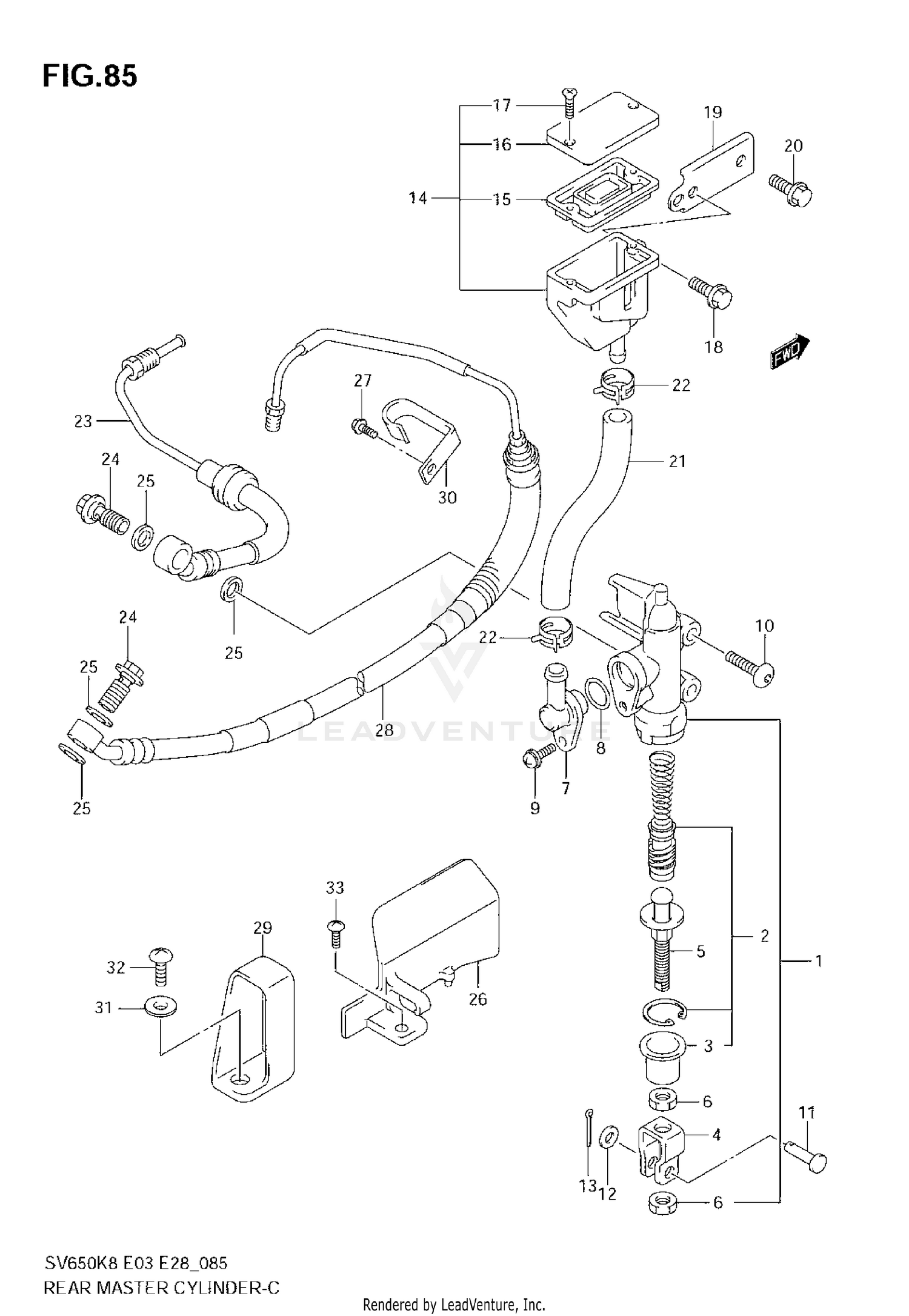

Rear Master Cylinder (sv650ak8/sak8) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-16G00
|
$301.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
69600-34820
Superseded by 69600-34821
|
$34.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
69691-00A00
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
YOKE
69692-27A30
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, PUSH
69670-48B00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
69693-05A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR
69672-05A00
|
$7.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
02112-7412A
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
09139-06028
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
09200-06068
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COTTER PIN
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#14
TANK ASSY,REAR RESERVOIR
69740-01D02
|
$91.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM
59667-04700
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
59669-05D00
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
69689-04A00
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, TANK
09103-06222
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, RR RESERVOIR TANK
69750-16G10
|
$18.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BRACKET
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE, RESERVOIR TANK
69731-16G20
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP (ID:12.9)
09401-13417
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE, ASSY, REAR BRAKE NO.1
69200-17G00
|
$268.16 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (10X1.25X22)
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE, RR BRAKE HOSE FR
61196-06G00
Superseded by 61196-06G10
|
$21.89 | ||
|
Unavailable |
|||
|
#27
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE ASSY,RR BR
69400-17G00
Superseded by 69400-17G01
|
$222.69 | ||
|
Unavailable |
|||
|
#29
GUIDE, REAR BRAKE HOSE
69243-16G00
|
$13.17 | ||
|
Unavailable |
|||
|
#30
CLAMP, REAR BRAKE HOSE NO.2
69266-17G00
|
|||
|
Unavailable |
|||
|
#31
WASHER, GUIDE RR BRAKE HOSE
09169-06041
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
.SCREW
02142-0616A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SCREW
02142-0510A
Superseded by 02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
