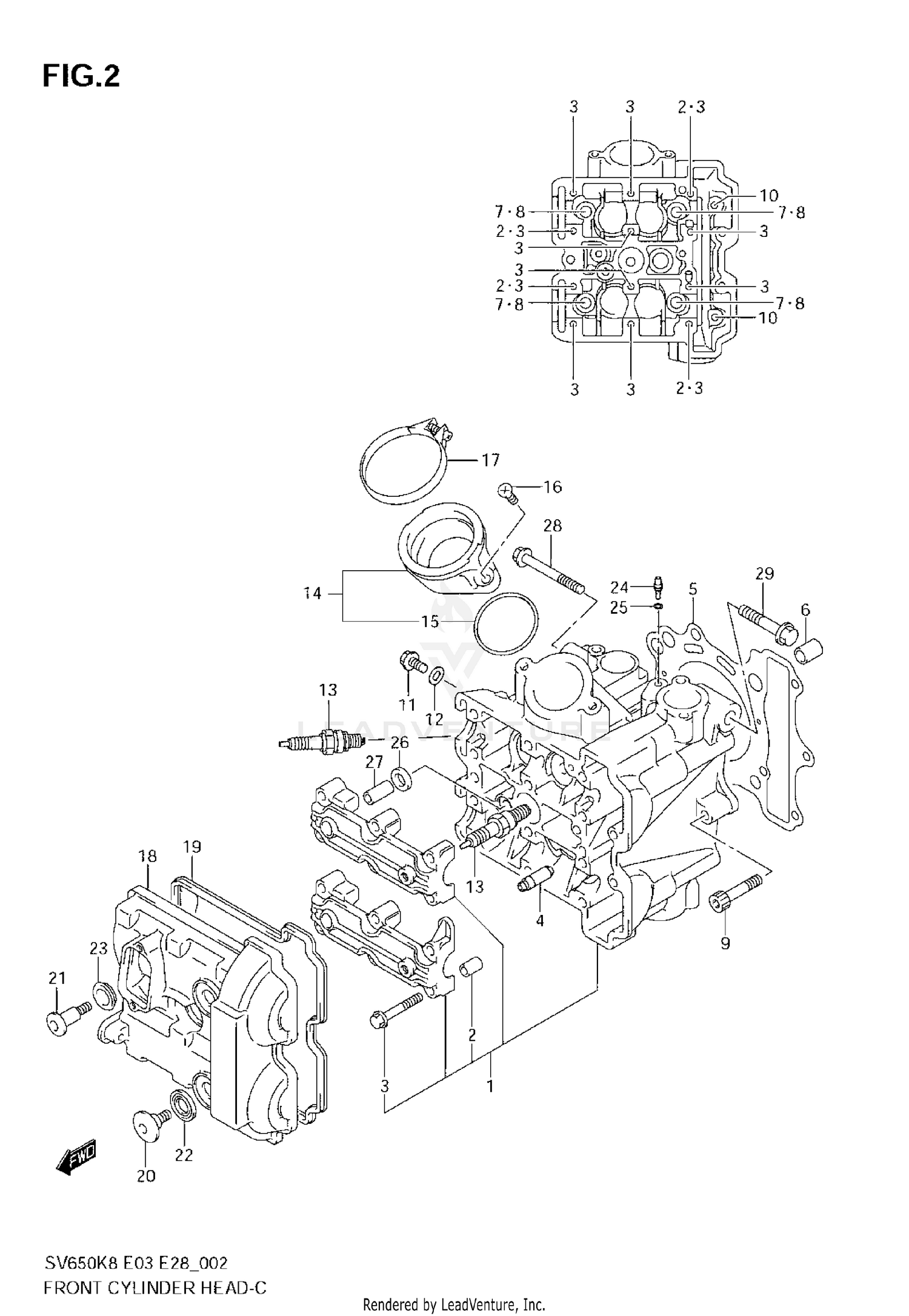

Front Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER FRONT
11101-17G20
|
$837.90 | ||
|
Unavailable |
|||
|
#2
PIN (6.2X8X11)
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (6X39)
09103-06026
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE, VALVE (OS:0.3)
11115-18D72
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET,CYLINDER HEAD
11141-20F00
|
$57.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER (10.5X19X2.0)
09160-10082
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (10X160)
09103-10272
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07120-0640B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X70)
09103-06103
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.32 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (CR9E)
09482-00458
|
$7.99 | ||
|
Unavailable |
|||
|
#13
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (NGK,CR7E)
09482-00516
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPARK PLUG (DENSO,U22ESR-N)
09482-00515
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE ASSY,INTAKE FRONT
13101-17G10
Superseded by 13101-17G11
|
$62.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O-RING (D:2.4,ID:47X42)
09280-46006
Superseded by 09280-46007
|
$8.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW
02122-0616B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09402-62208
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD FRONT
11171-17G10
|
$226.38 | ||
|
Available to order. Add to View Price |
|||
|
#19
.GASKET,CYLINDER HEAD COVER
11173-19F01
|
$44.01 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (7X17.5)
09106-07021
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (L:19)
09106-07010
|
$5.91 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, CYL HEAD COVER (L:5.5
11191-27E00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION,HEAD COVER BOLT
11192-13E00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET (#80)
09493-80005
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, 2ND AIR PASSAGE
11182-35F00
|
$4.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN
09206-08007
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT (10X105)
09103-10244
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01550-10707
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
