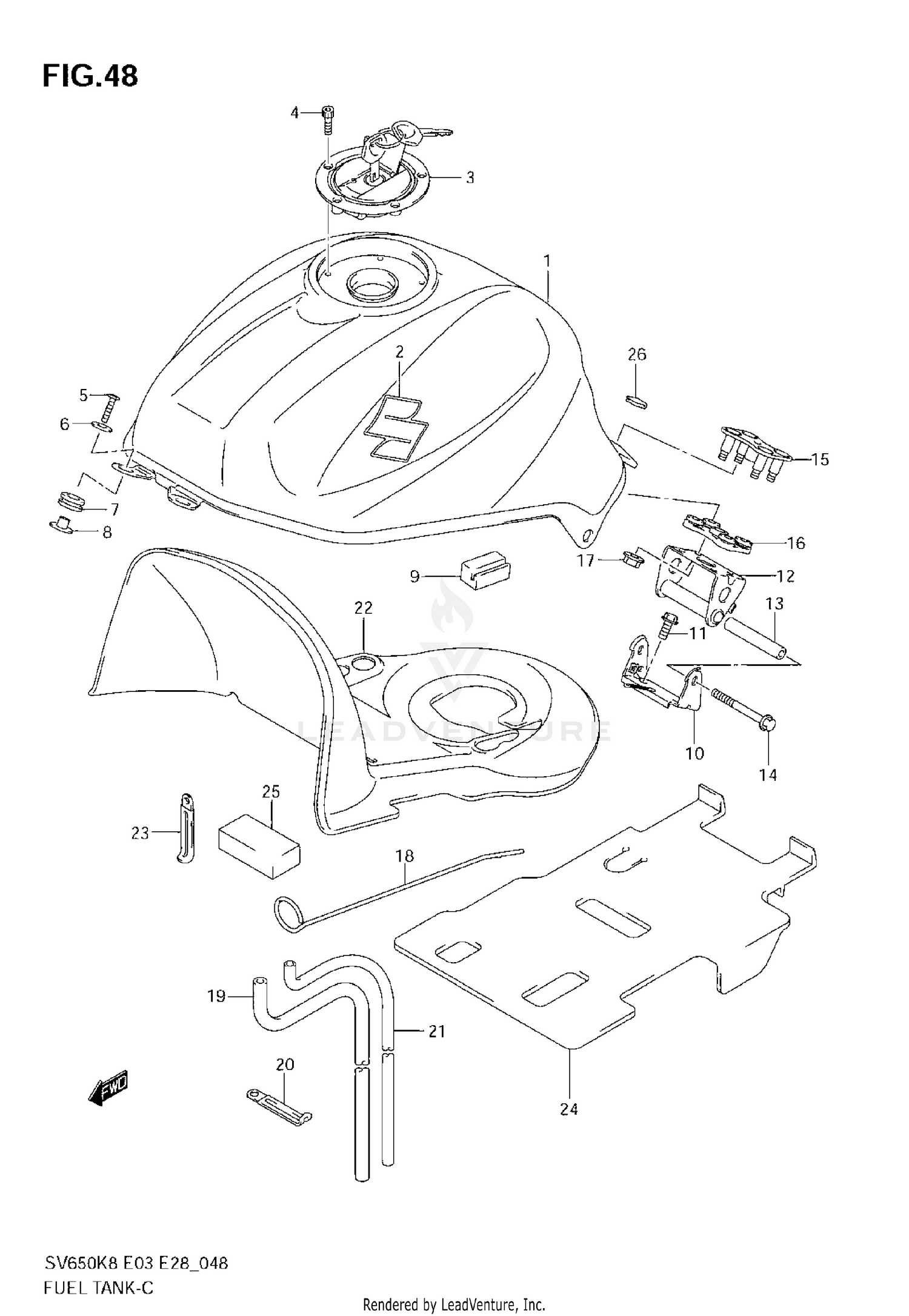

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL(
44100-16G60-YAY
Superseded by 44100-16G61-YAY
|
$1,356.93 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-16G60-YKZ
|
$1,010.13 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (GRAY)
44100-16G60-YLF
|
$1,061.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (WHITE)
44100-16G60-YPA
|
|||
|
Unavailable |
|||
|
#1
TANK ASSY,FUEL(
44100-16G81-YAY
Superseded by 44100-16G82-YAY
|
$1,609.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-16G81-YKZ
|
$1,380.23 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY,FUEL(
44100-16G81-YLF
Superseded by 44110-16G23-13L
|
$1,039.89 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (WHITE)
44100-16G81-YPA
|
|||
|
Unavailable |
|||
|
#2
EMBLEM
68111-18G20
|
$41.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$151.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-16860
Superseded by 44200-16862
|
$270.25 | ||
|
Unavailable |
|||
|
#4
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FRONT
09139-06029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,FUEL TANK,FR
44512-16G00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, SIDE
44541-16G00
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET COMP,FU
44550-16G00
Superseded by 44550-16G01
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-0820B
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, CENTER
44530-16G00
|
$45.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, JOINT
44561-35F00
|
$18.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, JOINT
09103-06060
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET,FUEL TANK REAR UP
44570-16G00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION
44542-16G00
|
$15.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
08319-3106B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY,FUEL TANK
44574-16G00
|
$30.17 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,WATER DRAI
44423-17G00
Superseded by 44423-17G01
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,FUEL TANK
44424-16G00
Superseded by 44424-18G01
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIELD, TANK HEAT
44191-16G00
|
$197.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Unavailable |
|||
|
#24
SHEET, HEAT RUBBER
44271-16G10
|
$76.79 | ||
|
Available to order. Add to View Price |
|||
|
#24
SHEET, HEAT RUBBER
44271-17G00
|
|||
|
Unavailable |
|||
|
#25
CUSHION, TANK
44545-16G00
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
MOLDING
68241-16G00
Superseded by 68241-16G01
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
