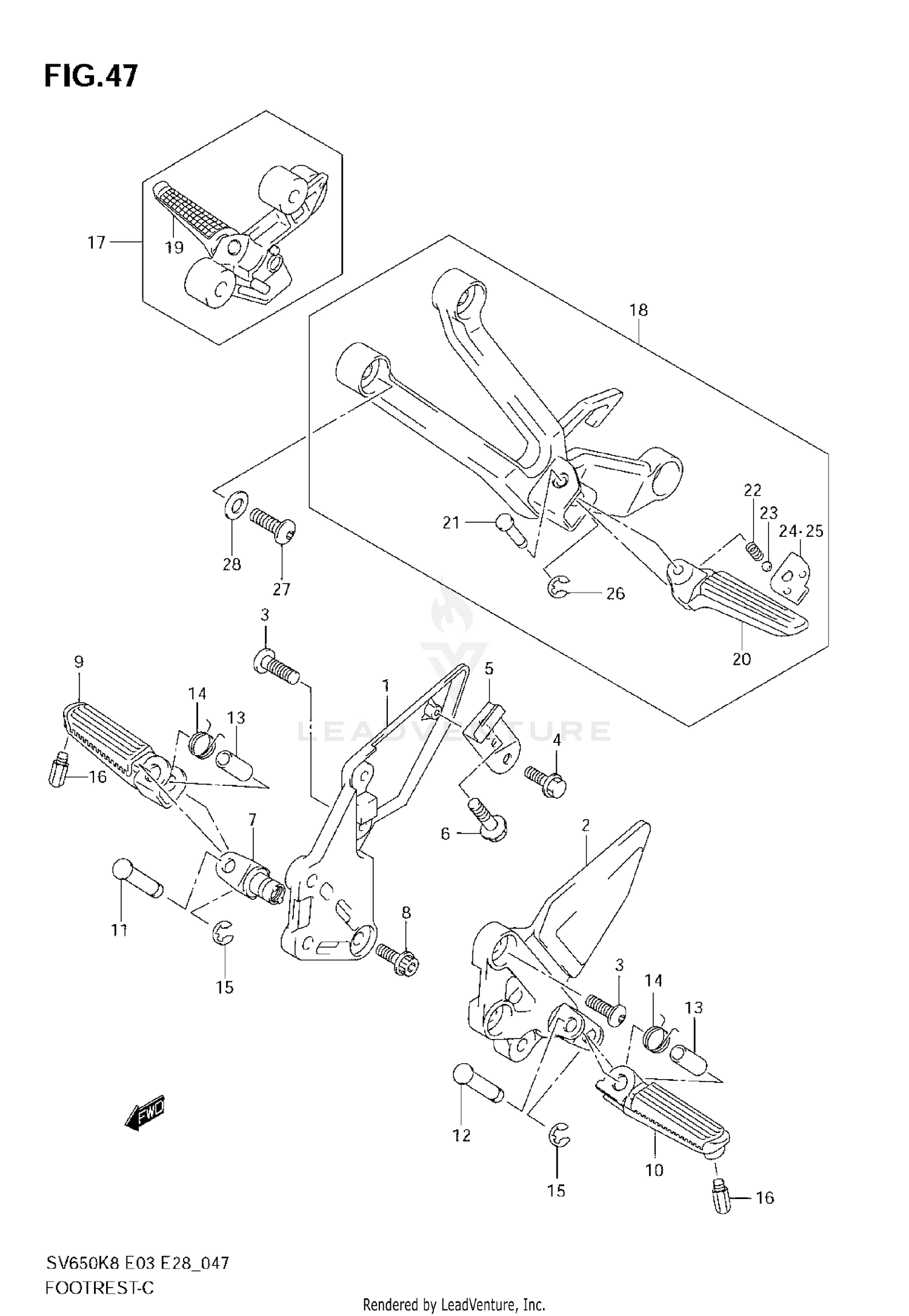

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-16G21
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-16G21
|
$137.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BRACKET
09106-08167
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, BRACKET RH
01550-0610B
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, RH
43571-17G20
|
$19.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, PLATE
01550-0820B
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER,FOOTREST
43530-16G00
Superseded by 43540-04K00
|
$41.74 | ||
|
Unavailable |
|||
|
#8
BOLT, HOLDER
09106-10064
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR, FRONT FOOTREST RH
43510-02F11
|
$67.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, FRONT FOOTREST LH
43520-02F11
|
$66.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, RH
09208-08014
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, LH
09208-08016
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-08149
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09448-18022
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
E RING
08332-1106B
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,BANK SENSOR
43576-48B02
|
$9.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST ASSY, PILLION RH
43600-17G20
|
$254.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST ASSY, PILLION LH
43700-17G20
|
$254.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAR, PILLION RH
43611-35F01
|
$72.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR, PILLION LH
43621-35F01
|
$69.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
87259-85510
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, RH
43816-33E21
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, LH
43826-33E22
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
E RING
08332-1104B
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BRACKET
09106-08150
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09164-08020
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
