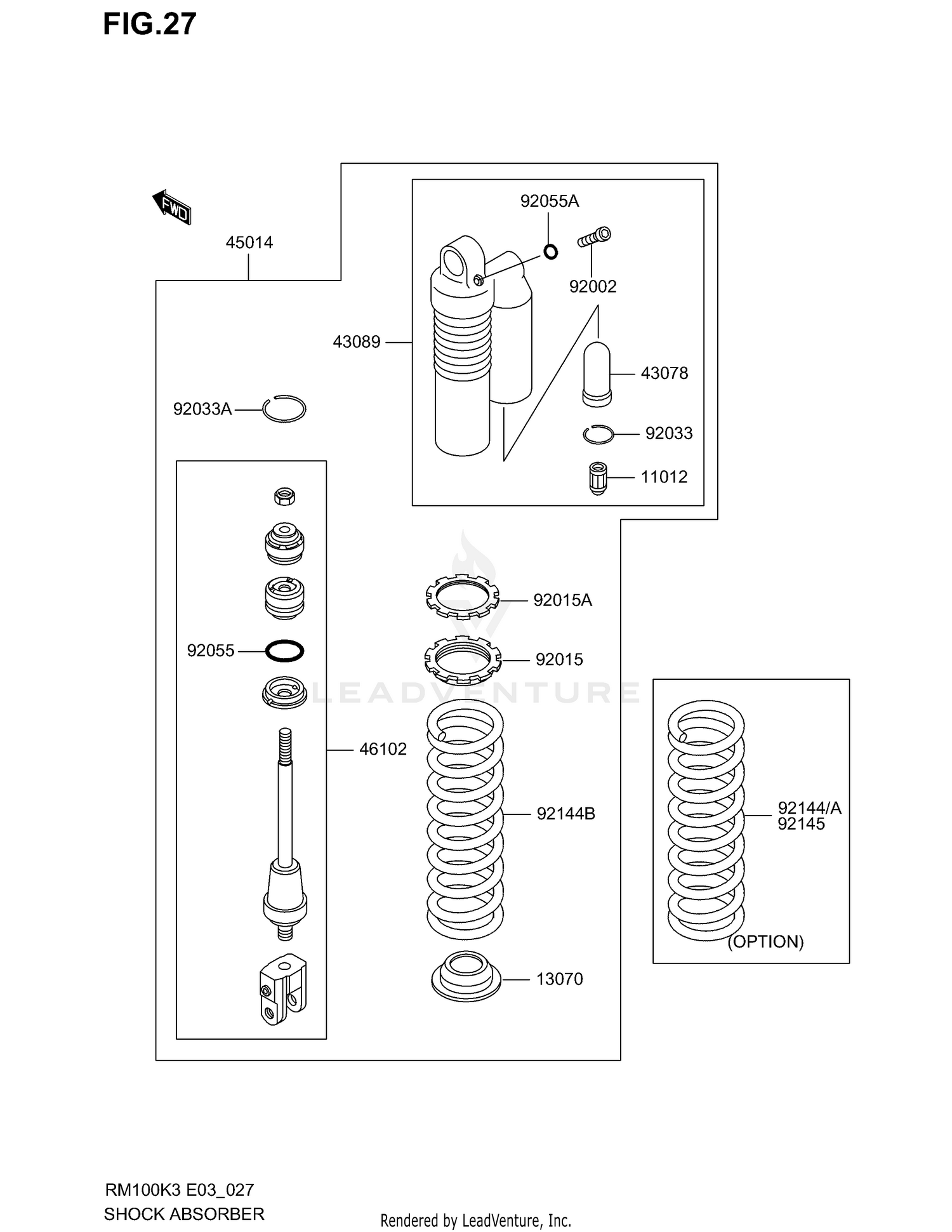

Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,VALVE AIR
K1101-21391
|
$2.27 | ||
|
Unavailable |
|||
|
#13070
GUIDE,SPRING
K1307-01233
|
$16.19 | ||
|
Unavailable |
|||
|
#43078
RESERVOIR,SHOCKABSORBER
K4307-81112
|
$41.59 | ||
|
Unavailable |
|||
|
#43089
CYLINDER-SHOCKABSORBER
K4308-91162
|
$268.42 | ||
|
Unavailable |
|||
|
#45014
SHOCKABSORBER,S.RED
KK450-14181-7VM
|
$540.61 | ||
|
Unavailable |
|||
|
#46102
ROD,SHOCKABSORBER
K4610-21411
|
$393.18 | ||
|
Unavailable |
|||
|
#92002
BOLT,DRAIN
K9200-21955
|
$5.86 | ||
|
Unavailable |
|||
|
#92015
NUT,SPRING ADJUST
K9201-51679
|
$16.78 | ||
|
Unavailable |
|||
|
#92015A
NUT,SPRING ADJUST LOCK
K9201-51713
|
$16.78 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP,REARSHOCK
K9203-31091
|
$2.14 | ||
|
Unavailable |
|||
|
#92033A
RING-SNAP,SHOCKABSORBER
K9203-31211
|
$1.83 | ||
|
Unavailable |
|||
|
#92055
RING-O,ROD
K9205-51334
|
$2.89 | ||
|
Unavailable |
|||
|
#670
O RING,4MM
KK670-B1504
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,SHOCKABSORBER,K=4.6,RED
KK921-44157-0VM
|
$194.70 | ||
|
Unavailable |
|||
|
#92144A
SPRING,SHOCKABSORBER,K=5.0,RED
KK921-44157-1VM
|
$194.70 | ||
|
Unavailable |
|||
|
#92144B
SPRING,SHOCKABSORBER,K=4.8,RED
KK921-44194-5VM
|
$194.70 | ||
|
Unavailable |
|||
|
#92145
SPRING,SHOCKABSORBER,K=4.4,RED
KK921-45137-1VM
|
$194.70 | ||
|
Unavailable |
|||
