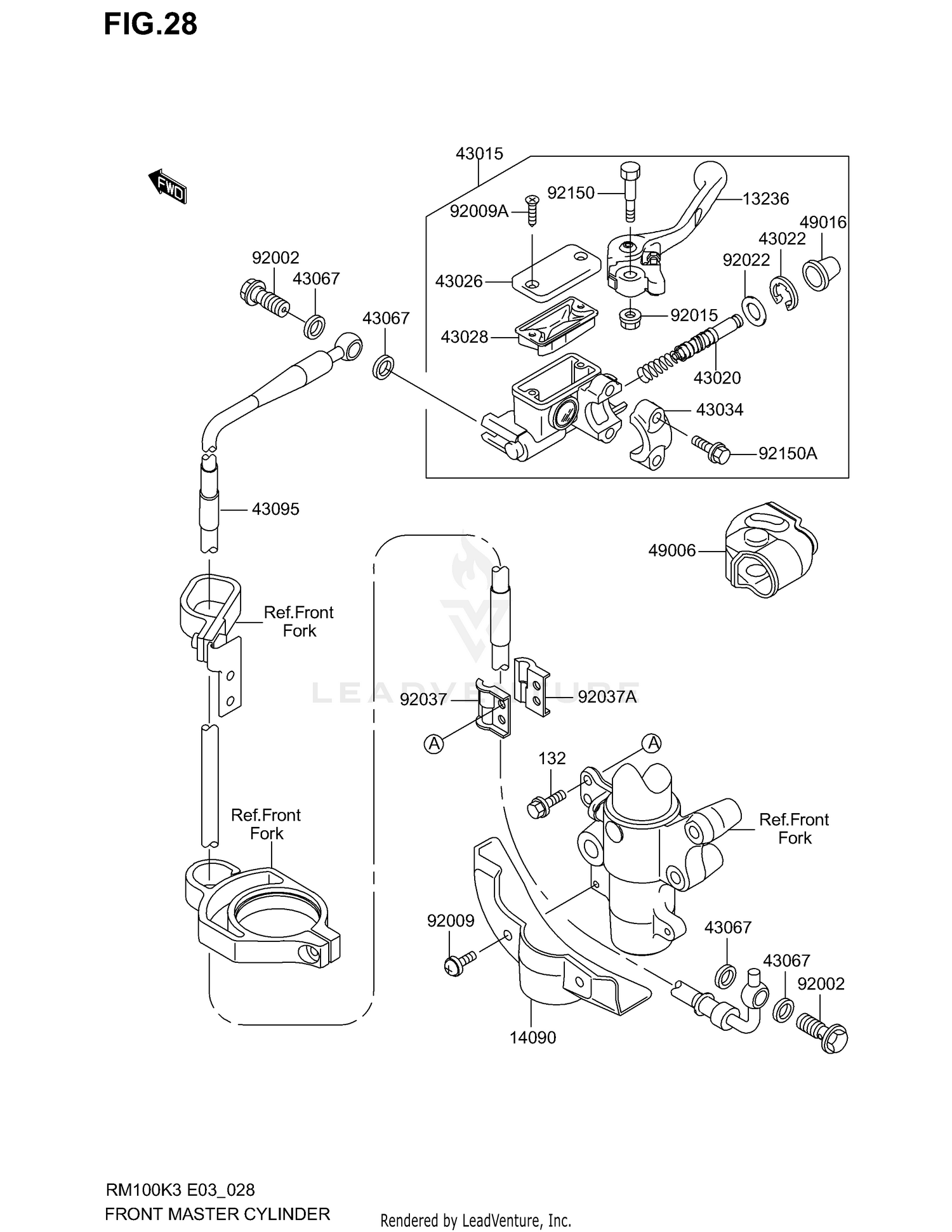

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13236
LEVER-COMP,FRONT BRAKE
K1323-61346
|
$40.68 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,BRAKE HOSE,WHITE
KK140-90186-0RZ
|
$5.47 | ||
|
Unavailable |
|||
|
#43015
CYLINDER ASSY,M
K4301-51674
Superseded by K4301-50167
|
$263.88 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON,BRAKE
K4302-01123
Superseded by K4302-00016
|
$52.27 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
K4302-21010
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
K4302-61075
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
K4302-81067
|
$17.54 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE
K4303-41110
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#43067
WASHER,SEAL,10.
KK430-67001
Superseded by K4909-10001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR
K4309-51091
|
$55.15 | ||
|
Unavailable |
|||
|
#49006
BOOT,FRONT BRAK
K4900-61344
Superseded by K4900-60078
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
K4901-61044
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL,L=23
K9200-21888
Superseded by K9215-30627
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
K9200-91287
Superseded by K9217-20401
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,4MM
K9200-91458
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
K9201-51528
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
K9202-21814
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,BRAKE HOSE,OUTSIDE
K9203-71362
|
$3.64 | ||
|
Unavailable |
|||
|
#92037A
CLAMP,BRAKE HOSE,INSIDE
K9203-71363
|
$3.71 | ||
|
Unavailable |
|||
|
#92150
BOLT,LEVER SET
K9215-01451
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
K9200-21894
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT FLANGED, S
KK132-G0616
Superseded by K132B-A0616
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
