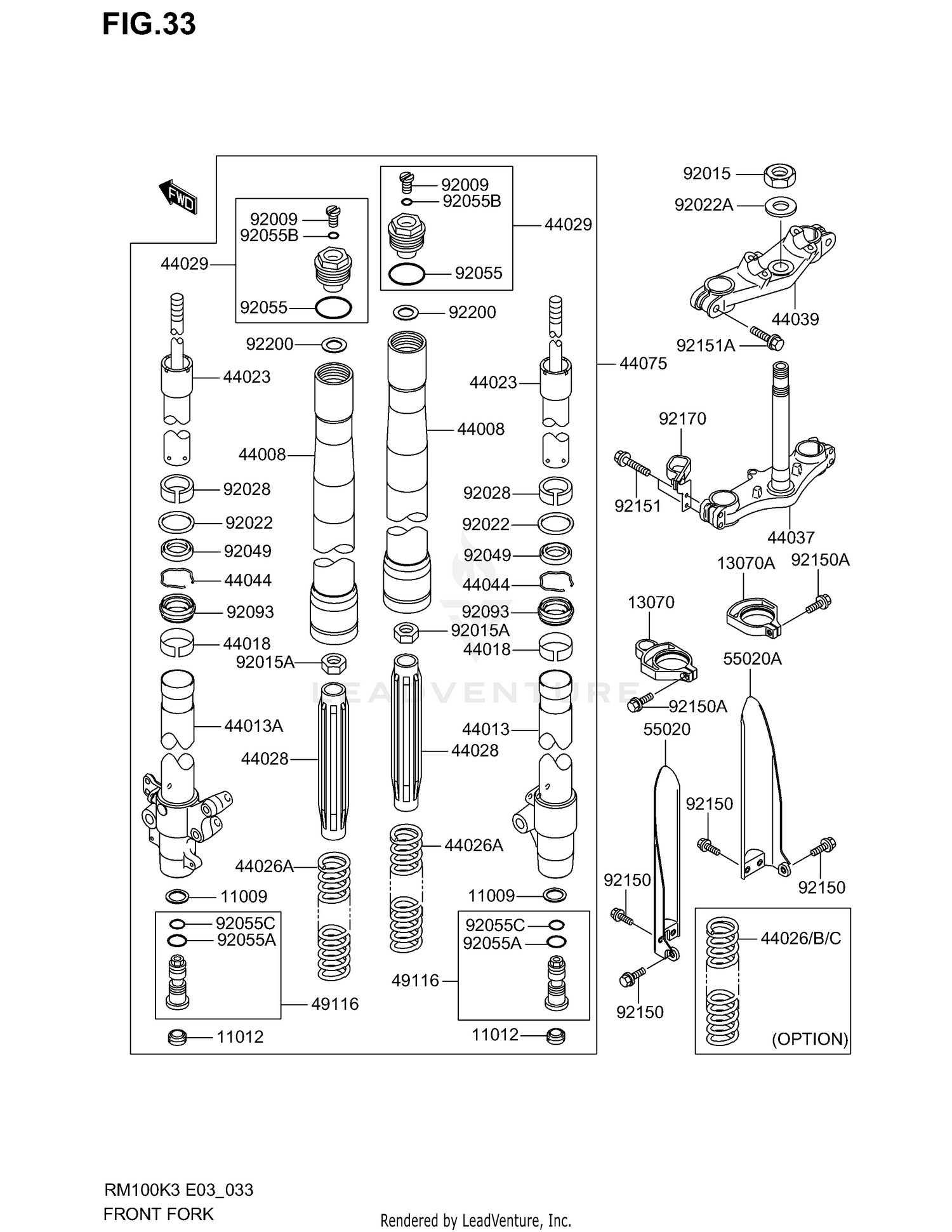

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER BOLT
K1100-91592
|
$2.58 | ||
|
Unavailable |
|||
|
#11012
CAP
K1101-21692
|
$3.01 | ||
|
Unavailable |
|||
|
#13070
GUIDE,PROTECTOR
KK130-70131-0RZ
Superseded by KK130-70004-9RZ
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#13070A
GUIDE,PROTECTOR
KK130-70131-1RZ
Superseded by KK130-70005-0RZ
|
$10.75 | ||
|
Unavailable |
|||
|
#44008
PIPE-FORK OUTER,BRONZE
KK440-08104-1JS
|
$241.95 | ||
|
Unavailable |
|||
|
#44013
PIPE-FORK INNER,RH
K4401-31442
|
$181.47 | ||
|
Unavailable |
|||
|
#44013A
PIPE-FORK INNER,LH
K4401-31484
|
$181.47 | ||
|
Unavailable |
|||
|
#44018
PISTON-FORK
K4401-81058
|
$12.50 | ||
|
Unavailable |
|||
|
#44023
CYLINDER-SET-FORK
K4402-31119
|
$196.59 | ||
|
Unavailable |
|||
|
#44026
SPRING-FRONT FORK,K=0.28
K4402-61633
|
$30.25 | ||
|
Unavailable |
|||
|
#44026A
SPRING-FRONT FORK,K=0.29
K4402-61634
|
$30.25 | ||
|
Unavailable |
|||
|
#44026B
SPRING-FRONT FORK,K=0.30
K4402-61635
|
$30.25 | ||
|
Unavailable |
|||
|
#44026C
SPRING-FRONT FORK,K=0.27
K4402-61671
|
$30.25 | ||
|
Unavailable |
|||
|
#44028
GUIDE-FORK SPRING
K4402-81090
|
$24.16 | ||
|
Unavailable |
|||
|
#44029
SEAT-FORK SPRING
K4402-91152
|
$34.35 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
K4403-71360
|
$193.08 | ||
|
Unavailable |
|||
|
#44039
HOLDER-FORK UPPER
K4403-91294
|
$73.34 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP,FORK OIL SEAL
K9203-31100
|
$6.89 | ||
|
Unavailable |
|||
|
#44075
DAMPER-SET-FORK,BRONZE
KK440-75113-1JS
|
$1,149.27 | ||
|
Unavailable |
|||
|
#49116
VALVE-ASSY,FORK
K4911-61153
|
$60.11 | ||
|
Unavailable |
|||
|
#55020
GUARD,FORK,LH,WHITE
KK550-20161-1RZ
|
$14.64 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FORK,RH,WHITE
KK550-20161-2RZ
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
K9200-91568
|
$3.13 | ||
|
Unavailable |
|||
|
#92015
NUT,STEERING ST
K9201-51653
Superseded by K9221-01521
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT
K9201-51839
|
$9.67 | ||
|
Unavailable |
|||
|
#92022
WASHER,FRONT FORK
K9202-21275
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,STEERING STEM
K9202-21873
|
$4.14 | ||
|
Unavailable |
|||
|
#92028
BUSHING
K9202-81656
|
$9.39 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
K9204-91394
|
$13.62 | ||
|
Unavailable |
|||
|
#92055
RING-O
K9205-51123
|
$2.79 | ||
|
Unavailable |
|||
|
#670
O RING,18MM
KK670-B2018
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#670A
O RING,3MM
KK670-B1503
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FORK VALVE
K9205-51502
|
$3.17 | ||
|
Unavailable |
|||
|
#92093
SEAL,FORK OUTER TUBE
K9209-31426
|
$15.98 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,6X14
K9215-01505
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,5X16
K9215-01802
|
$2.75 | ||
|
Unavailable |
|||
|
#92151
BOLT,FLANGED,8X40
K9215-11877
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,FLANGED,8X35
K9215-11878
|
$5.86 | ||
|
Unavailable |
|||
|
#92170
CLAMP
K9217-01810
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
K9220-01655
|
$2.14 | ||
|
Unavailable |
|||
