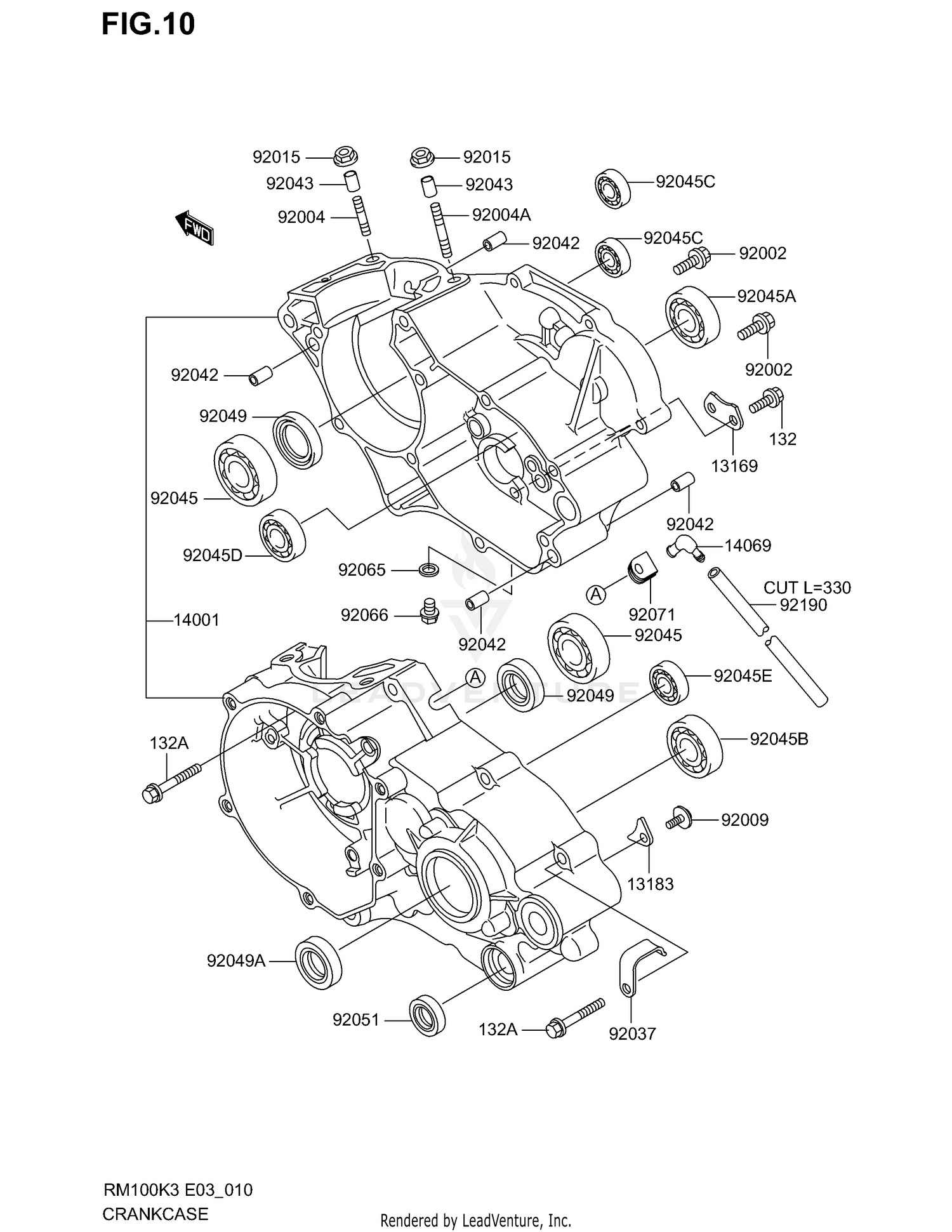

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13169
PLATE,CHANGE DRUM
KK131-69012
|
$7.26 | ||
|
Unavailable |
|||
|
#13183
PLATE
K1318-31182
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
K1400-11313
|
$473.59 | ||
|
Unavailable |
|||
|
#14069
BREATHER,CRANKC
K1406-91001
Superseded by K1406-91062
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X16
K9200-21659
|
$2.48 | ||
|
Unavailable |
|||
|
#92004
STUD,8X28.5
K9200-41252
|
$1.83 | ||
|
Unavailable |
|||
|
#92004A
STUD,8X37
K9200-41254
|
$1.41 | ||
|
Unavailable |
|||
|
#92009
SCREW,6X10
K9200-91563
|
$1.83 | ||
|
Unavailable |
|||
|
#92015
NUT,8MM
K9201-51143
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HARNESS
K9203-71318
|
$2.89 | ||
|
Unavailable |
|||
|
#92042
PIN,DOWEL,6.3X8X14
KK920-42007
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8.2X10X14
K9204-31264
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,R-6304C3
K9204-51059
|
$32.24 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,6004TMB
K9204-51118
|
$16.85 | ||
|
Unavailable |
|||
|
#92045B
BEARING-BALL,6204
K9204-51226
|
$18.35 | ||
|
Unavailable |
|||
|
#92045C
BEARING-BALL,626MC3
K9204-51304
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92045D
BEARING-BALL,TMB002
K9204-51360
|
$10.76 | ||
|
Unavailable |
|||
|
#92045E
BEARING-BALL,16101JRXC3
K9204-51450
|
$18.55 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,SD20407GS
K9204-91188
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TC25375
K9204-91292
|
$6.09 | ||
|
Unavailable |
|||
|
#92051
SEAL-OIL,TB13225.5
KK920-51005
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
KK920-65058
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN
K9206-61437
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,BREATHER
KK920-71042
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6X9X380
K9205-91868
|
$4.85 | ||
|
Unavailable |
|||
|
#92150
BOLT-FLANGED-SM
K9215-01599
Superseded by K132B-A0612
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT,FLANGED,SM
KK132-V0635
Superseded by K132B-A0635
|
$0.96 | ||
|
Unavailable |
|||
