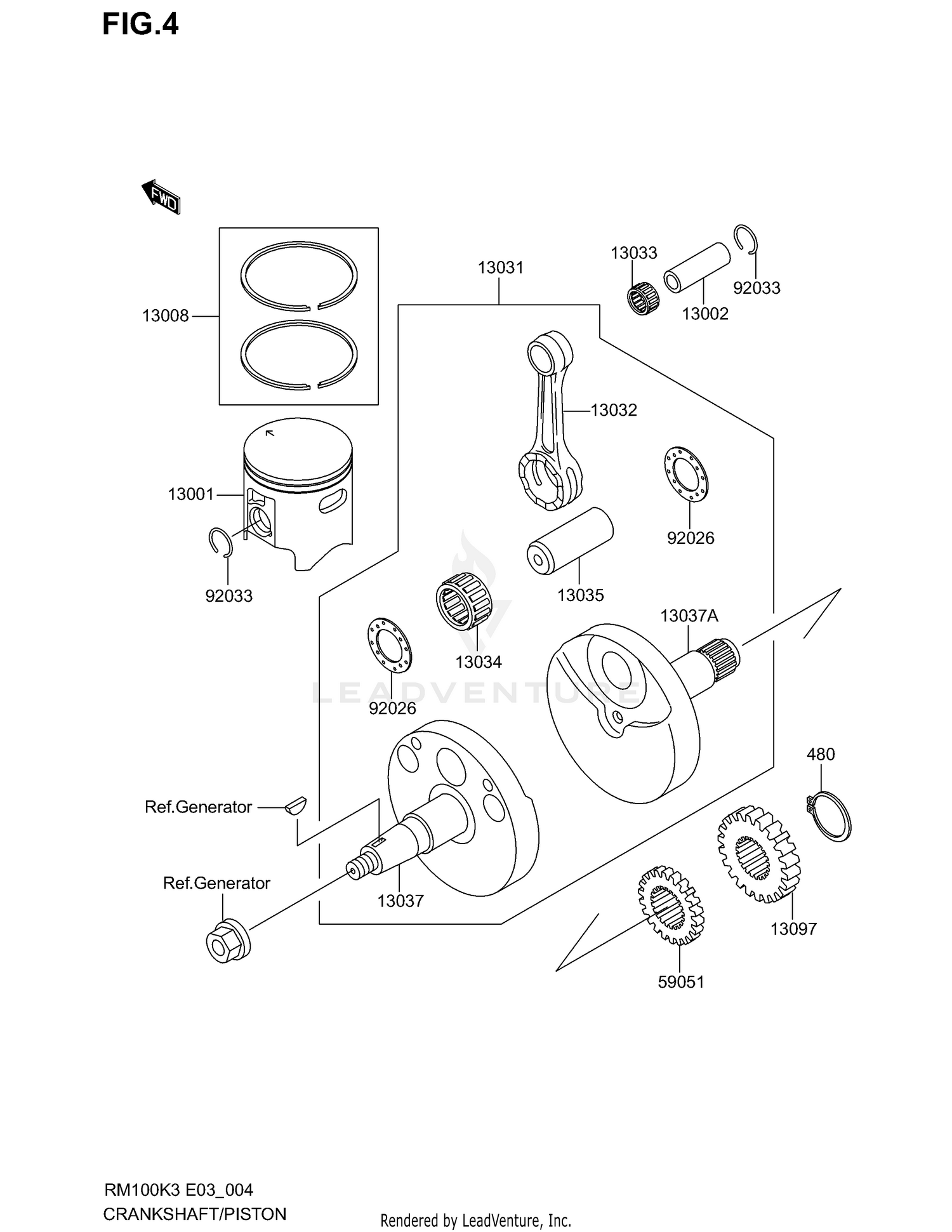

Crankshaft/piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13001
PISTON,ENGINE
K1300-11503
Superseded by K1300-10123
|
$56.14 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
K1300-21018
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON
K1300-81107
|
$32.31 | ||
|
Available to order. Add to View Price |
|||
|
#13031
CRANKSHAFT-COMP
K1303-11481
|
$302.53 | ||
|
Unavailable |
|||
|
#13032
ROD-CONNECTING
K1303-21230
|
$24.86 | ||
|
Unavailable |
|||
|
#13033
BRG,SML END,14X
K1303-31053
Superseded by K1303-31060
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#13034
BEARING-BIG END,B4
K1303-41104
|
$19.89 | ||
|
Unavailable |
|||
|
#13035
PIN-CRANK
KK130-35105-401
|
$16.82 | ||
|
Unavailable |
|||
|
#13037
CRANKSHAFT,LH
K1303-71634
|
$113.85 | ||
|
Unavailable |
|||
|
#13037A
CRANKSHAFT,RH
K1303-71635
|
$94.51 | ||
|
Unavailable |
|||
|
#13097
GEAR-PRIMARY SPUR,20T
K1309-71148
|
$47.36 | ||
|
Unavailable |
|||
|
#59051
GEAR-SPUR,PUMP,23T
K5905-11146
|
$16.05 | ||
|
Unavailable |
|||
|
#92026
SPACER,22.2X37X1.0
K9202-61136
|
$4.60 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP
K9203-31050
Superseded by K9203-30005
|
$1.21 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,16MM
KK480-J1600
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
