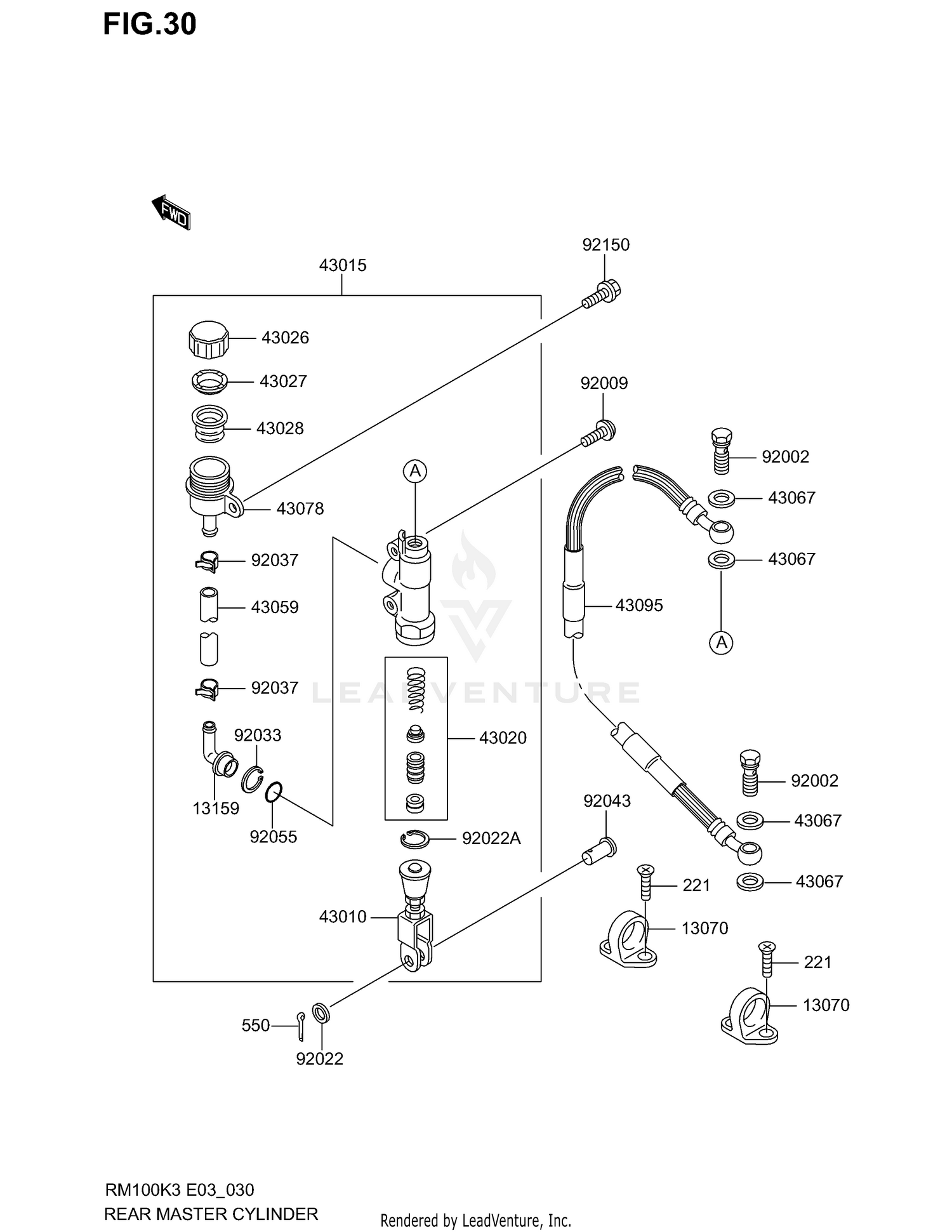

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13070
GUIDE,HOSE
K1307-01144
|
$4.21 | ||
|
Unavailable |
|||
|
#13159
CONNECTOR
K1315-91056
|
$6.36 | ||
|
Unavailable |
|||
|
#43010
ROD-ASSY-BRAKE
K4301-01079
|
$17.08 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,RR
K4301-51606
|
$117.95 | ||
|
Unavailable |
|||
|
#43020
PISTON-COMP-BRAKE
K4302-01094
|
$51.69 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
K4302-61058
|
$19.35 | ||
|
Unavailable |
|||
|
#43027
PLATE-DIAPHRAGM
K4302-71052
|
$2.56 | ||
|
Unavailable |
|||
|
#43028
DIAPHRAGM
K4302-81060
|
$9.33 | ||
|
Unavailable |
|||
|
#43059
HOSE-BRAKE
K4305-91363
|
$14.54 | ||
|
Unavailable |
|||
|
#43067
WASHER,SEAL,10.
KK430-67001
Superseded by K4909-10001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
K4307-81068
|
$14.97 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RR,L=567
K4309-51234
|
$36.49 | ||
|
Unavailable |
|||
|
#92002
BOLT,OIL,L=23
K9200-21888
Superseded by K9215-30627
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
K9200-91287
Superseded by K9217-20401
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.5X13X1
K9202-21028
|
$2.15 | ||
|
Unavailable |
|||
|
#92022A
WASHER,CIRCLIP
K9202-21601
Superseded by K9203-30079
|
$6.56 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.5MM
K9203-31186
|
$2.14 | ||
|
Unavailable |
|||
|
#92037
CLAMP
K9203-71710
|
$4.54 | ||
|
Unavailable |
|||
|
#92043
PIN
K9204-31039
|
$4.54 | ||
|
Unavailable |
|||
|
#92055
RING-O,MASTER CYLINDER
K9205-51251
|
$2.58 | ||
|
Unavailable |
|||
|
#92150
BOLT,FLANGED,6X14
K9215-01505
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#221
NO DESCRIPTION AVAILABLE
KK221-B0510
Superseded by K221A-A0510
|
$0.78 | ||
|
Unavailable |
|||
|
#550
PIN-COTTER,2.0X
KK550-D2015
Superseded by K550A-A2015
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
