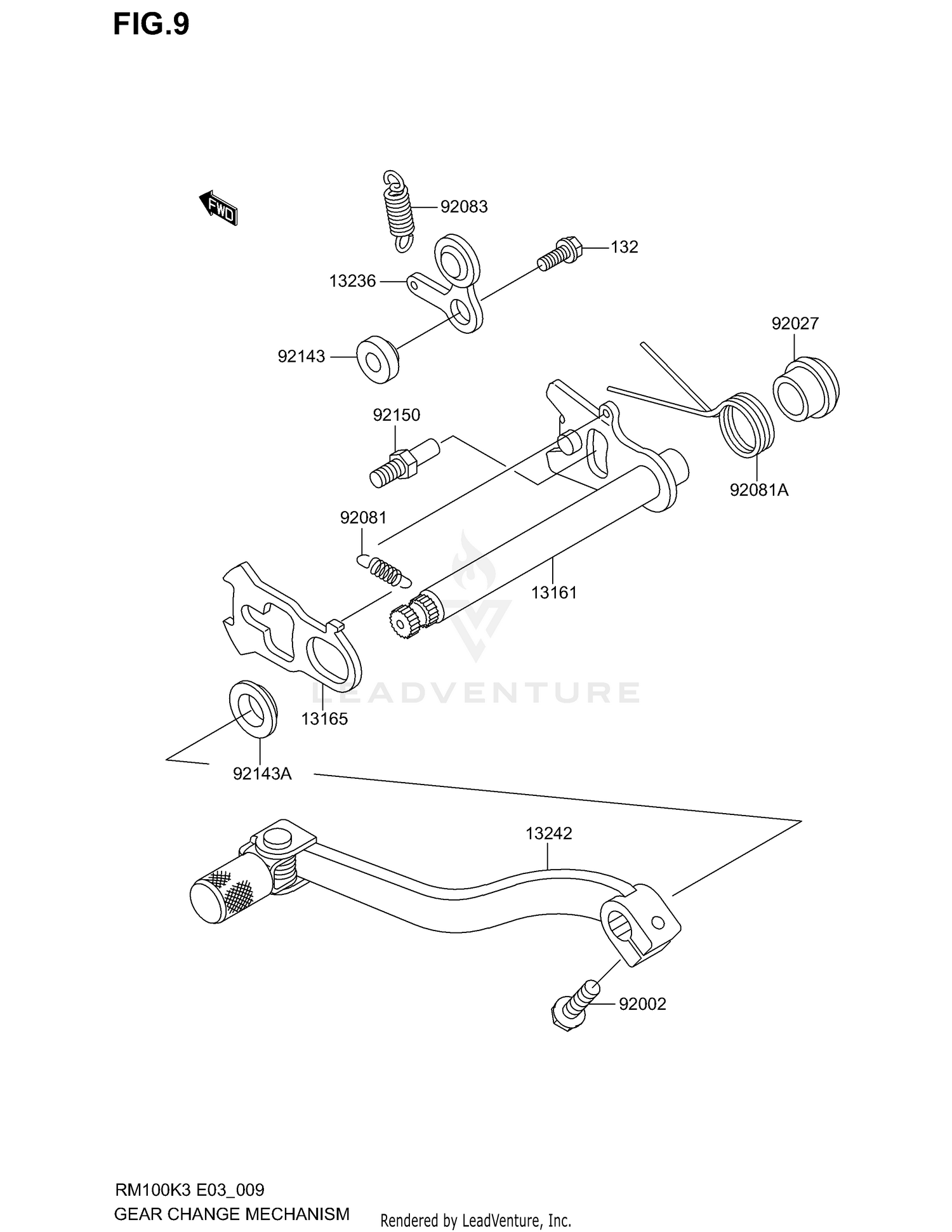

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13161
LEVER-COMP-CHANGE SHAFT
K1316-11126
|
$36.43 | ||
|
Unavailable |
|||
|
#13165
PAWL,CHANGE LEVER
K1316-51114
|
$6.38 | ||
|
Unavailable |
|||
|
#13236
LEVER-COMP,POSITION
K1323-61152
|
$7.29 | ||
|
Unavailable |
|||
|
#13242
LEVER-ASSY-CHANGE,PEDAL
K1324-21286
|
$42.08 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
K9200-21237
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
K9202-71940
|
$5.29 | ||
|
Unavailable |
|||
|
#92081
SPRING,CHANGE LEVER
KK920-81076
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,CHANGE SHAFT RETURN
K9208-11716
|
$5.74 | ||
|
Unavailable |
|||
|
#92083
SPRING,CHANGE DRUM LEVER
KK920-83012
|
$2.57 | ||
|
Unavailable |
|||
|
#92143
COLLAR
K9214-31055
|
$3.47 | ||
|
Unavailable |
|||
|
#92143A
COLLAR
K9214-31995
|
$2.19 | ||
|
Unavailable |
|||
|
#92150
BOLT,RETURN SPRING
K9215-01467
|
$3.86 | ||
|
Unavailable |
|||
|
#132
BOLT FLANGED, S
KK132-G0616
Superseded by K132B-A0616
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
