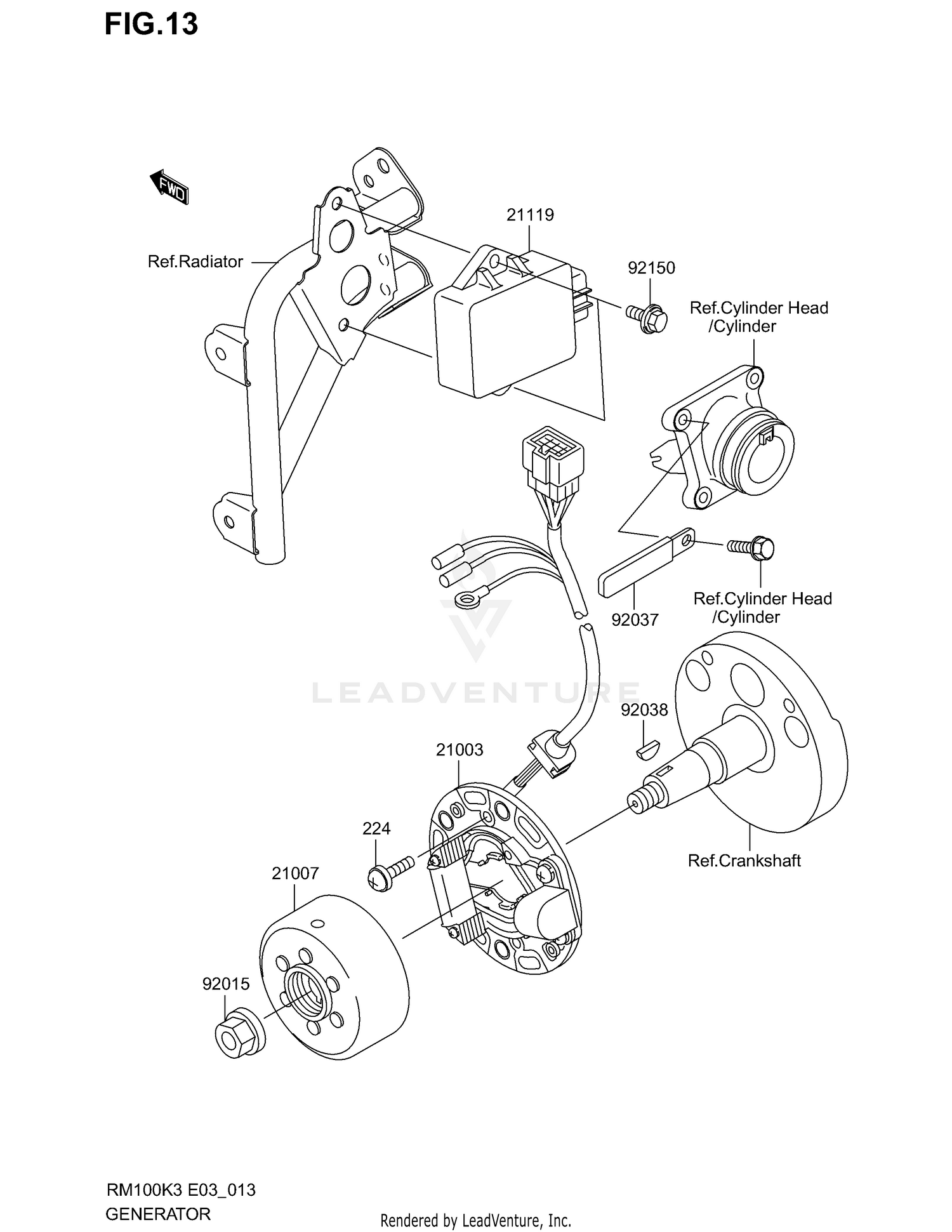

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#21003
STATOR
K2100-31366
|
$150.30 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,MAGNETO
K2100-71239
|
$215.49 | ||
|
Unavailable |
|||
|
#21119
IGNITER
K2111-91589
|
$183.98 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
KK920-15077
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,WIRING HARNESS,L=60
K9203-71069
|
$2.69 | ||
|
Unavailable |
|||
|
#92038
KEY,WOODRUFF
KK920-38001
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,6X16
K9215-01506
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
K9200-91333
|
$2.74 | ||
|
Unavailable |
|||
