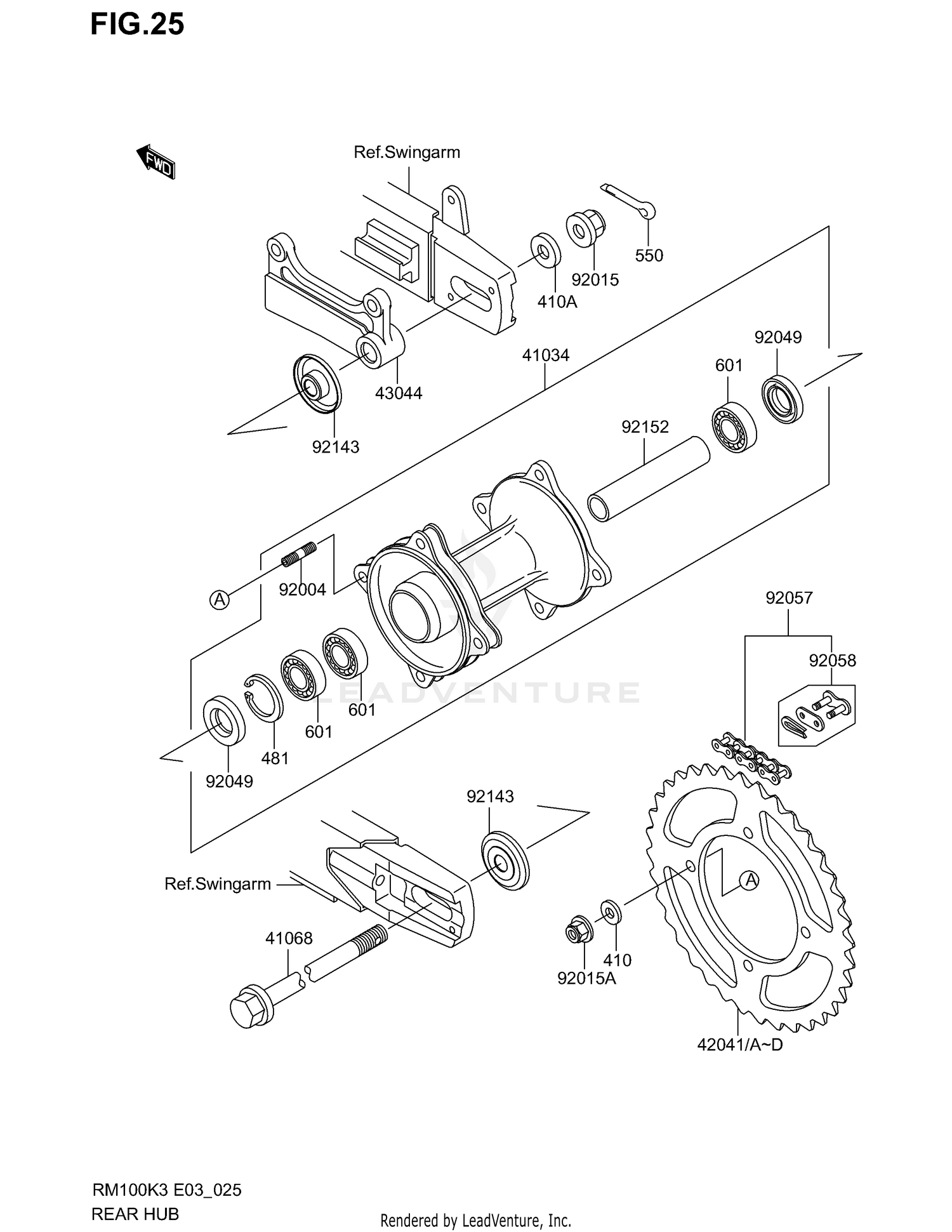

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,REAR BRAKE
K4103-41323
|
$207.66 | ||
|
Unavailable |
|||
|
#41068
AXLE,RR
K4106-81401
|
$16.67 | ||
|
Unavailable |
|||
|
#42041
SPROCKET-HUB,49T
K4204-11207
|
$48.15 | ||
|
Unavailable |
|||
|
#42041A
SPROCKET-HUB,50T
K4204-11228
|
$49.81 | ||
|
Unavailable |
|||
|
#42041B
SPROCKET-HUB,51T
K4204-11229
|
$49.81 | ||
|
Unavailable |
|||
|
#42041C
SPROCKET-HUB,52T
K4204-11245
|
$49.81 | ||
|
Unavailable |
|||
|
#42041D
SPROCKET-HUB,53T
K4204-11246
|
$54.79 | ||
|
Unavailable |
|||
|
#43044
HOLDER-COMP-CALIPER
K4304-41122
|
$30.83 | ||
|
Unavailable |
|||
|
#92004
STUD,8X16
K9200-41183
|
$2.65 | ||
|
Unavailable |
|||
|
#92015
NUT,FLANGED,14MM
K9201-51401
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,8MM
K9201-51432
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
K9204-91469
|
$6.20 | ||
|
Unavailable |
|||
|
#92057
CHAIN,DRIVE,DID420DS2X124L
K9205-71497
|
$67.22 | ||
|
Unavailable |
|||
|
#92058
JOINT-CHAIN,DRIVE
K9205-81086
|
$7.11 | ||
|
Unavailable |
|||
|
#92143
COLLAR,RR AXLE,L=12.5
K9214-31938
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR BRAKE DRUM,L=95
K9215-21090
|
$6.20 | ||
|
Unavailable |
|||
|
#410
WASHER,PLAIN,SM
KK410-B0800
Superseded by K410A-A0800
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#410A
WASHER-PLAIN-SMALL,14MM
KK410-B1400
|
$0.78 | ||
|
Unavailable |
|||
|
#481
CIRCLIP-TYPE-C,35MM
KK481-J3500
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.5X20
KK550-D2520
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL
KKK60-1B620-2UU
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
