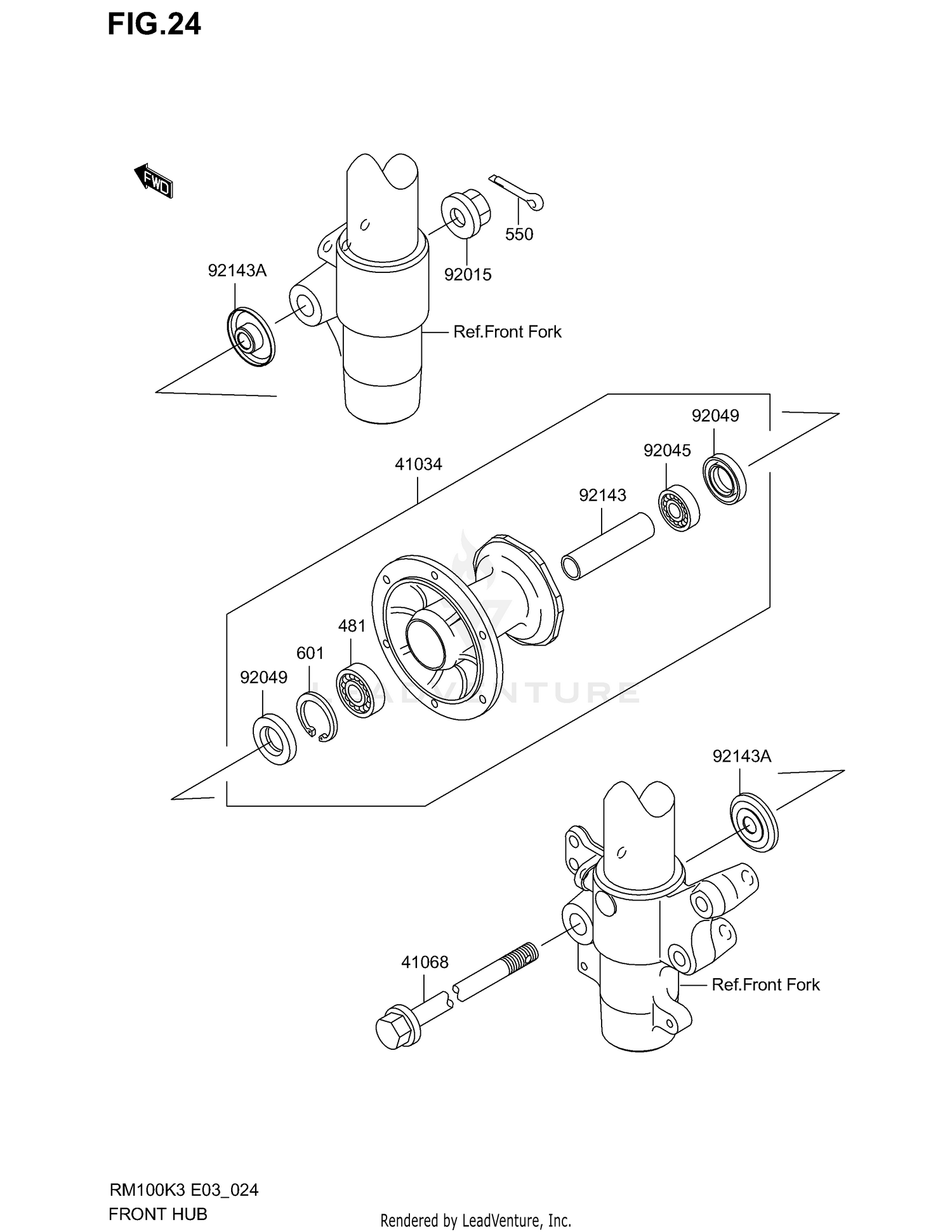

Front Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41034
DRUM-ASSY,FRONT BRAKE
K4103-41310
|
$161.21 | ||
|
Unavailable |
|||
|
#41068
AXLE,FR
K4106-81333
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,12MM
K9201-51433
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,TMB201LLUC3/2A
K9204-51062
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC20376.5
K9204-91257
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,FR BRAKE DRUM,L=76
K9214-31935
|
$3.13 | ||
|
Unavailable |
|||
|
#92143A
COLLAR,FR AXLE,L=12
K9214-31936
|
$9.50 | ||
|
Unavailable |
|||
|
#481
CIRCLIP-TYPE-C,37MM
KK481-J3700
|
$1.39 | ||
|
Unavailable |
|||
|
#550
PIN-COTTER,2.5X20
KK550-D2520
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6201UUC3
KKK60-1B630-1UU
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
