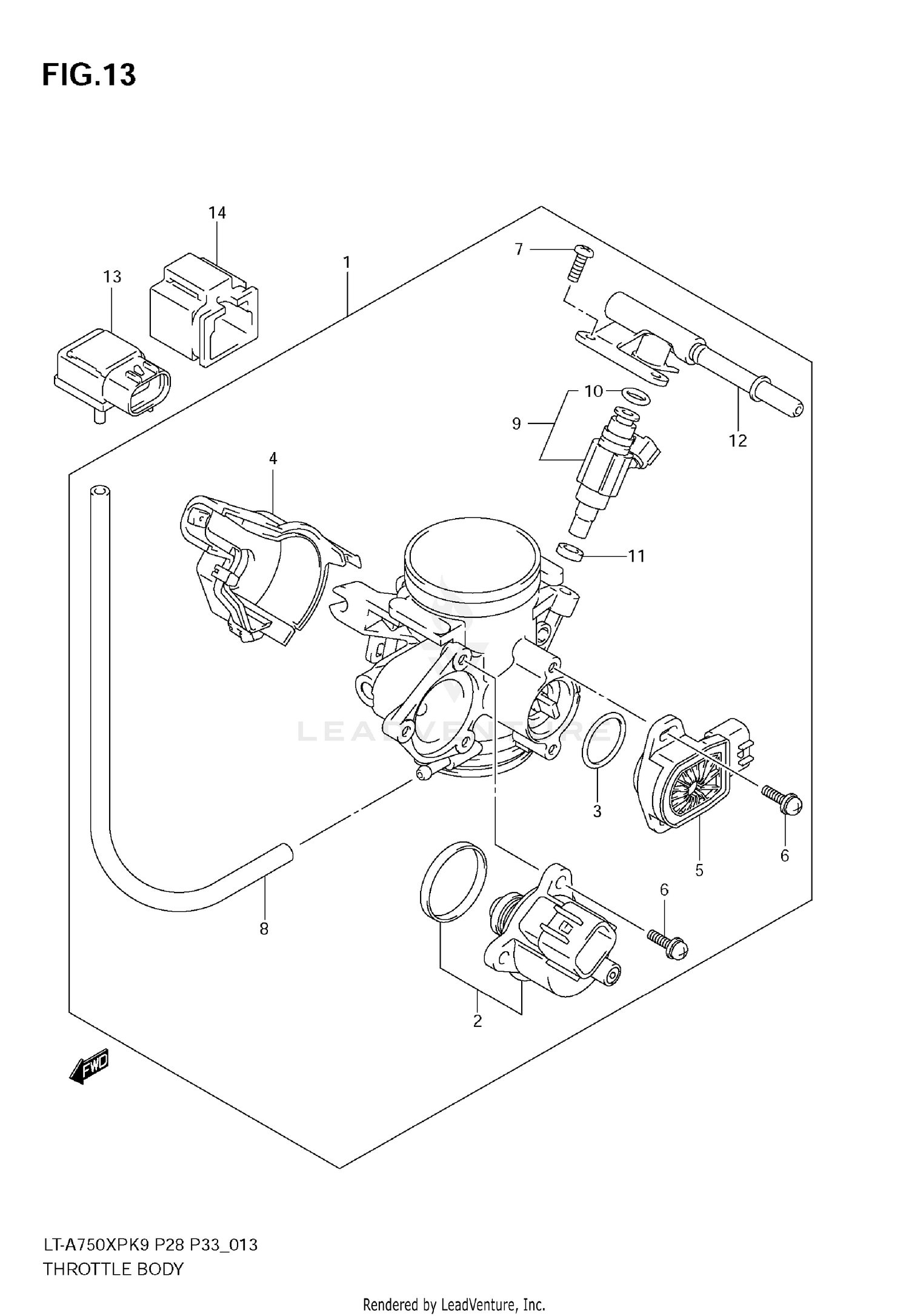

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROT
13400-31G00
Superseded by 13400-31G02
|
$996.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
.MOTOR, ISC STEPPING
13520-31G00
|
$263.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O RING
13575-31G00
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER
13578-31G00
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR ASSY
13580-31G00
|
$264.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
13601-20G00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
13602-06128
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE
13683-10F70
Superseded by 13683-10F71
|
$12.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
INJECTOR ASSY
15710-31G00
Superseded by 15710-31G01
|
$312.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
15717-16G00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL
15722-29G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
DELIVERY PIPE
15731-31G00
|
$238.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR, AIR PRESSURE
15620-10G00
|
$250.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, AIR PRESSURE
15625-10G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
