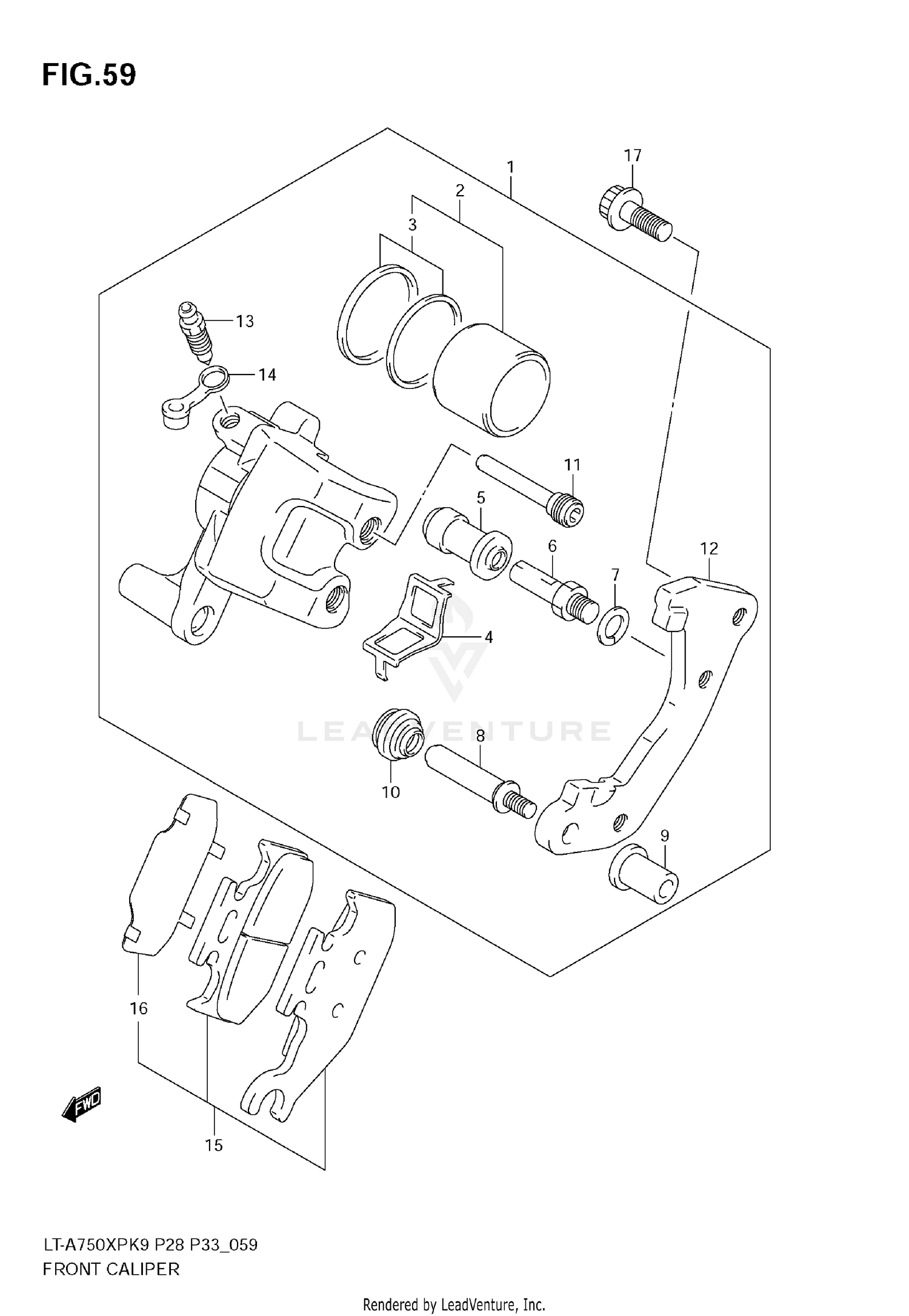

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-31G20-999
|
$377.23 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY, FRONT LH
59300-31G20-999
|
$363.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59300-13810
|
$42.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
..SEAL SET,PISTON
69100-13820
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, PAD
59315-27C00
|
$15.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
59386-13A00
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
59382-13A00
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
59314-13A00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
59387-00B20
|
$24.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
59388-00B20
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT
59303-14500
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PIN,HANGER
59145-39D00
|
$24.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BRACKET, RH
59151-31G20
|
$44.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BRACKET, LH
59351-31G20
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BLEEDER
59121-01A00
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP
59122-01A00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD & SHIM SET,R
59100-31870
|
$61.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD & SHIM SET,L
59100-31880
|
$61.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM
69132-28C00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (8X20)
09106-08176
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
