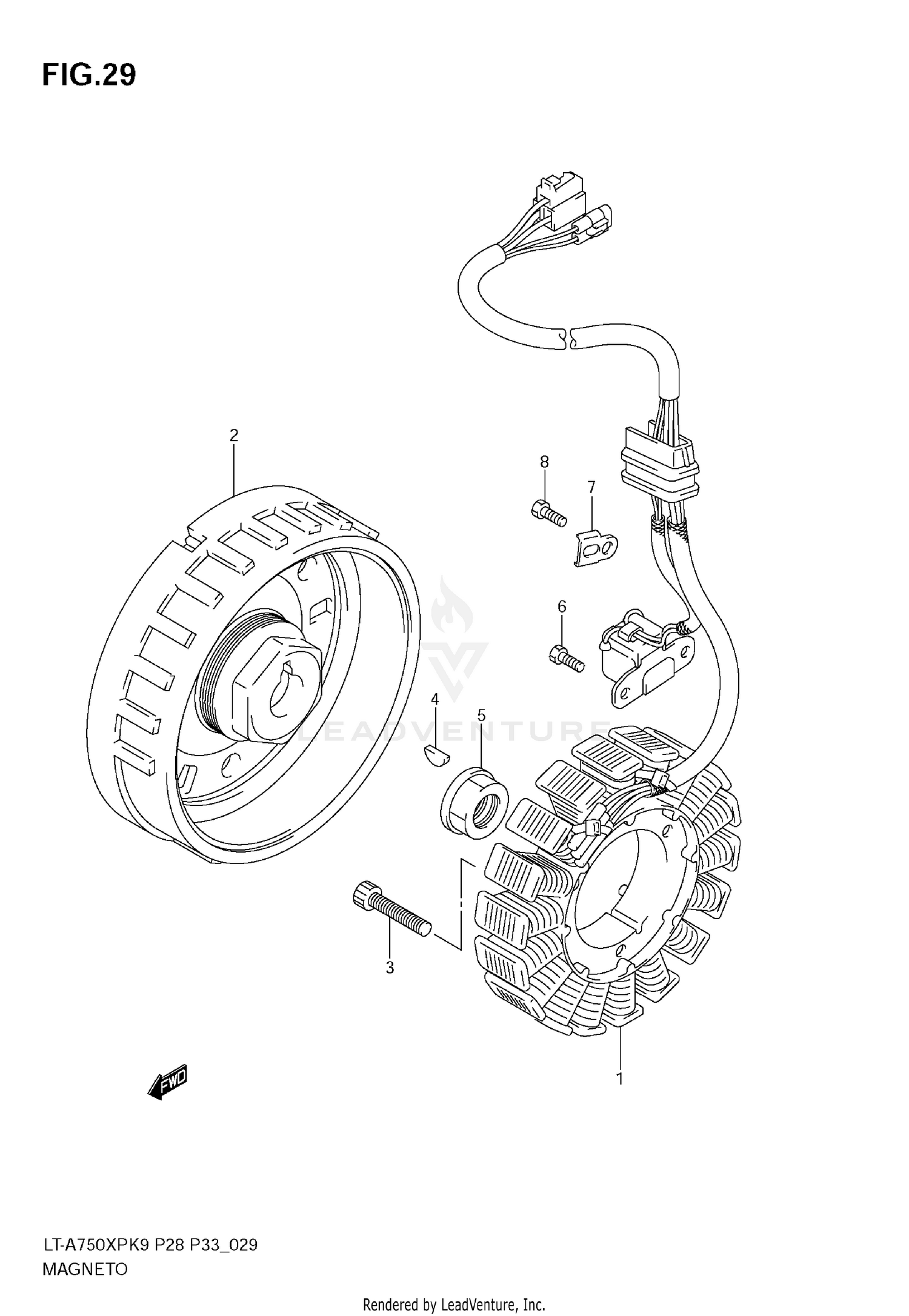

Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY, MAGNETO
32101-31G00
Superseded by 32101-31G02
|
$816.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY, MAGNETO
32102-31G10
|
$905.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, MAGNETO STATOR
07130-0630B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
KEY, MAGNETO ROTOR
08341-31059
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT,MAGNETO ROTOR
31792-11H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SENSOR (5X10)
09100-05019
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, MAGNETO LEAD
31497-45000
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, CLAMP NO.1 (5X10)
09100-05019
|
$2.11 | ||
|
Unavailable |
|||
