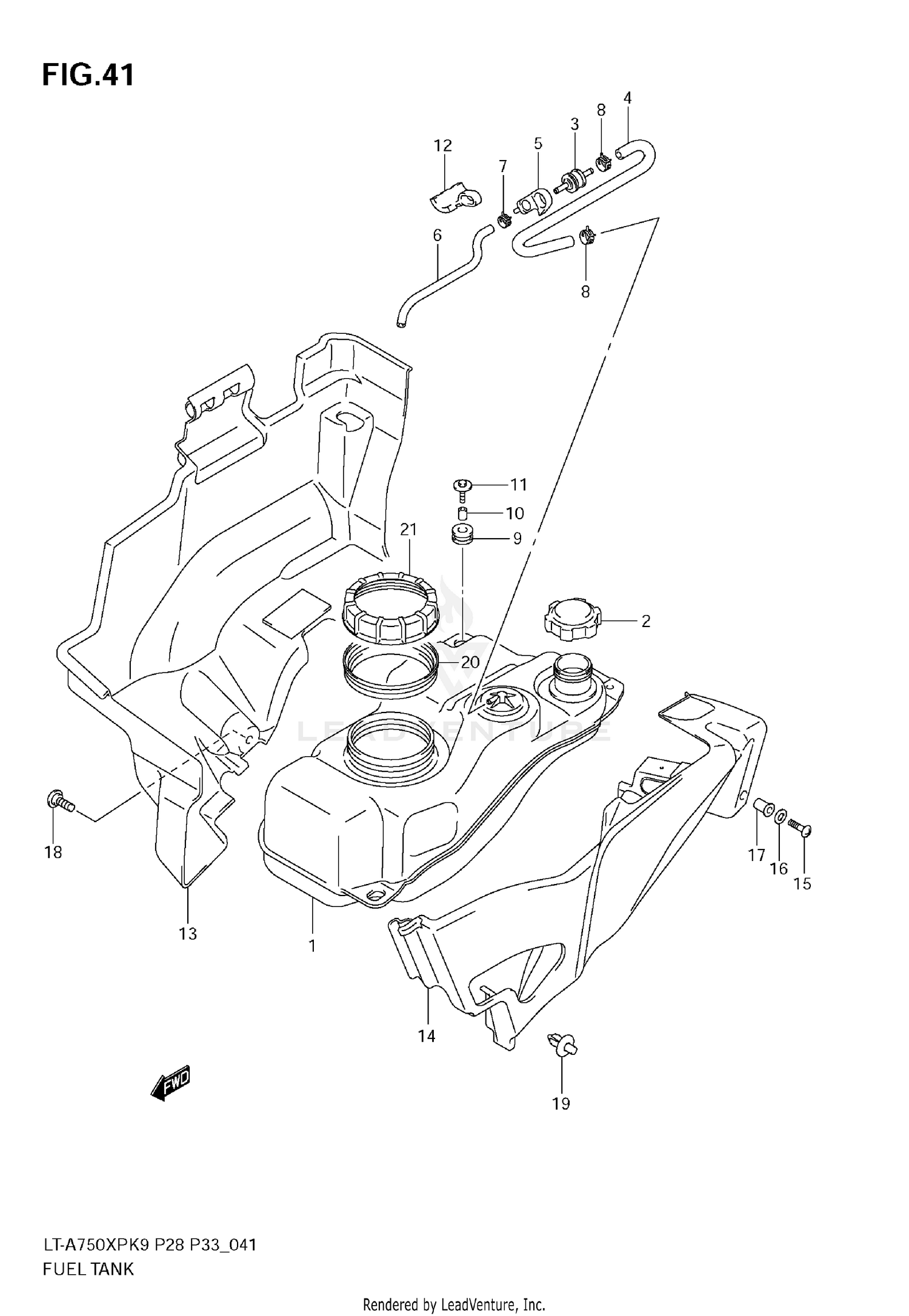

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL
44100-31G11
Superseded by 44100-31G21
|
$361.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY, FUEL TANK
44200-31G00
|
$67.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, CHECK
85451-75100
|
$62.12 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,CHECK VALV
44425-31G00
Superseded by 44425-31G01
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,CHECK VALVE
44881-31G00
Superseded by 44881-31G01
|
$4.97 | ||
|
Unavailable |
|||
|
#6
HOSE, TANK BREATHER
44434-31G10
Superseded by 44434-31G11
|
$50.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP
09401-08409
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
09401-09403
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION,REAR
44281-03G00
Superseded by 44281-03G01
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09180-06293
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
09116-06050
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, SIDE
44541-31G00
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,F/TANK LO
44390-31G21
Superseded by 44390-31G60
|
$122.79 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, OUTER
44391-31G00
|
$114.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02142-0520B
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER
09160-05046
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW
09139-06137
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
09409-07333
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PACKING,FUEL PU
44596-10G00
Superseded by 44596-10G01
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
RETAINER, FUEL PUMP
44597-10G00
|
$40.32 | ||
|
Available to order. Add to View Price |
|||
