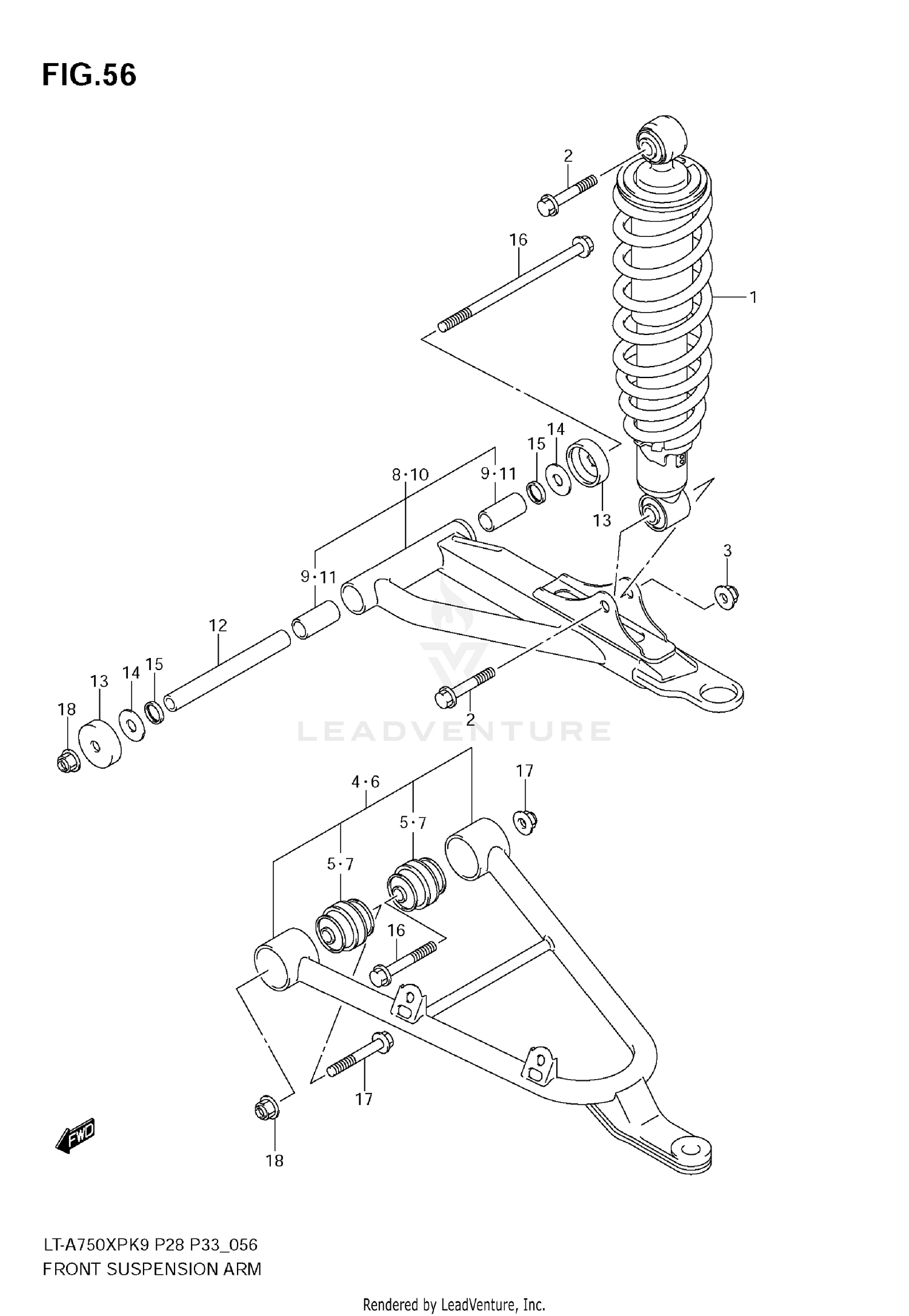

Front Suspension Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABSORBER ASSY, FRONT SHOCK
52100-31G30-019
|
$212.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (10X48)
09103-10126
|
$5.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
ARM SET, SUSPENSION LOWER RH
52410-31830
|
$355.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
ARM SET, SUSPENSION LOWER LH
52420-31830
|
$355.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH (10X35.1X38)
09319-10055
|
$26.88 | ||
|
Unavailable |
|||
|
#8
ARM SET,SUSPENSION UPR,R
52430-31840
Superseded by 52430-34810
|
$182.52 | ||
|
Unavailable |
|||
|
#9
.BUSH
51236-31G00
|
$22.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM SET,SUSPENSION UPR,L
52440-31840
Superseded by 52440-34810
|
$182.52 | ||
|
Unavailable |
|||
|
#11
.BUSH
51236-31G00
|
$22.35 | ||
|
Unavailable |
|||
|
#12
SPACER, PIVOT
52455-31G10
|
$36.14 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, FR SUSPENSION ARM PIVOT
51255-31G10
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08211-10281
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
52454-45G00
|
$9.88 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SUSPENSION UPPER (10X160)
09103-10389
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SUSPENSION LOWER (10X57)
09103-10255
|
$8.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-10115
|
$4.46 | ||
|
Unavailable |
|||
