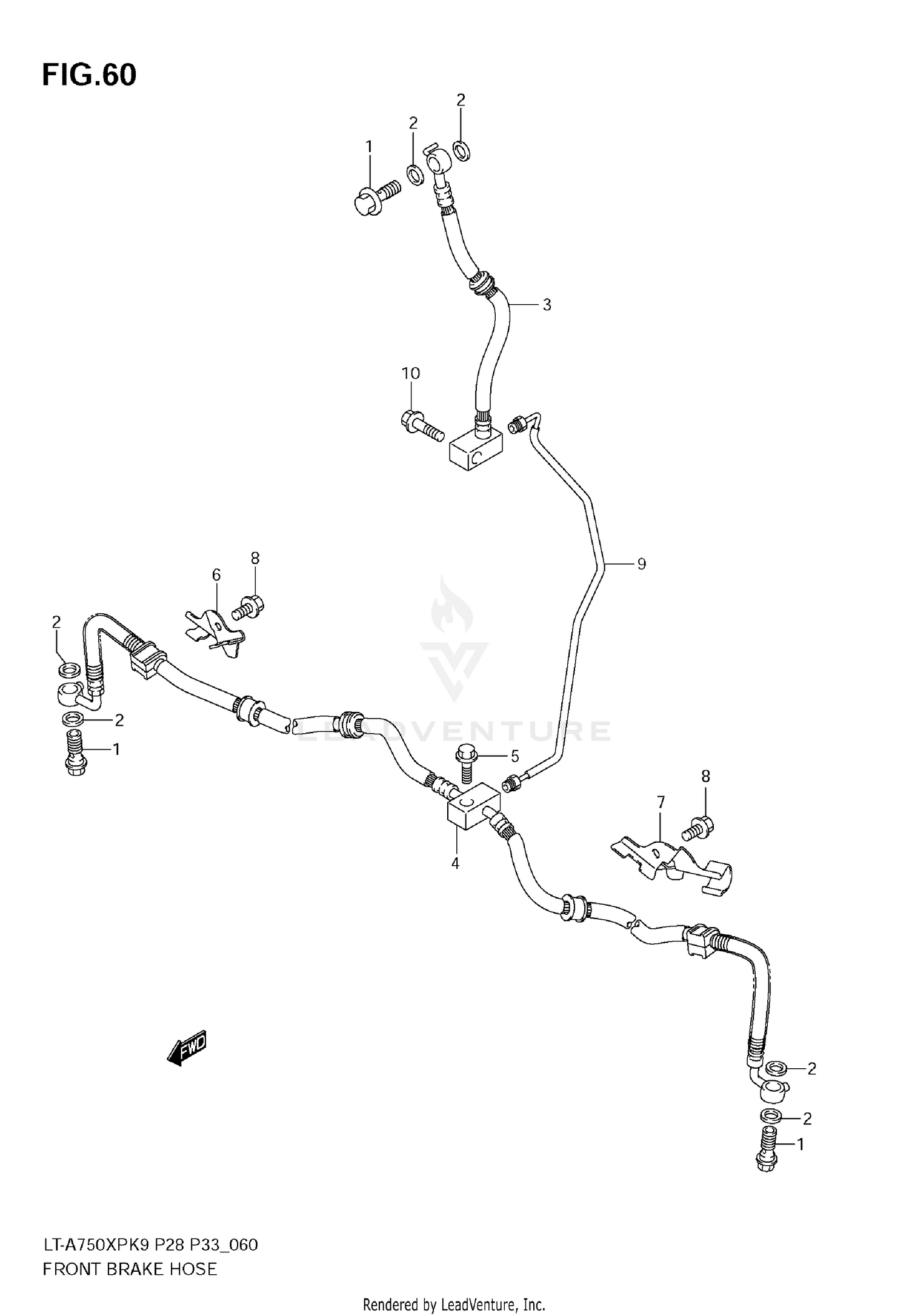

Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, UNION
09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE,FRONT BRAKE NO.1
59480-31G30
Superseded by 59480-31G31
|
$98.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, FRONT BRAKE NO.2 RH
59240-31G30
Superseded by 59240-31G31
|
$256.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FR BRAKE HOSE NO.2
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, FR BRAKE HOSE NO.2 RH
59261-31G00
|
|||
|
Unavailable |
|||
|
#7
CLAMP, FR BRAKE HOSE NO.2 LH
59271-31G00
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, FRONT BRAKE
59250-31G10
|
$14.10 | ||
|
Unavailable |
|||
|
#10
BOLT, FR BRAKE HOSE NO.1
01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
