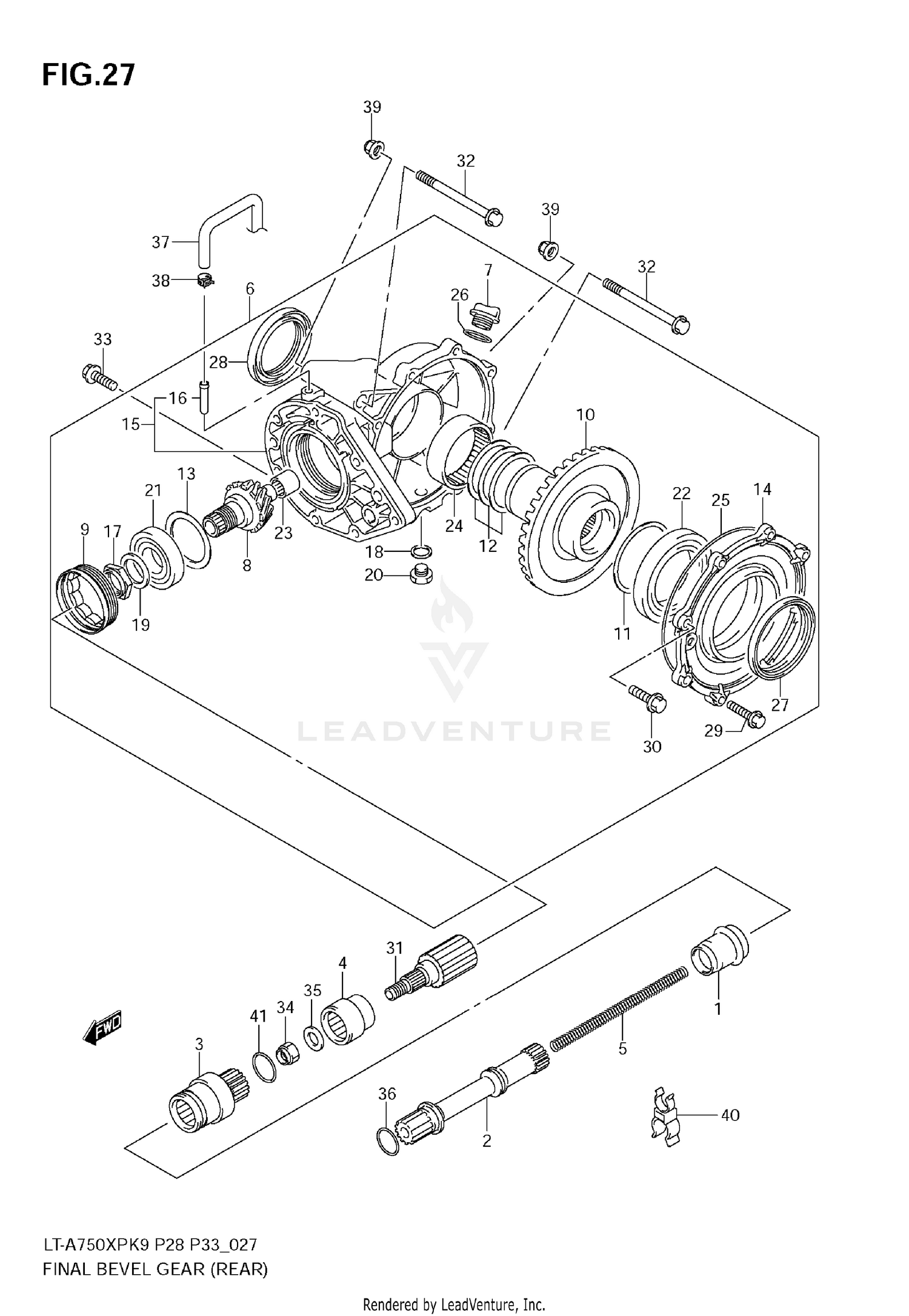

Final Bevel Gear (rear) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT,JOINT SHAFT
27153-31G40
Superseded by 27153-31G42
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, REAR PROPELLER
27155-31G20
Superseded by 27155-31G30
|
$104.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, REAR PROPELLER
27157-31G60
|
$65.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
COUPLING, RR PROP SHAFT
27171-31G60
|
$136.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING,REAR PROPELLER SHAFT
27192-31G10
|
$7.94 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE ASSY, REAR FINAL GEAR
27410-31G50
|
$1,591.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PLUG
09259-20008-XC0
|
$9.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GEAR, RR FINAL DRIVE BEVEL
27311-31G50
|
$326.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
.STOPPER,FINAL DRIVE BEARING
27312-38F00
|
$59.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
.GEAR, RR FINAL DRIVEN (NT:36
27320-31G00
|
$357.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SHIM SET, FINAL DRIVEN LH
27326-31810
|
$47.28 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SHIM SET, FINAL DRIVEN RH
27327-31810
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SHIM SET,FINAL DRIVE GEAR (T
27445-24810
|
$31.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CASE, REAR FINAL GEAR LH
27451-31G10
|
$100.30 | ||
|
Unavailable |
|||
|
#15
.CASE, REAR FINAL GEAR RH
27460-31G10
|
$300.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
UNION, CASE BREATHER
09364-08016
|
$4.34 | ||
|
Unavailable |
|||
|
#17
NUT, REAR FINAL DRIVE
09140-28006
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#19
WASHER, RR FINAL DR GR
09181-28195
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, OIL DRAIN
09247-14013
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING, FINAL DRIVE
09262-28023
|
$138.97 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, FINAL DRIVEN, L
09262-65001
|
$152.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
.BEARING (20X34X18)
09263-20062
|
$51.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, FINAL DRIVEN, R
09263-55003
|
$117.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING, BEARING CASE, L
09280-00029
|
$40.01 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING, GEAR OIL FILLER
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SEAL, FINAL DRIVEN GEAR, L
09283-59001
|
$33.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL, FINAL DRIVEN GEAR, R
09283-59001
|
$33.62 | ||
|
Unavailable |
|||
|
#29
.BOLT (8X35)
09103-08357
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, RR FINAL GEAR CASE
09103-10294
|
|||
|
Unavailable |
|||
|
#31
SHAFT, RR FINAL DRIVE
27594-31G60
Superseded by 27594-31G80
|
$217.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, REAR FINAL GEAR
09103-10148
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, REAR FINAL GEAR
09103-10405
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, RR PROP SHAFT COUPLER
09159-16003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, REAR PROP SHAFT
09160-16026
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
O RING (D:3.1,ID:19.4)
09280-20002
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE, BREATHER
27491-31G00
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
09401-10403
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, REAR FINAL GEAR
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP, BREATHER HOSE
09408-00235
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
O RING (D:3.1,ID:34.4)
09280-35008
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
