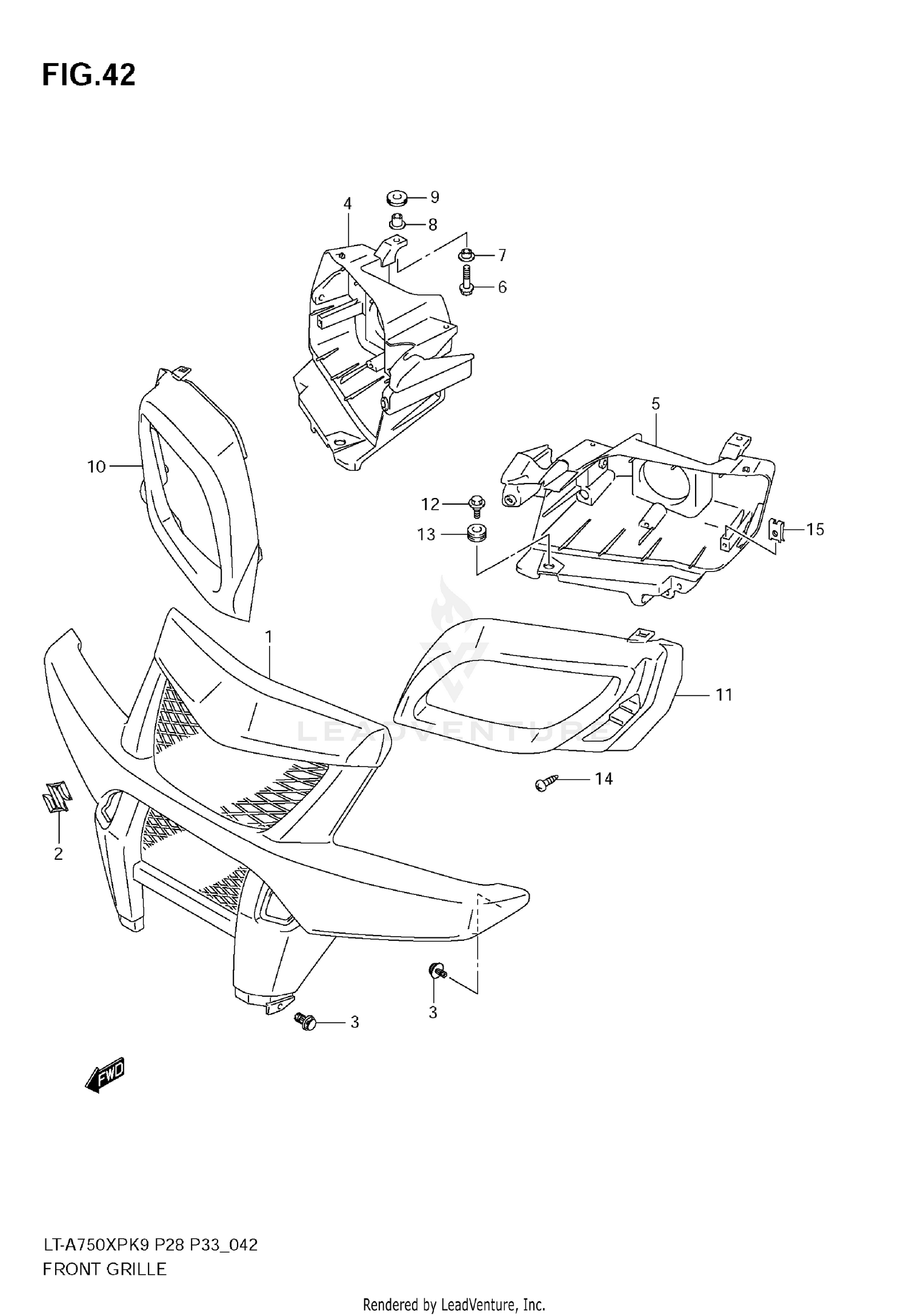

Front Grille Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRILLE,FRONT
53118-31G00-291
Superseded by 53118-31G05-291
|
$214.40 | ||
|
Unavailable |
|||
|
#2
EMBLEM, "S"
68151-03G40
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, FRONT
09409-08335
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOUSING,FRONT L
53281-31G00-291
Superseded by 53281-31G04-291
|
$96.58 | ||
|
Unavailable |
|||
|
#4
HOUSING,FRONT L
53281-31G10-291
Superseded by 53281-31G04-291
|
$96.58 | ||
|
Unavailable |
|||
|
#5
HOUSING, FRONT LH (BLACK)
53284-31G00-291
Superseded by 53284-31G01-291
|
$37.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOUSING, FRONT LH (BLACK)
53284-31G10-291
|
$13.18 | ||
|
Unavailable |
|||
|
#6
BOLT
01547-0630B
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER (6.1X17.0X4.8)
09169-06073
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
09169-06074
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION (11.5X32X12.2)
09320-11021
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,FRONT LAM
53282-31G00-291
Superseded by 53282-31G04-291
|
$19.65 | ||
|
Unavailable |
|||
|
#11
COVER,FRONT LAM
53283-31G00-291
Superseded by 53283-31G03-291
|
$39.14 | ||
|
Unavailable |
|||
|
#12
BOLT
09139-06118
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-10501
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
03241-0516B
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
