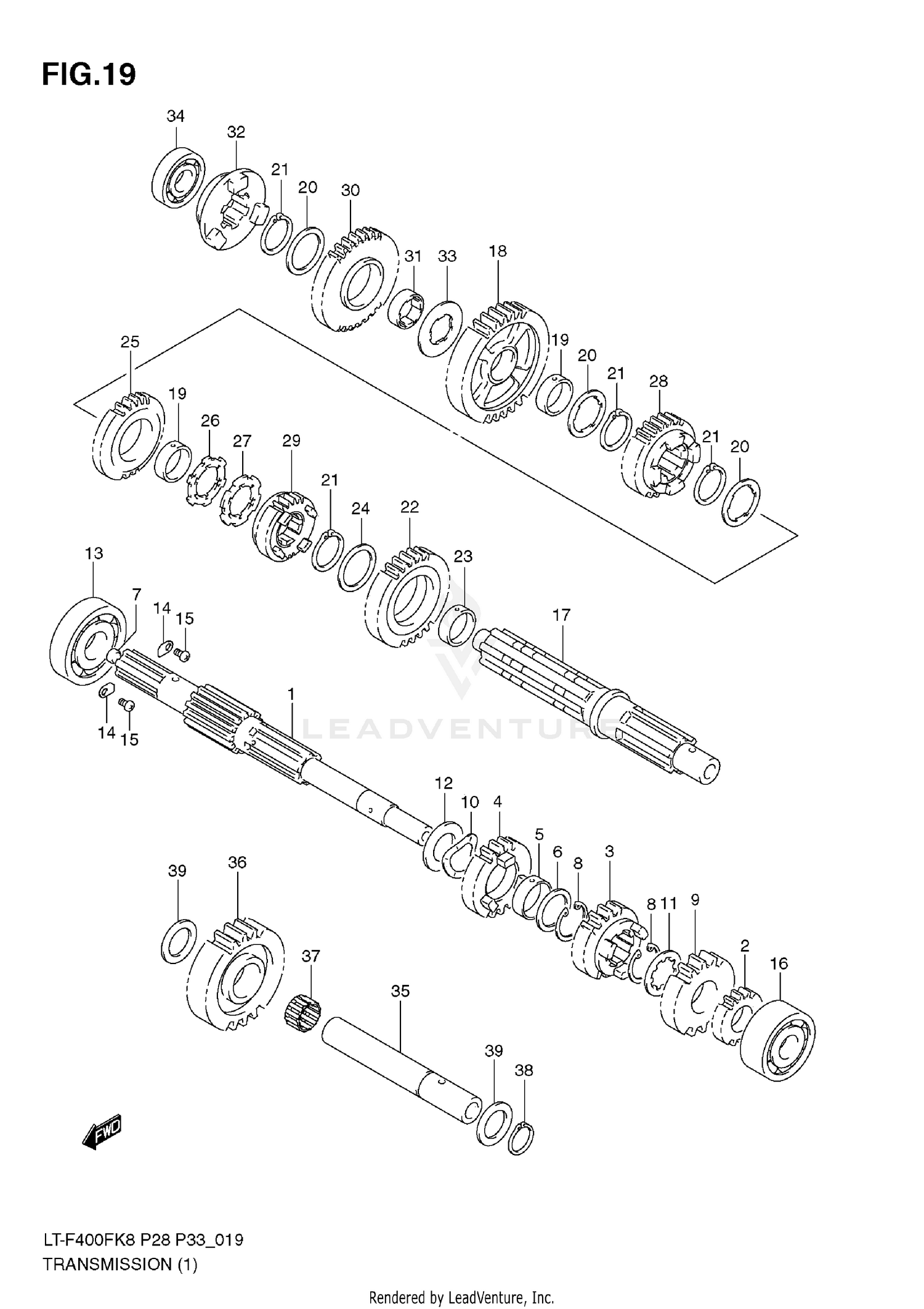

Transmission (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:12)
24121-38F51
|
$315.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:15)
24221-18A00
|
$130.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,3RD DRIVE
24231-18A02
Superseded by 24231-18A03
|
$134.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR,4TH DRIVE
24241-18A10
Superseded by 24241-18A11
|
$108.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM (22X30X1)
09181-22167
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG
09241-10003
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP, 4TH/5TH
09380-22006
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 5TH DRIVE (NT:23)
24251-18A03
|
$122.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, 4TH DRIVE, R
09164-26002
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK WASHER
09167-22011
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (22X38X1)
09181-22015
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RH (22X50X14)
09262-22018
|
$27.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
RETAINER, CNTR SHAFT BRG
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW (6X12)
09125-06110
|
$2.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BEARING (17X40X17.5)
09267-17002
|
$98.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
DRIVE SHAFT
24131-38F50
|
$267.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 1ST DRIVEN (NT:37)
24311-18A02
|
$109.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH
24332-24510
|
$21.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
09167-25016
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 2ND DRIVEN (NT:29)
24321-18A01
|
$127.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH (25X29X8)
09300-25020
|
$18.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
08211-25351
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 3RD DRIVEN (NT:25)
24331-19B01
|
$122.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCK WASHER
09169-25001
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,LOCK (25.1X41X1.5)
09167-25013
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 4TH DRIVEN (NT:23)
24341-18A02
|
$124.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 5TH DRIVEN (NT:21)
24351-18A02
|
$124.92 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, REVERSE DRIVEN (NT:34)
24571-38F60
|
$112.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH
24333-18A00
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#32
DOG, REVERSE
24581-38F60
|
$79.55 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER (25.1X40X1.5)
09167-25017
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING (17X35X10)
09262-17026
|
$40.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
SHAFT, REVERSE IDLE
24551-38F70
|
$38.20 | ||
|
Available to order. Add to View Price |
|||
|
#36
GEAR, REVERSE IDLE (NT:29)
24561-05G02
|
$49.91 | ||
|
Unavailable |
|||
|
#37
BEARING (17X21X12.8)
09263-17001
|
$23.71 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
08331-3117A
Superseded by 08331-31179
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#39
SHIM (17X28X1)
09181-17195
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
