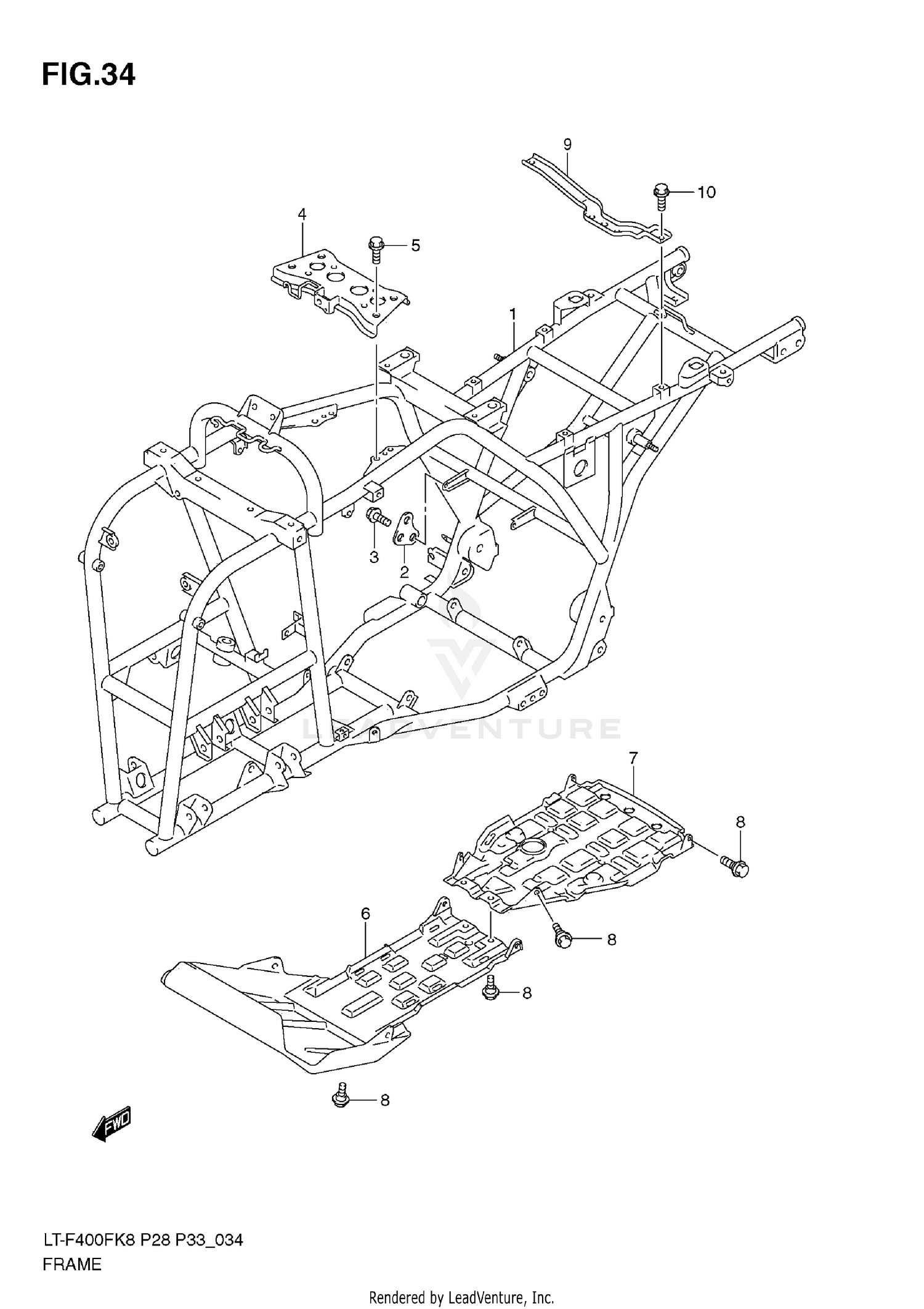

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-27H00-019
|
$1,339.10 | ||
|
Available to order. Add to View Price |
|||
|
#1
FRAME (BLACK)
41100-27H10-019
Superseded by 41100-27H11-019
|
$1,723.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE,ENG MTG REAR,R
41981-38FA0
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
09103-08441
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, MOUNT UPPER
41990-27H00
|
$15.31 | ||
|
Unavailable |
|||
|
#4
PLATE, MOUNT UPPER
41990-27H10
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09103-08441
|
$1.72 | ||
|
Unavailable |
|||
|
#6
PROTECTOR,FRONT
42521-27H00
Superseded by 42521-27H00-291
|
$149.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR,ENGINE
42511-38F02
Superseded by 42511-38F04
|
$35.99 | ||
|
Unavailable |
|||
|
#8
BOLT (6X12)
09111-06063
Superseded by 09111-06085
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE,BATTERY
41561-27H00
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-0616A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
