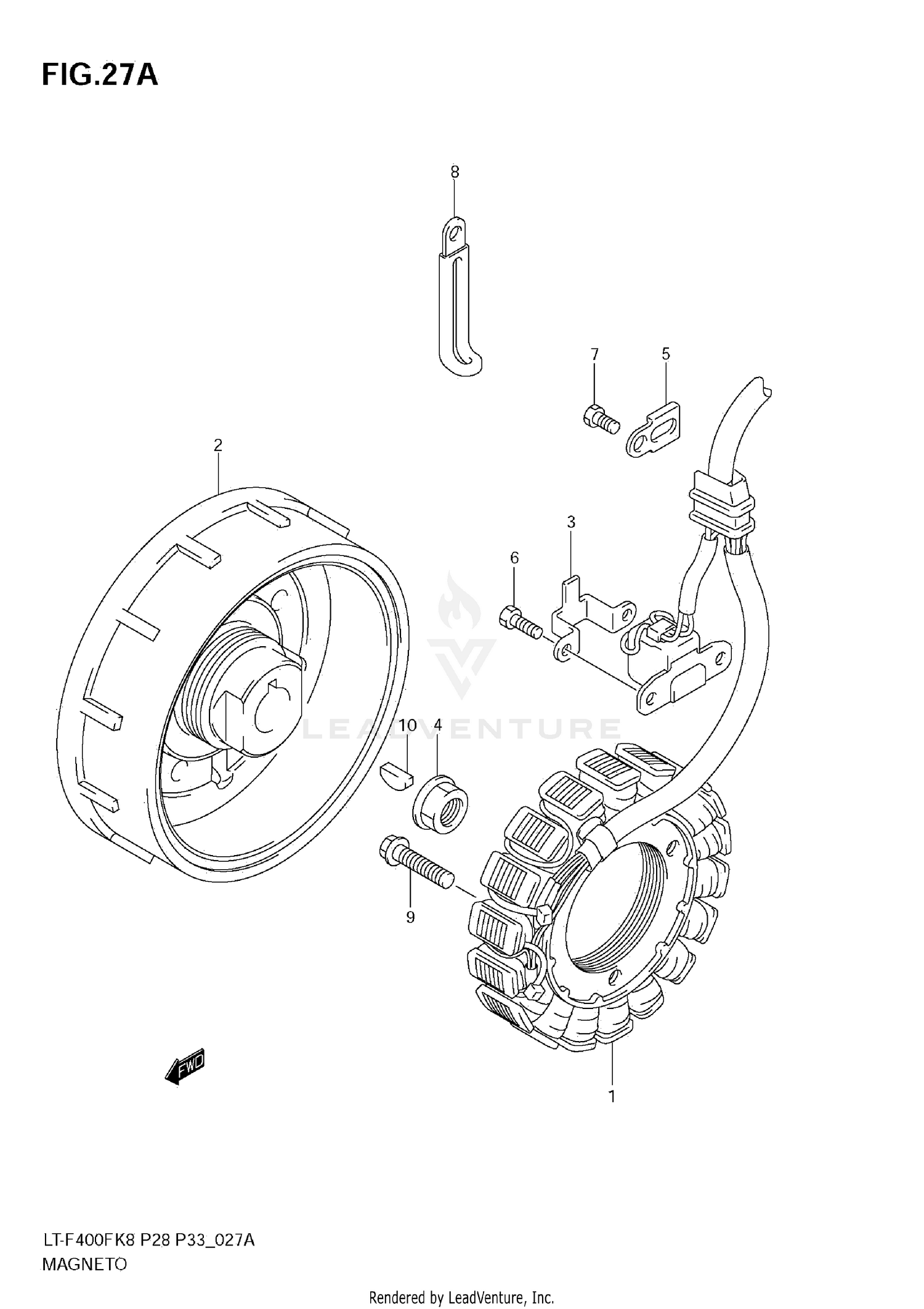

Magneto (model L0) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32101-27H10
|
$860.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY
32102-27H10
|
$879.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP, MAGNETO LEAD NO.1
31497-45000
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT,MAGNETO ROTOR
31792-11H00
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, MAGNETO LEAD NO.2
32371-32E00
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SENSOR (5X10)
09100-05019
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CLAMP NO.2 (5X10)
09100-05019
|
$2.04 | ||
|
Unavailable |
|||
|
#8
CLAMP, MAGNETO LEAD NO.3 (L:45)
09404-06429
|
$2.20 | ||
|
Unavailable |
|||
|
#9
BOLT
01547-0630A
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, MAGNETO
08341-31059
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
