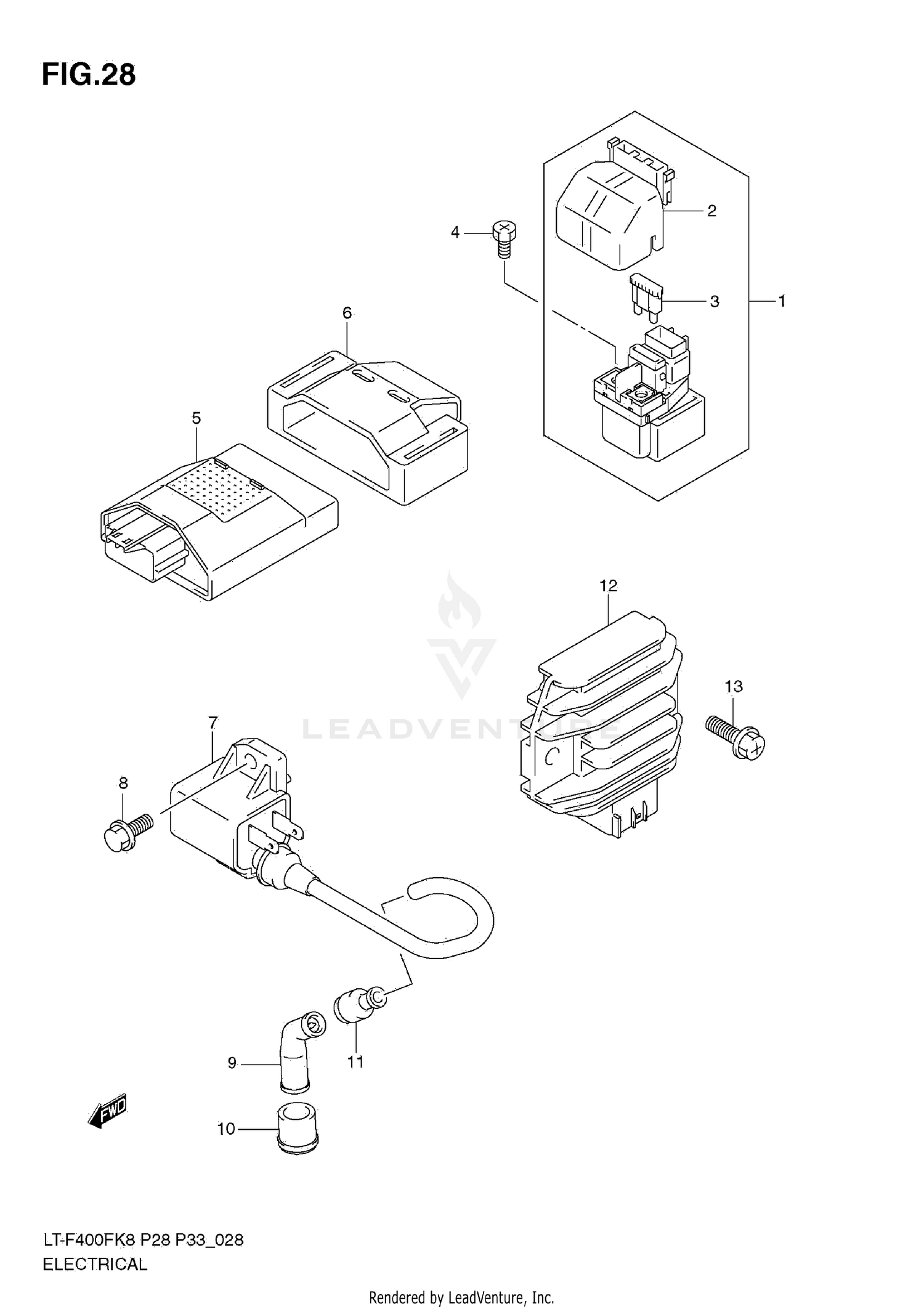

Electrical (model K8/k9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-38G10
|
$125.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, STARTER RELAY
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STARTING MOTOR TERM
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
CDI UNIT
32900-27H00
|
$726.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, CDI
32980-27H00
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY, IGNITION
33410-41D20
|
$122.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
.BOLT
01550-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, SPARK PLUG
33510-43010
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, SPARK PLUG
33541-44D00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
RECTIFIER ASSY
32800-38F10
|
$292.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
02162-0625B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
