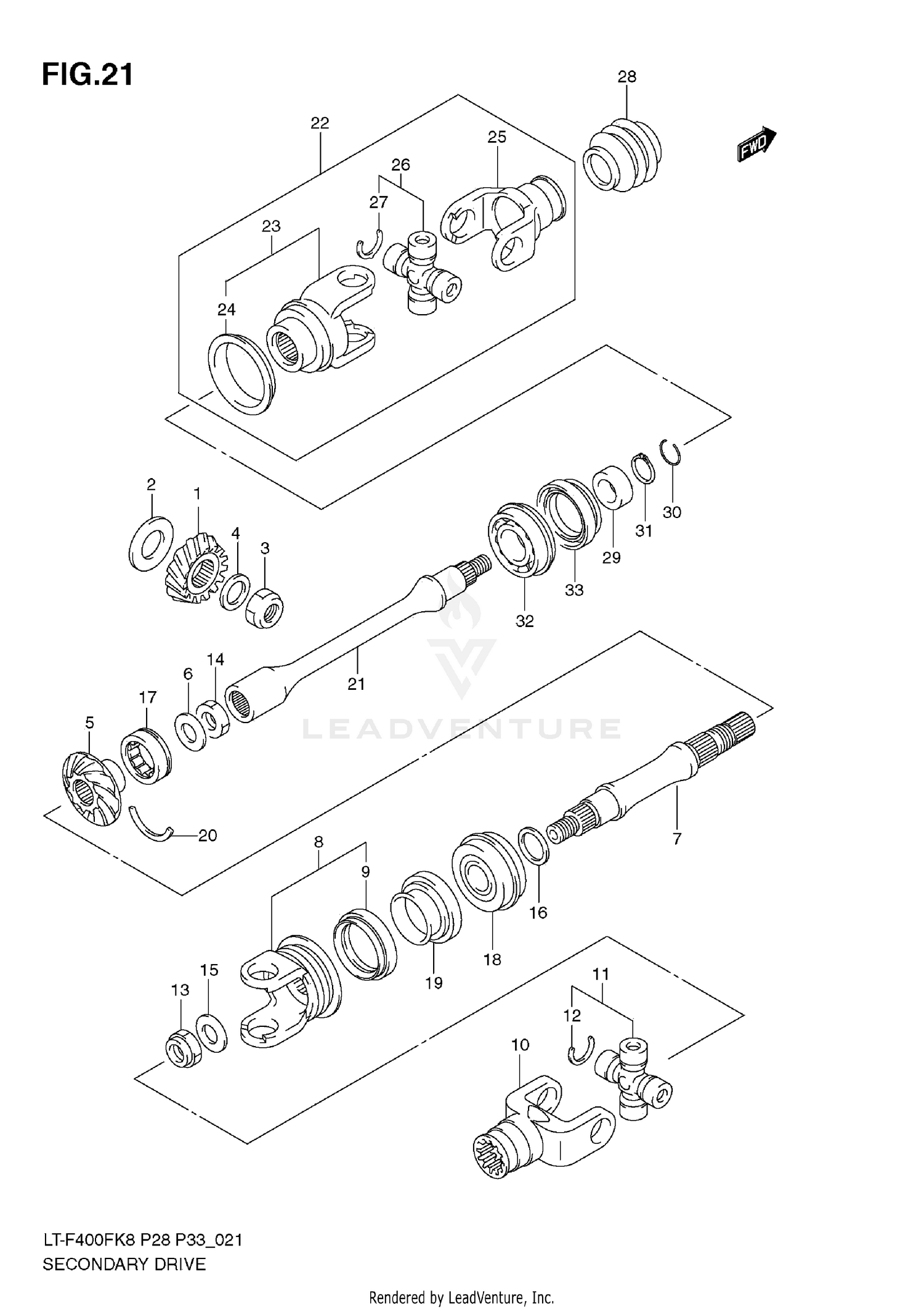

Secondary Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, SEC DRIVE BEVEL (NT:15)
24911-44D11
|
$238.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHIM SET,SEC DRIVE BEVEL
24935-03811
|
$144.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SEC DRIVE BEVEL GR
09140-20012
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SEC DRIVE BEVEL GR
09181-20223
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, SEC DRIVEN BEVEL (NT:17
24921-44D10
|
$291.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SEC DRIVEN GEAR
08211-22362
|
$3.08 | ||
|
Unavailable |
|||
|
#7
SHAFT, SEC DRIVEN OUTPUT REAR
24971-38F50
|
$267.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
YOKE, RR DRIVE OUTPUT
27130-03G00
|
$197.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, OUTPUT
27592-38F00
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
YOKE, PROP SHAFT JOINT
27140-27H00
Superseded by 27140-27H01
|
$150.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT SET,UNIVERSAL
27200-19810
Superseded by 27200-19811
|
$73.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09380-20016
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, REAR DRIVE OUTPUT YOKE
09159-16003
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SEC DRIVEN GEAR
09159-22005
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, REAR OUTPUT FLANGE
09160-16026
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM SET,SEC DRIVEN BEVEL
24945-03811
|
$120.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRG, SEC DRIVEN GEAR, M
09263-30050
|
$59.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRG, SEC DRIVEN OUTPUT SFT RR
09267-25014
|
$130.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL, DRIVEN SFT, RR
09283-34008
|
$25.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, SEC DRIVEN BRG, MDL
09390-50002
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT, SEC DRIVEN OUTPUT, FR
24961-27H50
|
$254.04 | ||
|
Available to order. Add to View Price |
|||
|
#22
YOKE ASSY,UNIVERSAL JOINT
27100-27H00
Superseded by 27100-27H02
|
$328.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
YOKE, FRONT DRIVE OUTPUT
27130-27H00
Superseded by 27130-27H01
|
$195.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, OUTPUT
27592-38F00
|
$12.25 | ||
|
Unavailable |
|||
|
#25
YOKE, PROP SHAFT JOINT
27140-27H00
Superseded by 27140-27H01
|
$150.30 | ||
|
Unavailable |
|||
|
#26
JOINT SET,UNIVERSAL
27200-19810
Superseded by 27200-19811
|
$73.55 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
09380-20016
|
$2.83 | ||
|
Unavailable |
|||
|
#28
BOOT,PROPELLER SHAFT
27153-27H10
Superseded by 27153-27H11
|
$9.68 | ||
|
Unavailable |
|||
|
#29
COLLAR,FRONT DRIVE OUTPUT
27591-27H00
|
$28.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
C RING, SEC DRIVEN
09381-19005
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CIRCLIP
08331-3122A
Superseded by 08331-31229
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, SEC DRIVEN, FR
09262-25131
|
$53.88 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, SEC DRIVEN OUTPUT
09283-34008
|
$25.24 | ||
|
Unavailable |
|||
