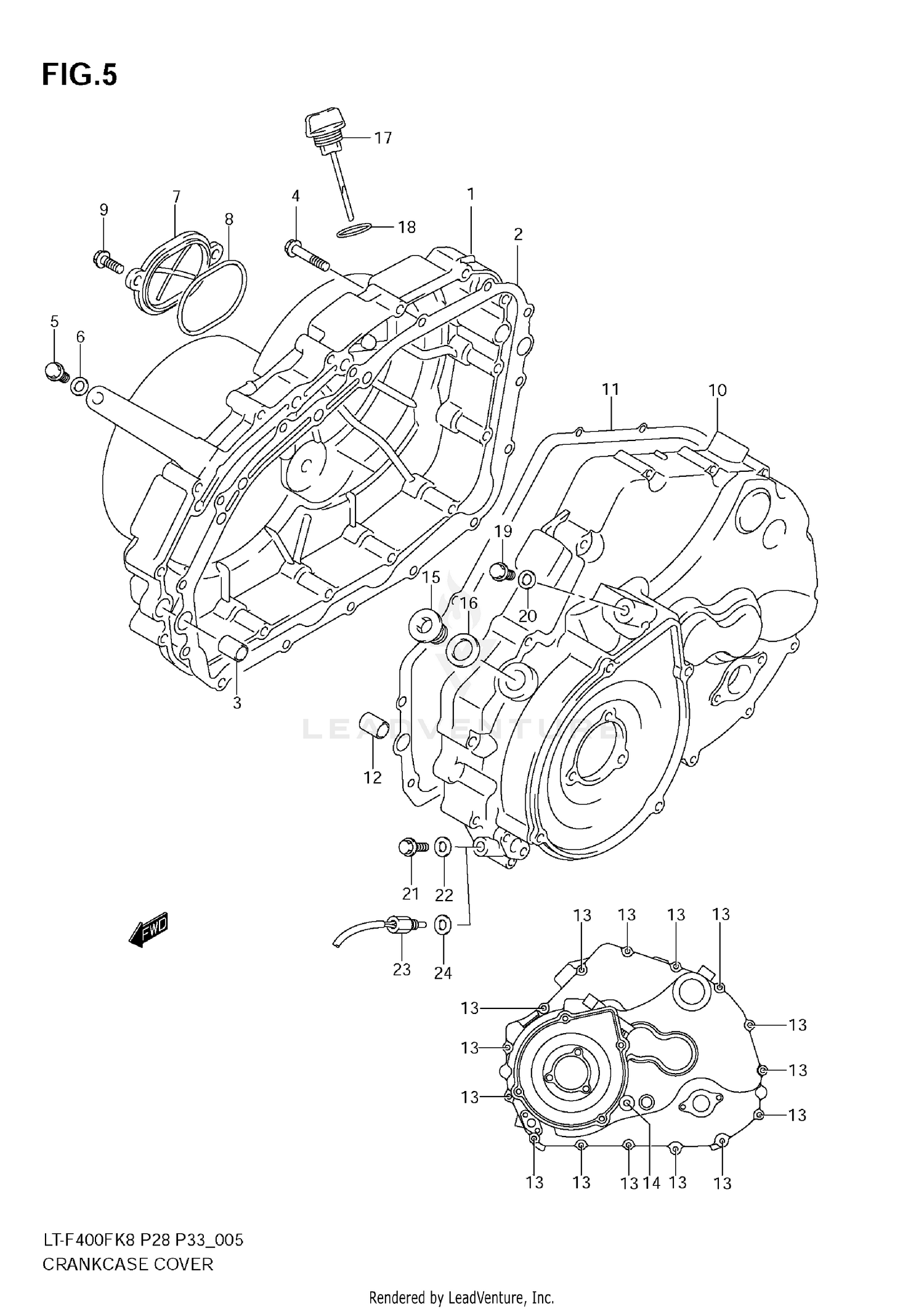

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11341-27H10
|
$337.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET, CYLINDER
11482-38F10
|
$29.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BOLT
01547-0640B
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, OIL GALLERY
01550-0612B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, OIL GALLERY PLUG
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CAP, INSPECTION
11175-09F00
|
$16.04 | ||
|
Unavailable |
|||
|
#8
.O RING,INSPECTION CAP
11177-14D01
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, INSPECTION CAP
01550-0620B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, MAGNETO
11351-27H10
|
$417.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, MAGNETO
11351-27H30
|
$407.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET, CLUTCH COVER
11483-38F10
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
04211-13189
|
$2.72 | ||
|
Unavailable |
|||
|
#13
BOLT
01547-0640B
|
$3.40 | ||
|
Unavailable |
|||
|
#14
BOLT, (8X140)
09103-08040
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, T.D.C CHECK
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET, T.D.C CHECK
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GAUGE,OIL LEVEL
11971-38F00
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING, OIL LEVEL GAUGE
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLUG, OIL GALLERY
01550-0612B
|
$2.95 | ||
|
Unavailable |
|||
|
#20
GASKET, OIL GALLEY PLUG
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#21
PLUG, OIL GALLERY
01550-0812B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
09168-08029
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENSOR,ENGINE TEMP
13640-32G00
Superseded by 13640-32G01
|
$65.39 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
