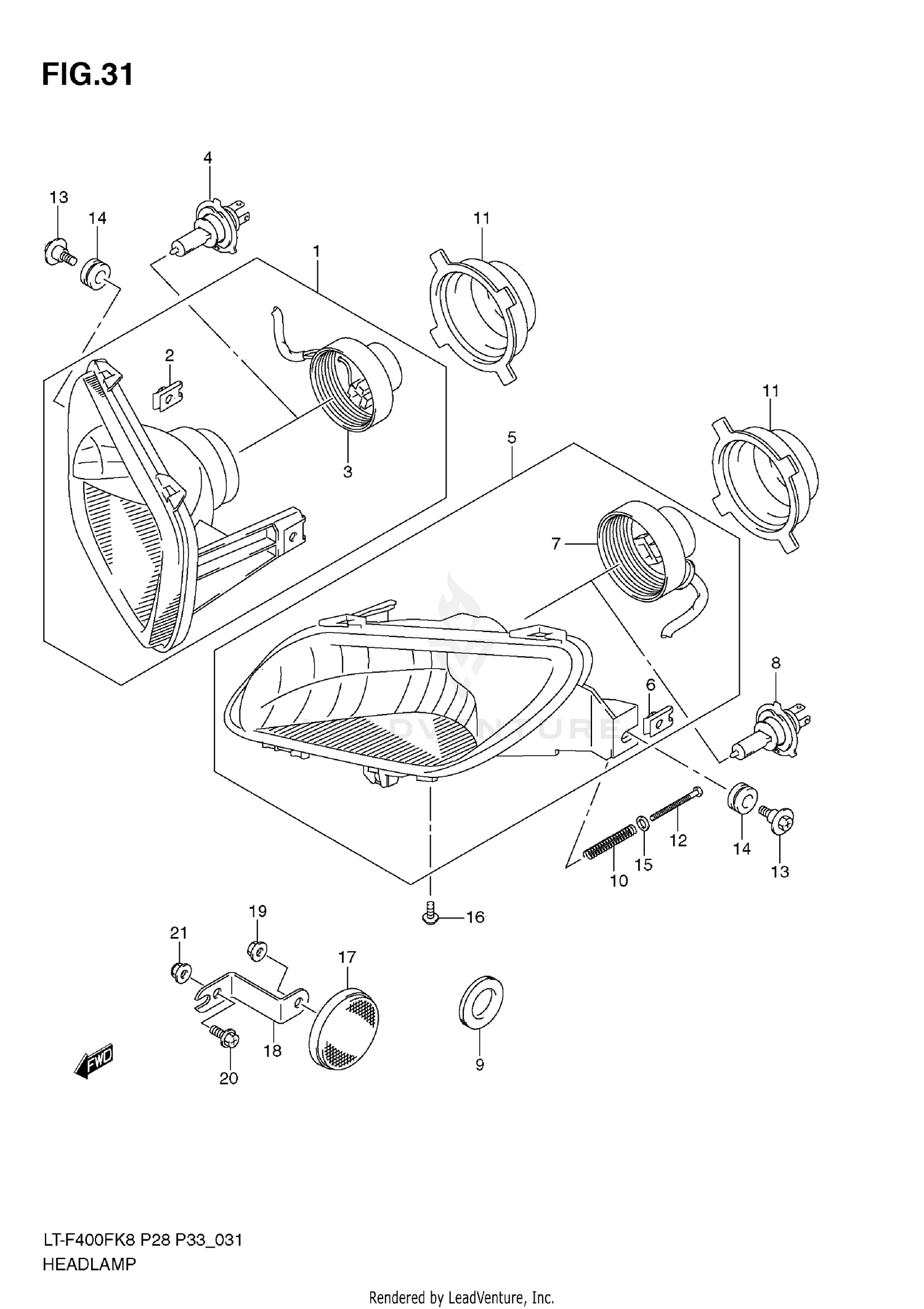

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY, R
35100-31G90-999
|
|||
|
Unavailable |
|||
|
#2
NUT (M6)
35157-31G90
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
CORD ASSY, R
35171-31GM1
|
$33.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V35/35W,HS1)
09471-12101
|
$84.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEADLAMP ASSY LH
35300-31G90-999
Superseded by 35300-31G92-999
|
$130.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT (M6)
35157-31G90
|
$7.04 | ||
|
Unavailable |
|||
|
#7
CORD ASSY, L
35171-31GH1
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V35/35W,HS1)
09471-12101
|
$84.80 | ||
|
Unavailable |
|||
|
#9
GROMMET
09308-07011
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, HEADLAMP ADJUST
35154-31300
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER,HEADLAMP HOUSING
35174-31G00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, HEADLAMP ADJUST
09125-04031
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, HEADLAMP
09139-06118
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-10501
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, HEADLAMP
08322-0104A
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW (5X16)
09136-05046
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A10
Superseded by 35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET,FRONT SIDE RR
35956-27H00
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FR SIDE RR
08316-1005B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FR SIDE RR BRKT
02162-0516B
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FR SIDE RR BRKT
08319-3105B
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
