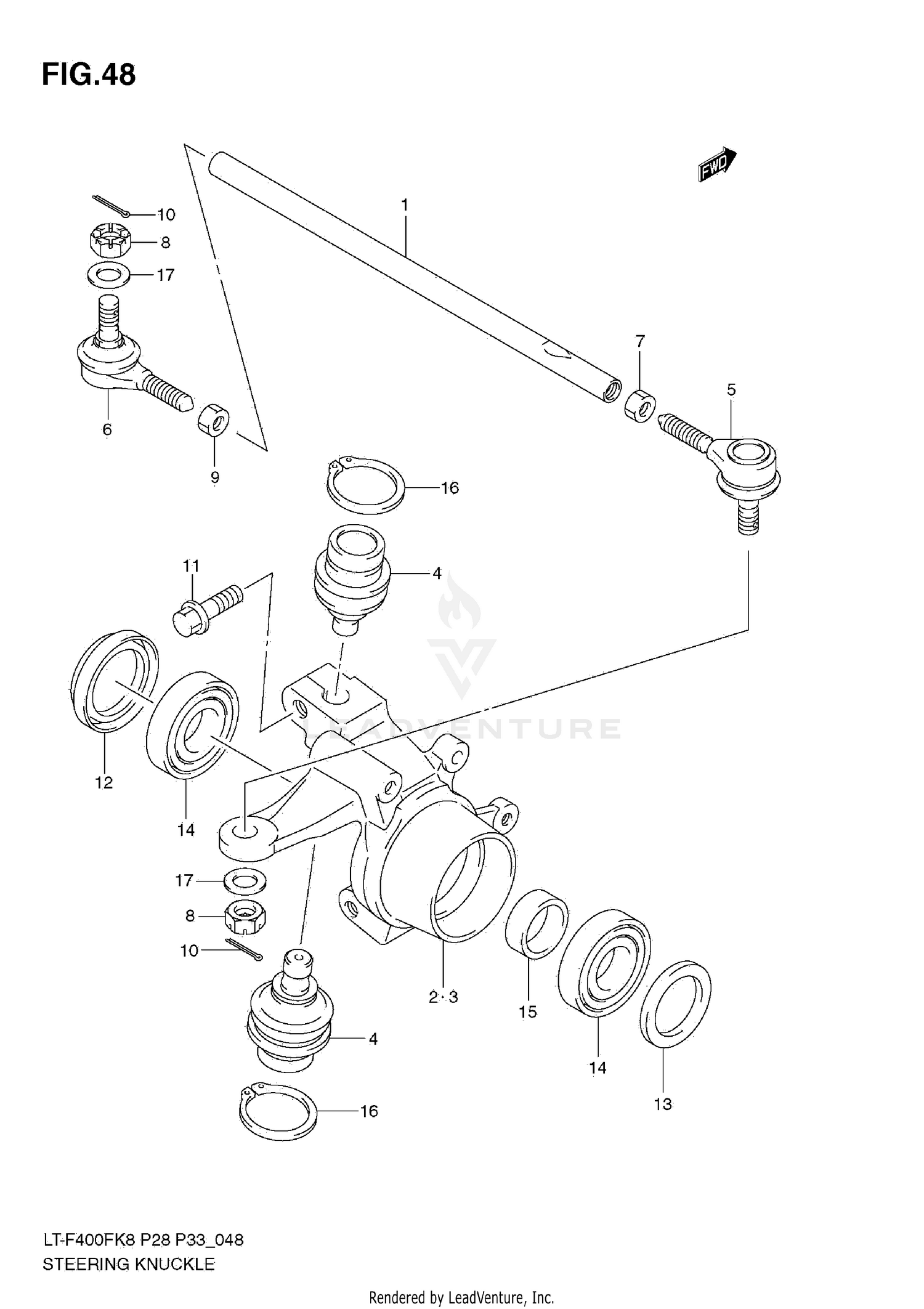

Steering Knuckle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TIE-ROD,STEERING
51281-27H00
|
$51.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
KNUCKLE,STEERING,R
51231-27H00
Superseded by 51231-27H10
|
$175.56 | ||
|
Unavailable |
|||
|
#3
KNUCKLE,STEERING,L
51241-27H00
Superseded by 51241-27H10
|
$175.56 | ||
|
Unavailable |
|||
|
#4
END,KNUCKLE STEERING
51210-38F00
|
$83.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
END,ROD,R
51260-21G00
|
$84.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
END,ROD,L
51270-21G00
|
$84.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, TIE-ROD RH
51283-21G00
|
$4.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, ROD END
08314-4010B
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09140-10027
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
04111-2020A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, KNUCKLE (10X30)
51233-09F00
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#12
DUST SEAL, INNER (38X55X8)
09283-38012
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
DUST SEAL, OUTER (38X55X7.5)
09283-38022
|
$15.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
08123-60067
|
$35.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,HUB BEARING
54731-03G00
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
08331-3130A
Superseded by 08331-31309
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,LOCK
09162-10010
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, ROD END
09160-10082
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
