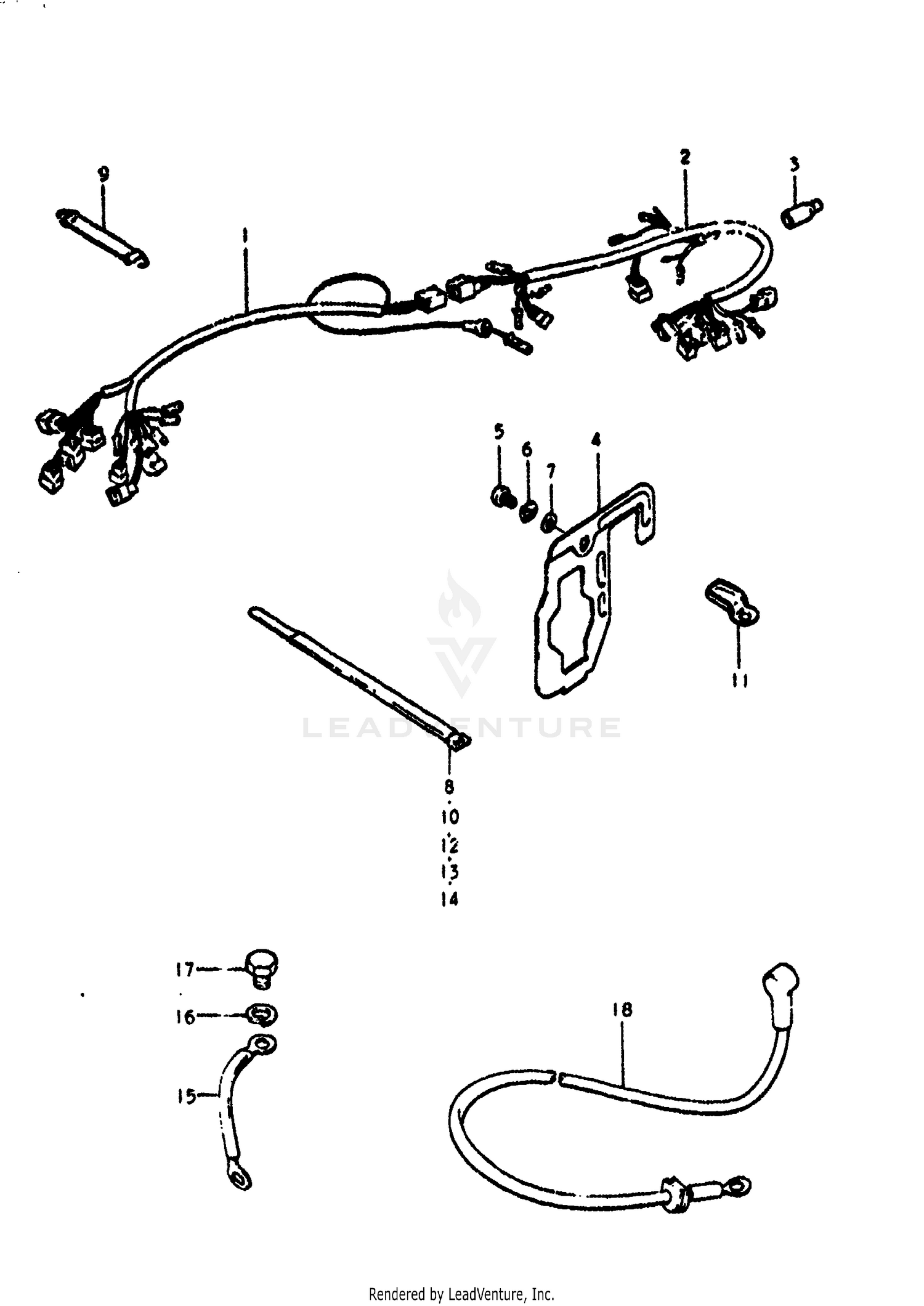

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HIRING HARNESS, NO.1
36610-31001
|
$71.03 | ||
|
Unavailable |
|||
|
#2
WIRING HARNESS, NO.2
36620-31001
Superseded by 36620-31004
|
$99.34 | ||
|
Unavailable |
|||
|
#3
BOOT
36618-28000
Superseded by 36618-30000
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, COUPLER
37911-31000
|
|||
|
Unavailable |
|||
|
#5
SCREW
02111-04087
Superseded by 02112-04087
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
LOCK WASHER
08321-21048
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
08322-21048
Superseded by 08322-01047
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND
09462-00056
|
$3.43 | ||
|
Unavailable |
|||
|
#10
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.65 | ||
|
Unavailable |
|||
|
#11
CLAMP, CABLE
09403-06302
Superseded by 09403-06301
|
$1.52 | ||
|
Unavailable |
|||
|
#12
CLAMP
09407-11302
Superseded by 09407-18302
|
$2.65 | ||
|
Unavailable |
|||
|
#13
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.65 | ||
|
Unavailable |
|||
|
#14
CLAMP
09407-11302
Superseded by 09407-18302
|
$2.65 | ||
|
Unavailable |
|||
|
#15
LEAD WIRE, ENGINE EARTH
36864-31001
|
$6.37 | ||
|
Unavailable |
|||
|
#16
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
01122-08128
Superseded by 01500-08127
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEAD WIRE, STARTING MOTOR
36863-31000
|
$14.65 | ||
|
Unavailable |
|||
