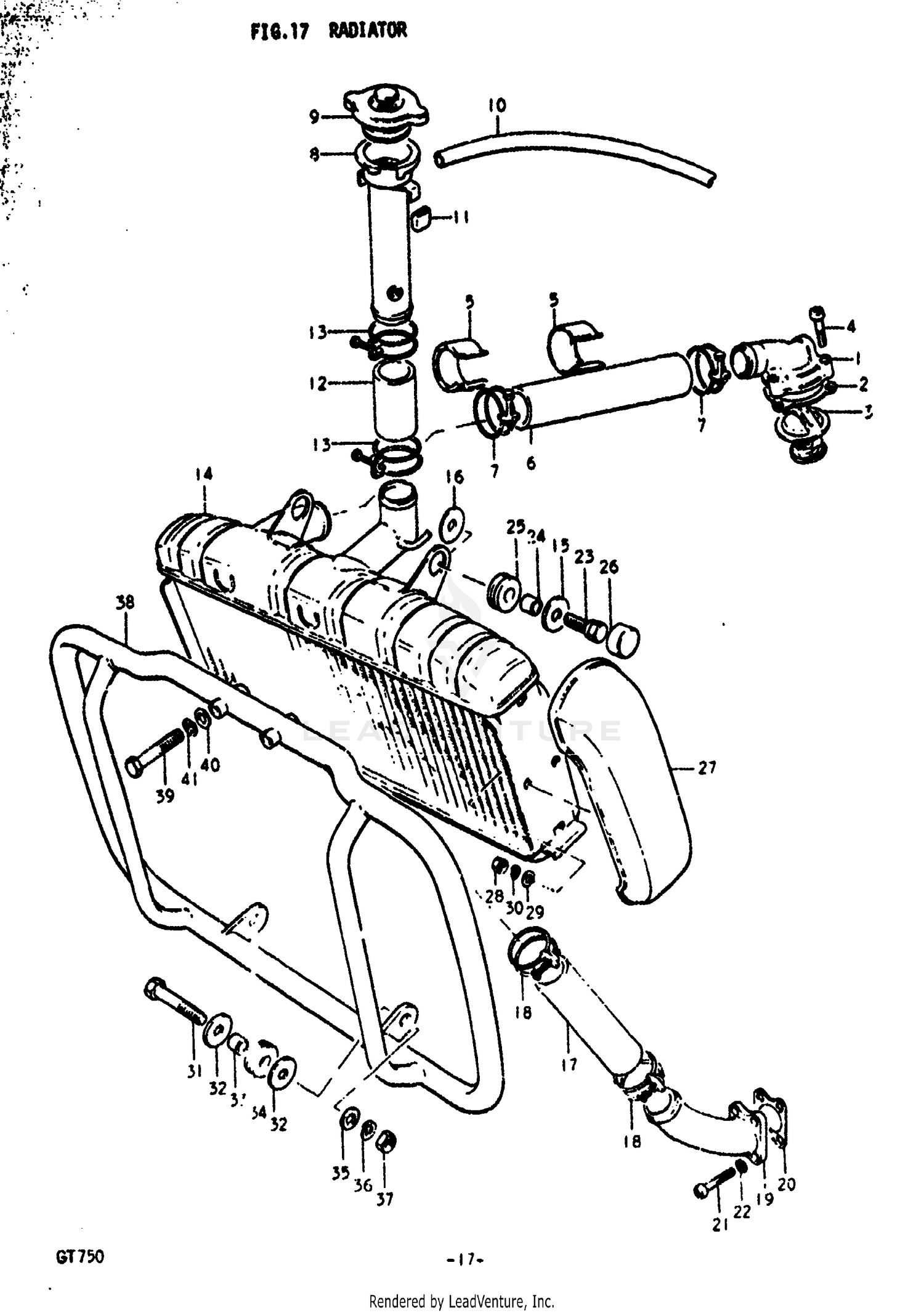

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, THERMOSTAT
17661-31002
|
$34.83 | ||
|
Unavailable |
|||
|
#2
GASKET, THERMOSTAT COVER
17668-31000
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
THERMOSTAT, WATER
17670-65020
|
$35.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02112-06307
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, RADIATOR HOSE
17856-31000
|
$11.02 | ||
|
Unavailable |
|||
|
#6
HOSE
09343-31001
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09400-40401
Superseded by 09400-40311
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, WATER INLET
17710-31010
|
|||
|
Unavailable |
|||
|
#9
CAP COMP,RES TA
17780-31010
Superseded by 17920-78000
|
$44.01 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE, WATER OVER FLOW
17715-31010
|
|||
|
Unavailable |
|||
|
#11
CUSHION
09329-01003
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE
09343-31003
Superseded by 09343-31001
|
$18.14 | ||
|
Unavailable |
|||
|
#13
CLAMP
09400-40401
Superseded by 09400-40311
|
$3.59 | ||
|
Unavailable |
|||
|
#14
RADIATOR SET
17700-31830
|
$383.40 | ||
|
Unavailable |
|||
|
#15
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
09160-08006
|
$0.80 | ||
|
Unavailable |
|||
|
#17
HOSE
09343-31002
Superseded by 09343-31001
|
$18.14 | ||
|
Unavailable |
|||
|
#18
CLAMP
09400-40401
Superseded by 09400-40311
|
$3.59 | ||
|
Unavailable |
|||
|
#19
CONNECTOR, WATER INLET
17854-31000
|
$27.83 | ||
|
Unavailable |
|||
|
#20
GASKET, INLET CONNECTOR
17855-31000
|
$1.77 | ||
|
Unavailable |
|||
|
#21
SCREW
02112-06258
Superseded by 02112-06257
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT
09111-08010
|
$0.94 | ||
|
Unavailable |
|||
|
#24
SPACER, TAIL COVER RR RR
09180-08050
Superseded by 09180-08199
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION
09320-13005
Superseded by 09320-13025
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER
09329-10009
|
$2.59 | ||
|
Unavailable |
|||
|
#27
NO DESCRIPTION AVAILABLE
17760-31000-195
Superseded by 17700-31840
|
$41.22 | ||
|
Unavailable |
|||
|
#27
NO DESCRIPTION AVAILABLE
17760-31000-216
Superseded by 17700-31840
|
$41.22 | ||
|
Unavailable |
|||
|
#28
NUT
08311-11058
Superseded by 08310-00057
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER
08322-11058
Superseded by 08322-01057
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#30
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT
01122-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, EXHAUST SUPPORT
09160-08002
Superseded by 09160-08135
|
$2.53 | ||
|
Unavailable |
|||
|
#32
WASHER
09160-08006
|
$0.80 | ||
|
Unavailable |
|||
|
#33
SPACER, TAIL COVER RR RR
09180-08050
Superseded by 09180-08199
|
$2.59 | ||
|
Unavailable |
|||
|
#34
CUSHION
09320-13005
Superseded by 09320-13025
|
$3.43 | ||
|
Unavailable |
|||
|
#35
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
NUT
08312-11088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BUMPER, RADIATOR
94970-31000
|
$86.83 | ||
|
Unavailable |
|||
|
#39
BOLT
01122-08508
Superseded by 01500-08507
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
Unavailable |
|||
|
#41
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
