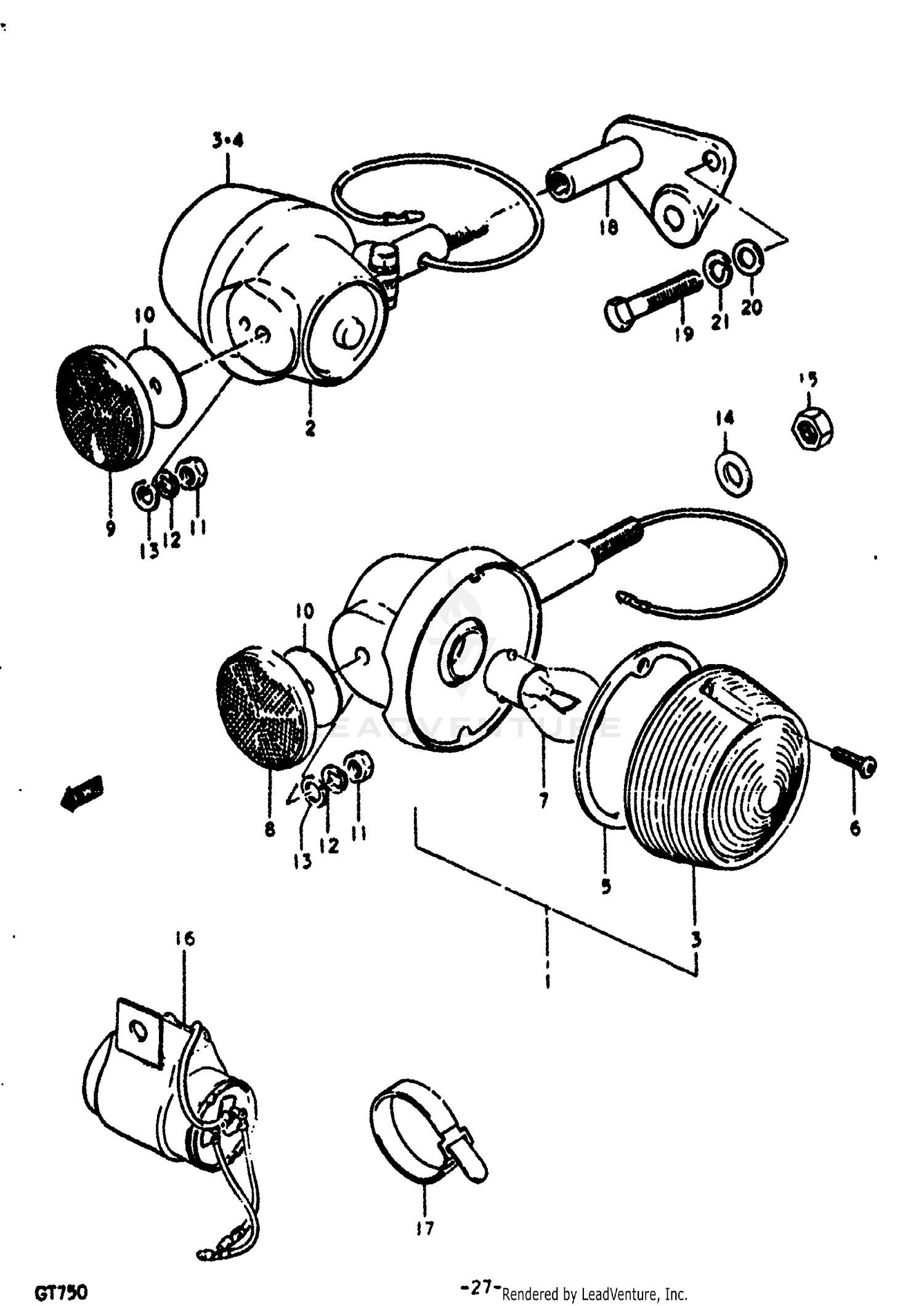

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURN SIGNAL
35601-31010
|
$28.32 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
35603-31010
Superseded by 35603-31010-999
|
$29.74 | ||
|
Unavailable |
|||
|
#3
LENS
35612-31010
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS, REAR
35652-31610
|
$7.13 | ||
|
Unavailable |
|||
|
#5
GASKET
35613-03610
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02111-03168
Superseded by 02112-0316B
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB
09471-12006
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
REFLEX REFLECTOR FRONT
35950-31010
Superseded by 35950-49080
|
$22.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
REFLEX REFLECTOR ASSY, REAR
35970-31610
|
$18.98 | ||
|
Unavailable |
|||
|
#10
CUSHION
35656-31010
|
$1.68 | ||
|
Unavailable |
|||
|
#11
NUT
08311-11058
Superseded by 08310-00057
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER (5.5X18X1)
09160-05003
Superseded by 09160-05045
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT
08312-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
TURN SIGNAL REL
38610-15611
Superseded by 38610-322V0
|
$81.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09407-11302
Superseded by 09407-18302
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, REAR TURN SIGNAL RH
41640-33001
|
$3.34 | ||
|
Unavailable |
|||
|
#18
BRACKET, REAR TURN SIGNAL LH
41650-33001
|
$9.30 | ||
|
Unavailable |
|||
|
#19
BOLT
01111-10207
Superseded by 01500-1020B
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
Unavailable |
|||
|
#21
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
