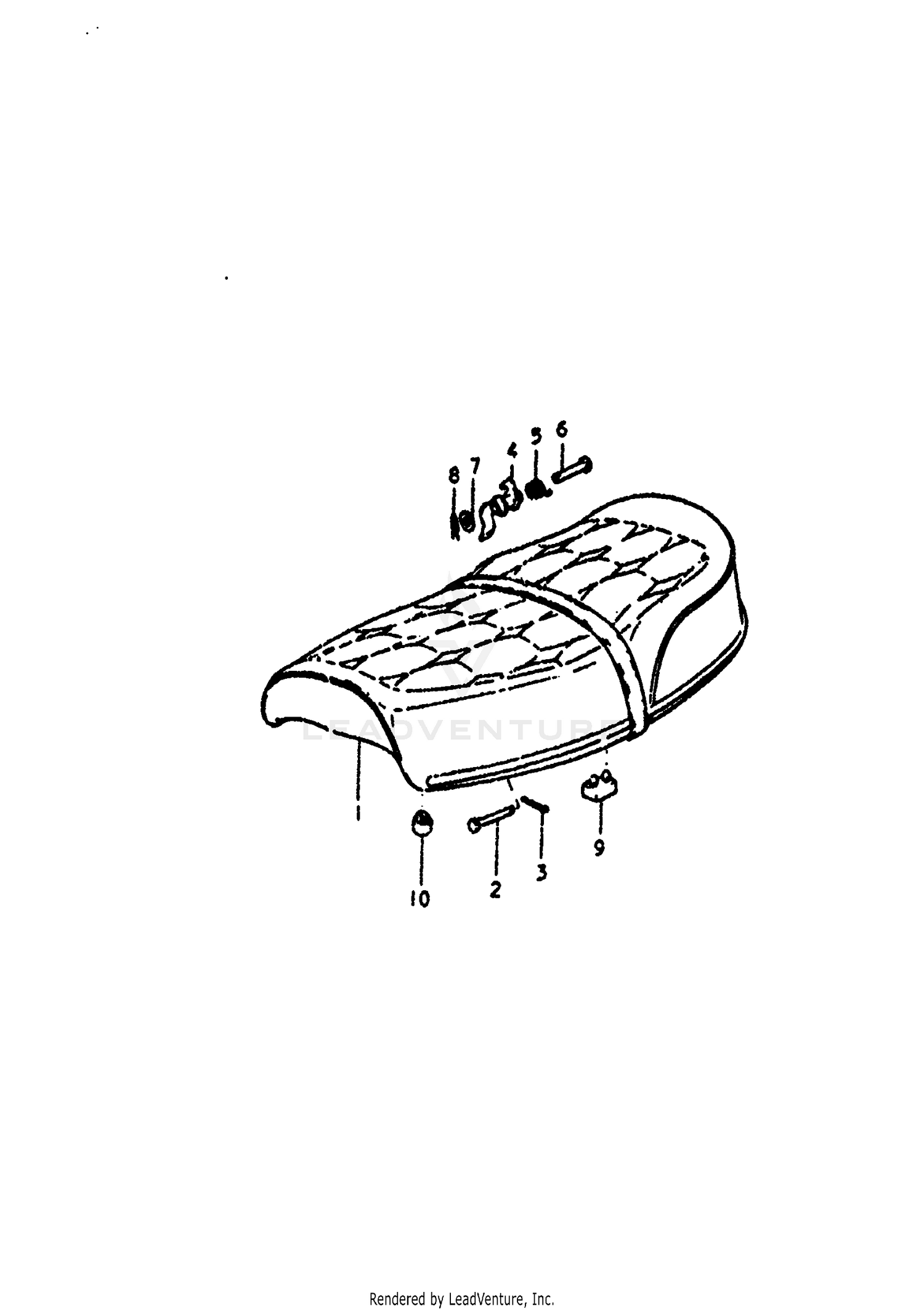

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-31201-865
Superseded by 45100-31X00-865
|
$495.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09200-06018
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, SEAT
45210-33002
|
$6.27 | ||
|
Unavailable |
|||
|
#5
SPRING
09448-15001
|
$2.33 | ||
|
Unavailable |
|||
|
#6
PIN
09200-06018
|
$2.51 | ||
|
Unavailable |
|||
|
#7
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLIP
09385-06002
|
$0.37 | ||
|
Unavailable |
|||
|
#9
CUSHION
09321-08006
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09321-10001
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
