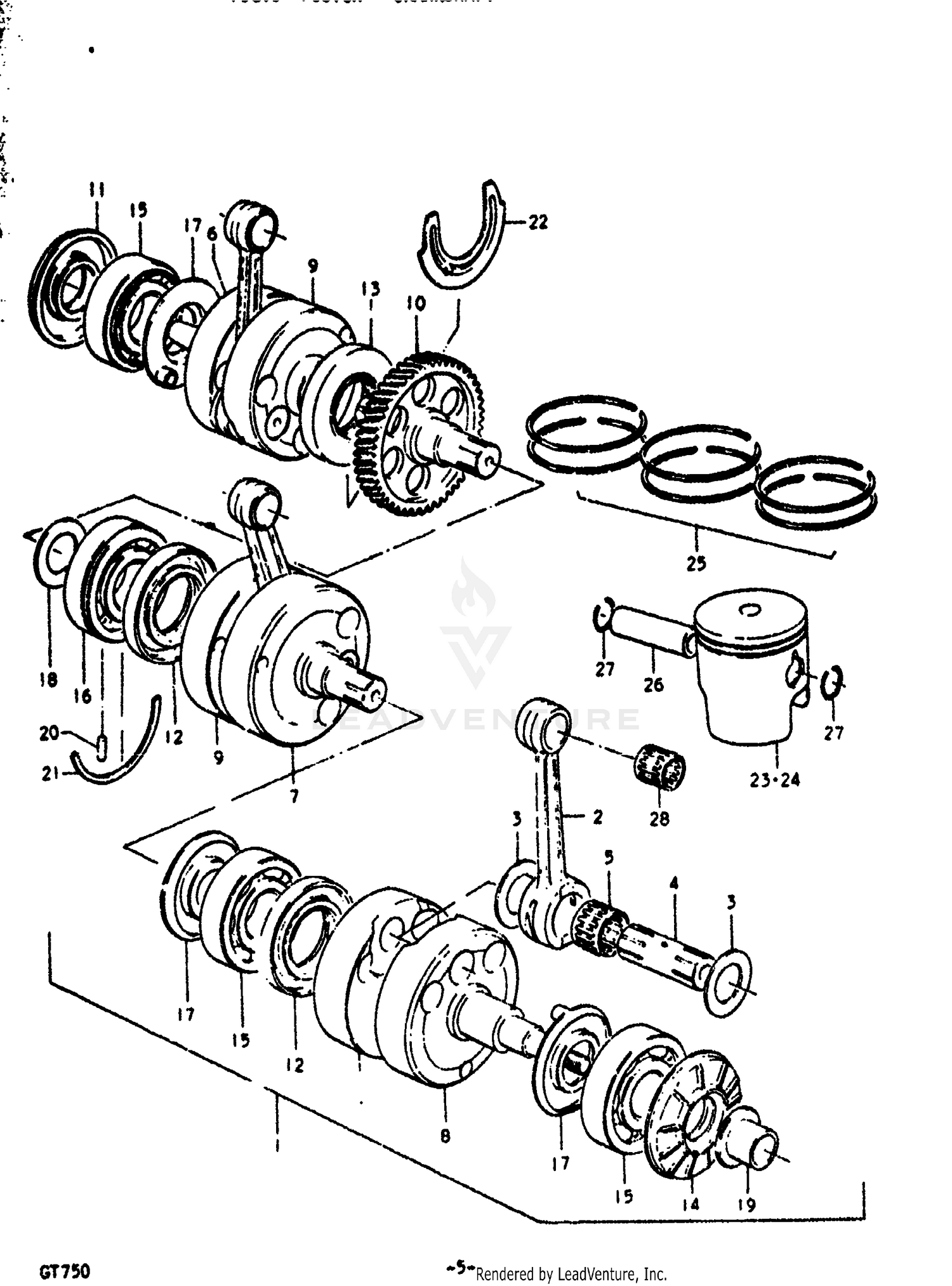

Piston - Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
12200-31842
Superseded by 12200-31004
|
$660.48 | ||
|
Unavailable |
|||
|
#2
ROD, CONNECTING
12161-31000
|
$78.69 | ||
|
Unavailable |
|||
|
#3
THRUST WASHER
09160-24012
|
$2.12 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK
12211-15000
|
$47.98 | ||
|
Unavailable |
|||
|
#5
BEARING
09263-24007
Superseded by 09263-24026
|
$89.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, RH
12221-31001
|
$121.93 | ||
|
Unavailable |
|||
|
#7
CRANKSHAFT, MIDDLE
12231-31001
|
$146.52 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT, LH
12241-31003
|
|||
|
Unavailable |
|||
|
#9
CRANK WEB, LH
12242-31001
|
$74.01 | ||
|
Unavailable |
|||
|
#10
SHAFT, PRIMARY DRIVE
12251-31001
|
$46.81 | ||
|
Unavailable |
|||
|
#11
OIL SEAL
09289-25006
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
09289-38001
|
$23.72 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
09289-38008
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
09289-30001
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
09269-30007
|
$83.68 | ||
|
Unavailable |
|||
|
#16
BEARING
09262-30013
|
$53.88 | ||
|
Unavailable |
|||
|
#17
PLATE, OIL GUIDE
12511-31000
|
$5.35 | ||
|
Unavailable |
|||
|
#18
THRUST WASHER
09160-30014
|
$1.98 | ||
|
Unavailable |
|||
|
#19
BUSHING
09301-20001
|
|||
|
Unavailable |
|||
|
#20
.ROLLER (4X13.8)
09261-04002
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING
09390-78002
|
$1.41 | ||
|
Unavailable |
|||
|
#22
O RING
09390-78003
|
$0.65 | ||
|
Unavailable |
|||
|
#23
PISTON, RH
12110-31000
Superseded by 12110-31002
|
$91.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
PISTON SET
12110-31710
Superseded by 12103-31830-050
|
$160.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
PISTON SET, OS:
12110-31720
Superseded by 12103-31830-100
|
$130.66 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON, LH & MIDDLE
12120-31000
Superseded by 12120-31002
|
$110.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON SET,OS:0
12120-31710
Superseded by 12103-31870-050
|
$160.90 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON SET,0S:
12120-31720
Superseded by 12103-31870-100
|
$130.66 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING SET, PISTON
12140-30010
|
$62.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING SET, PISTON
12140-30010-050
|
$51.57 | ||
|
Available to order. Add to View Price |
|||
|
#25
RING SET, PISTON
12140-30010-100
|
$20.00 | ||
|
Unavailable |
|||
|
#26
PIN, PISTON
12151-15001
Superseded by 12151-13A00-0A0
|
$21.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
09381-18002
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING (18X23X24)
09263-18009
Superseded by 09263-18021
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
