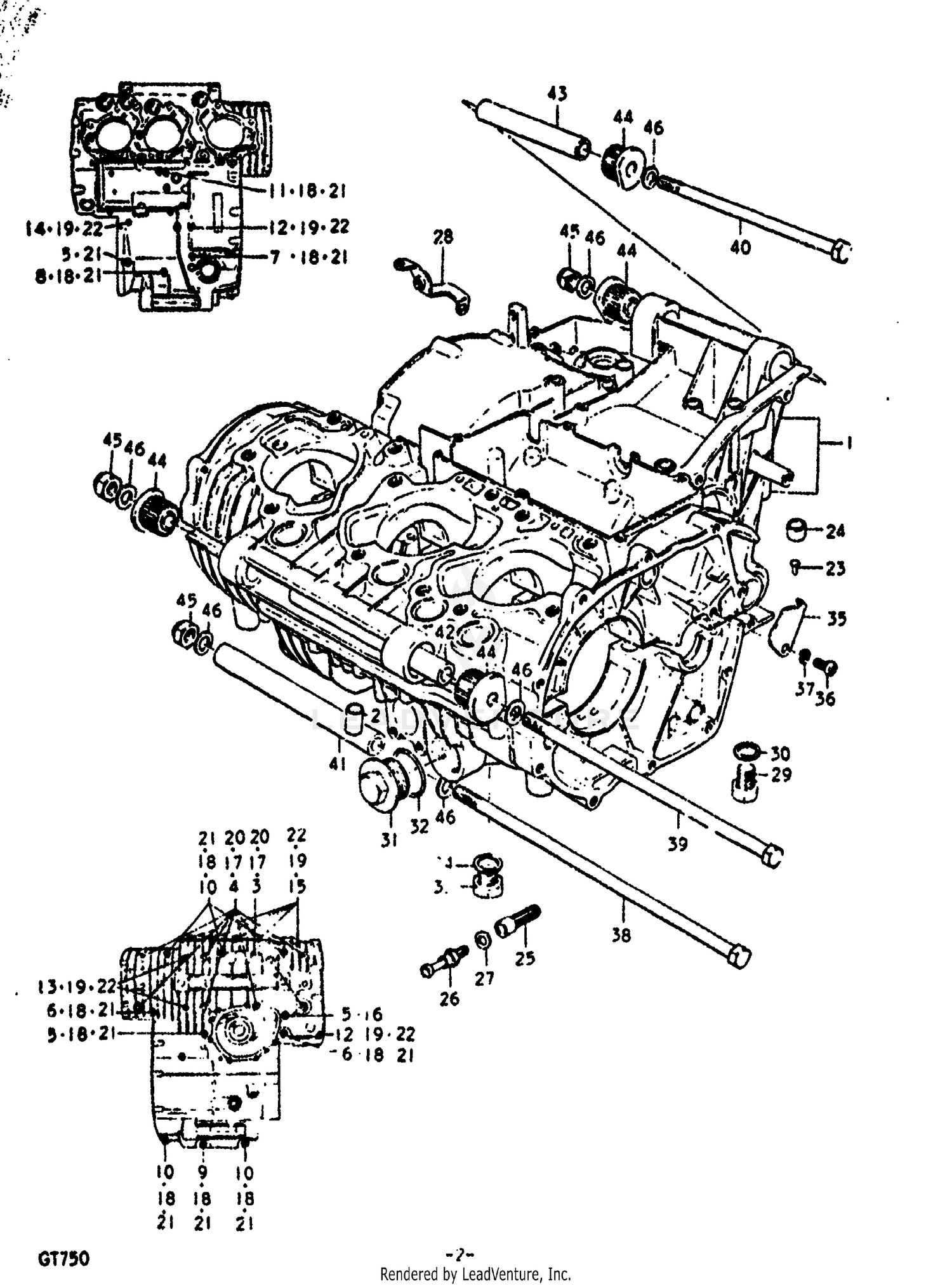

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11304-31802
|
|||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-31845
|
|||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-31850
Superseded by 11300-31852
|
$497.86 | ||
|
Unavailable |
|||
|
#1
CRANKCASE SET
11300-31851
|
|||
|
Unavailable |
|||
|
#2
PIN
09206-13001
Superseded by 04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
NO DESCRIPTION AVAILABLE
09100-10070
Superseded by 09100-10280
|
$4.60 | ||
|
Unavailable |
|||
|
#4
BOLT
09100-10035
|
$1.35 | ||
|
Unavailable |
|||
|
#5
BOLT
09100-08026
|
$1.74 | ||
|
Unavailable |
|||
|
#6
BOLT
01122-08958
Superseded by 01500-0895A
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01122-08858
Superseded by 01500-0885B
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01122-08758
Superseded by 01500-0875B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01122-08508
Superseded by 01500-08507
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01122-08508
Superseded by 01500-08507
|
$3.91 | ||
|
Unavailable |
|||
|
#11
BOLT
01122-08408
Superseded by 01500-0840A
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
09100-06060
|
$1.16 | ||
|
Unavailable |
|||
|
#13
BOLT
01112-06958
Superseded by 01500-0695B
|
$22.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01112-06858
Superseded by 01500-0685B
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01112-06358
Superseded by 64455-07L00
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER
08322-11108
Superseded by 08322-01107
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
08322-21068
Superseded by 08322-01067
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIN
09220-04001
Superseded by 09223-04001
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSHING, WATER PUMP DRIVEN
09304-10003
|
$1.92 | ||
|
Unavailable |
|||
|
#25
STRAINER, SRIS
16521-31080
|
|||
|
Unavailable |
|||
|
#25
STRAINER, SRIS
16521-31010
|
$1.12 | ||
|
Unavailable |
|||
|
#26
CHECK VALVE, SRIS
16710-31012
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#26
CHECK VALVE, SRIS
16710-31011
|
$8.85 | ||
|
Unavailable |
|||
|
#27
GASKET (8.2X14X1)
09168-08008
Superseded by 09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#28
HOLDER, OIL PUMP ADJUSTER
16293-31000
|
$3.14 | ||
|
Unavailable |
|||
|
#29
PLUG, DRAIN
09247-14007
Superseded by 09247-14025
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PLUG, WATER DRAIN
09247-32001
|
$3.59 | ||
|
Unavailable |
|||
|
#32
O RING, GEAR HOUSING
09280-33001
Superseded by 09280-33005
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET
09168-14004
|
$1.98 | ||
|
Unavailable |
|||
|
#35
PLATE, TACHOMETER OIL RESERVOI
26448-31000
|
$2.85 | ||
|
Unavailable |
|||
|
#36
SCREW
02112-06128
Superseded by 02112-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#38
BOLT
09100-10075
|
$7.72 | ||
|
Unavailable |
|||
|
#39
NO DESCRIPTION AVAILABLE
09100-10074
Superseded by 09100-10074-XC0
|
$17.73 | ||
|
Unavailable |
|||
|
#40
BOLT 0.1X185
09100-10073
Superseded by 09100-10267
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPACER
09180-10031
|
$3.18 | ||
|
Unavailable |
|||
|
#42
SPACER
09180-10032
|
$3.82 | ||
|
Unavailable |
|||
|
#43
SPACER
09180-10030
|
$4.03 | ||
|
Unavailable |
|||
|
#44
BUSH
09319-10015
Superseded by 09319-10084
|
$11.21 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
09159-10011
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER
08322-11108
Superseded by 08322-01107
|
$2.35 | ||
|
Unavailable |
|||
