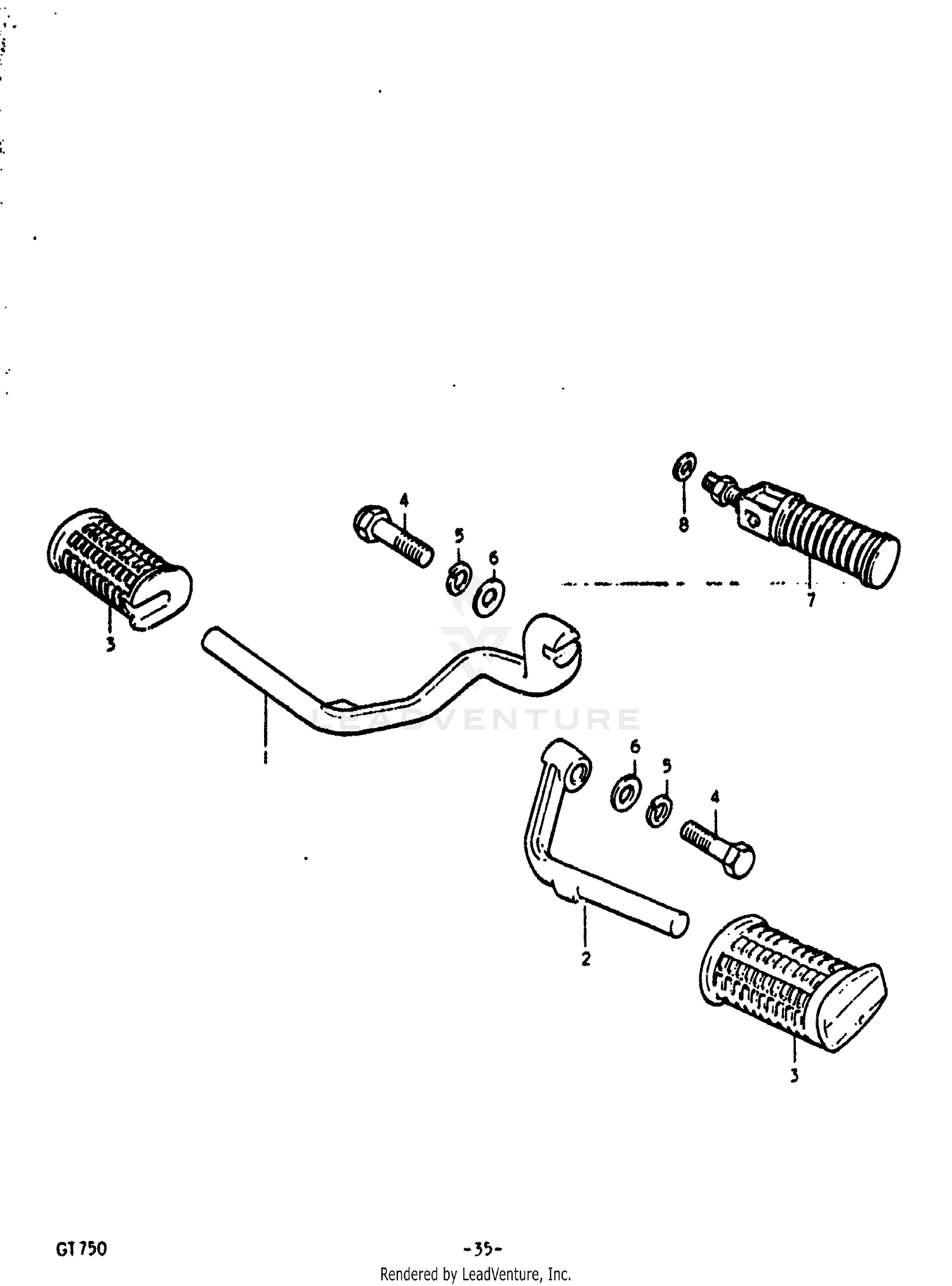

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FRONT FOOTREST RH
43511-31000
|
$26.27 | ||
|
Unavailable |
|||
|
#2
BAR, FRONT FOOTREST RH
43521-31000
|
|||
|
Unavailable |
|||
|
#3
RUBBER
43551-31000
|
$11.36 | ||
|
Unavailable |
|||
|
#4
BOLT
09104-12011
|
$3.64 | ||
|
Unavailable |
|||
|
#5
LOCK WASHER
08321-21128
Superseded by 08321-01127
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08322-21128
Superseded by 08322-01127
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
FOOTREST ASSY, PILLION
43600-31000
|
$31.11 | ||
|
Unavailable |
|||
|
#8
WASHER
08322-11108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
