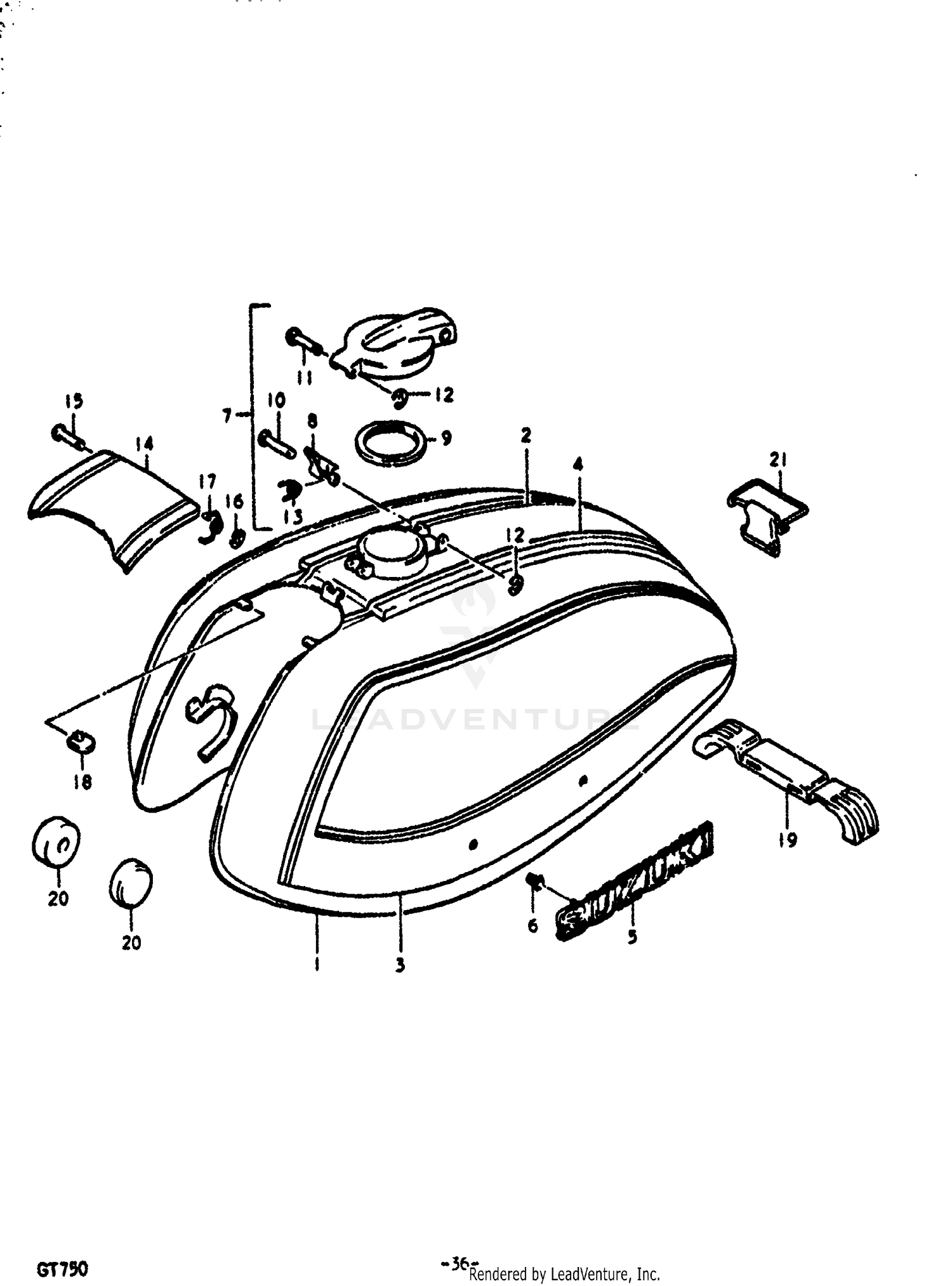

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
44110-31600-533
Superseded by 44110-31660-13L
|
$288.23 | ||
|
Unavailable |
|||
|
#1
TANK, FUEL
44110-31600-534
|
|||
|
Unavailable |
|||
|
#2
TAPE, STRIPING CENTER
68116-31000
|
|||
|
Unavailable |
|||
|
#3
TAPE, STRIPING RH
68115-31000
|
|||
|
Unavailable |
|||
|
#3
TAPE, STRIPING LH
68125-31000
|
|||
|
Unavailable |
|||
|
#4
NO DESCRIPTION AVAILABLE
68117-31000
Superseded by 68100-31830
|
$17.79 | ||
|
Unavailable |
|||
|
#5
EMBLEM
68111-31600
|
$10.87 | ||
|
Unavailable |
|||
|
#6
NUT
09148-04005
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP ASSY, FUEL TANK
44200-15100
|
$42.20 | ||
|
Unavailable |
|||
|
#8
LEVER
44246-15100
|
$1.48 | ||
|
Unavailable |
|||
|
#9
GASKET
44248-15100
|
$3.66 | ||
|
Unavailable |
|||
|
#10
PIN
09208-03001
|
$0.72 | ||
|
Unavailable |
|||
|
#11
PIN
09208-03002
|
$0.92 | ||
|
Unavailable |
|||
|
#12
E RING
09383-02003
|
$1.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
09444-06002
|
$0.74 | ||
|
Unavailable |
|||
|
#14
COVER, FRONT
44270-31600-533
|
|||
|
Unavailable |
|||
|
#14
COVER, FRONT
44270-31600-534
|
|||
|
Unavailable |
|||
|
#15
PIN
09208-02001
|
$0.92 | ||
|
Unavailable |
|||
|
#16
E RING
09383-02001
|
$1.04 | ||
|
Unavailable |
|||
|
#17
SPRING
09448-08003
|
$0.82 | ||
|
Unavailable |
|||
|
#18
CUSHION
09329-01004
|
$0.28 | ||
|
Unavailable |
|||
|
#19
CUSHION, FUEL TANK REAR
09329-01002
Superseded by 44541-31600
|
$10.75 | ||
|
Unavailable |
|||
|
#20
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BAND
09462-00049
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
