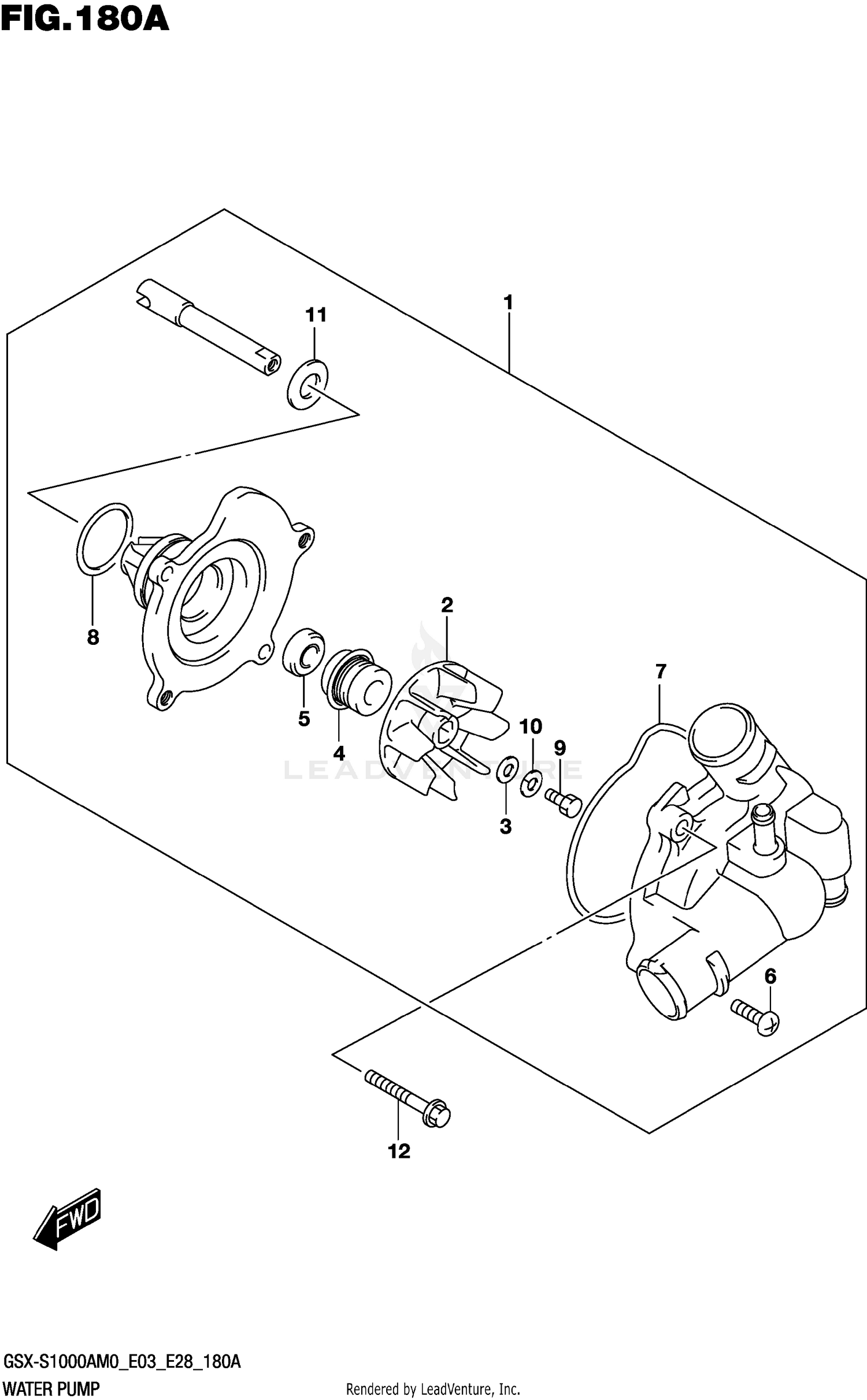

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY, WATER
17400-04K00
Superseded by 17400-04K01
|
$259.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
.IMPELLER
17491-17E01
|
$35.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
.GASKET (6X15X2.2)
09168-06025
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.SEAL,MECHANICAL
17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
.OIL SEAL
17461-48G00
|
$17.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW
02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O RING
17418-33400
Superseded by 17418-33401
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT (6X13)
09100-06099
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
09164-06006
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.WASHER
17432-07G00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,CLUTCH COVER (L:35)
09103-06530
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
