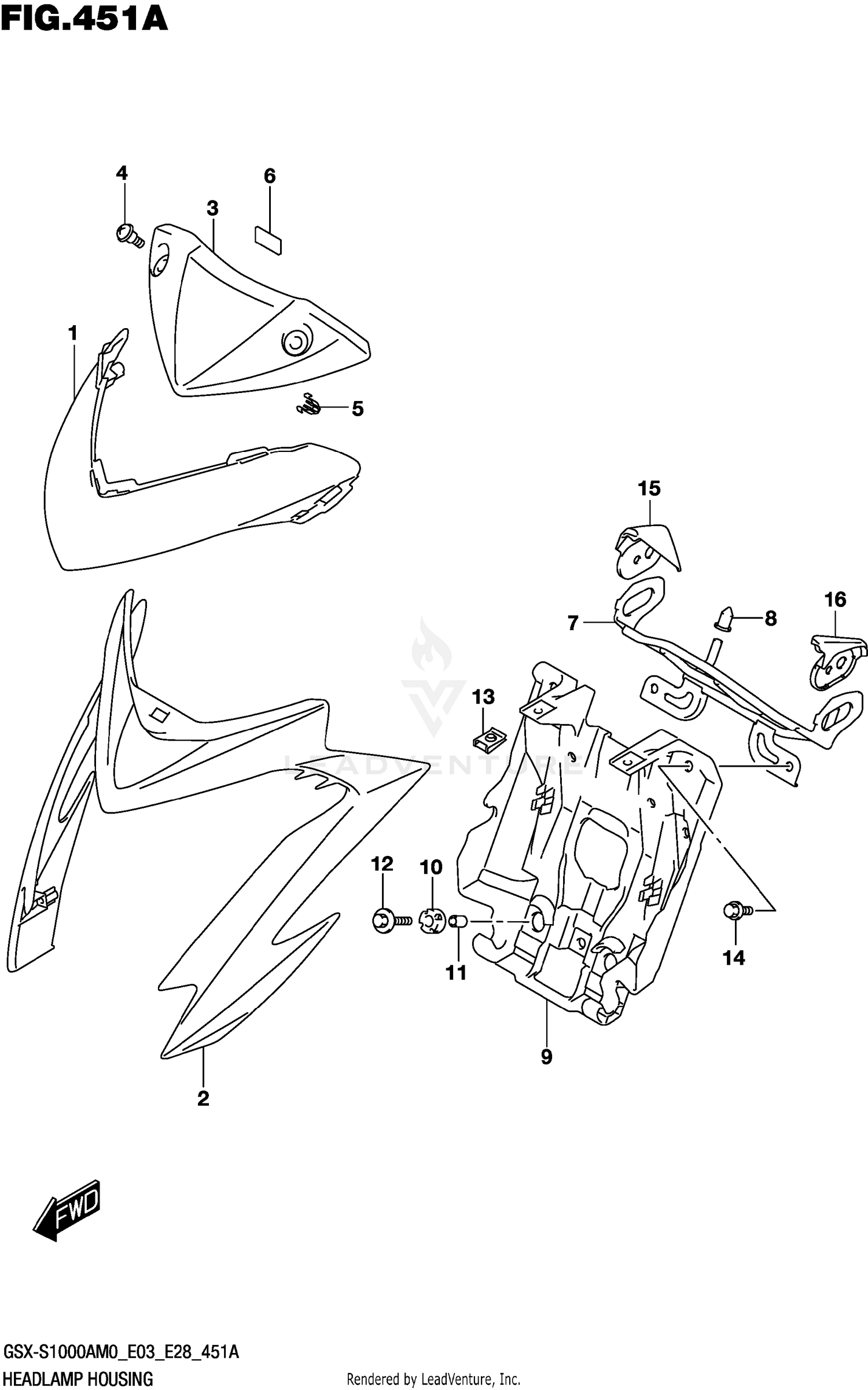

Headlamp Housing (gsx-s1000a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,HEADLAMP FRONT (BLACK)
51831-04K00-YKV
|
$105.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,HEADLAMP (BLACK)
51821-04K00-YKV
|
$160.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER,METER
51811-04K00
|
$35.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (5X13)
09139-05503
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLIP (10.5X14.3)
09409-08326
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, REAR COMB
33652-47F00
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACE,METER
51850-04K10
|
$96.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, METER BRACE
51831-30H00
Superseded by 51831-30H10
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,HEADLAMP REAR
51841-04K00
|
$49.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-09010
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPACER (6.5X9X10)
09180-06307
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X25)
09116-06131
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09148-06020
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER,HEADLAMP REAR RH
51842-04K00
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,HEADLAMP REAR LH
51843-04K00
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
