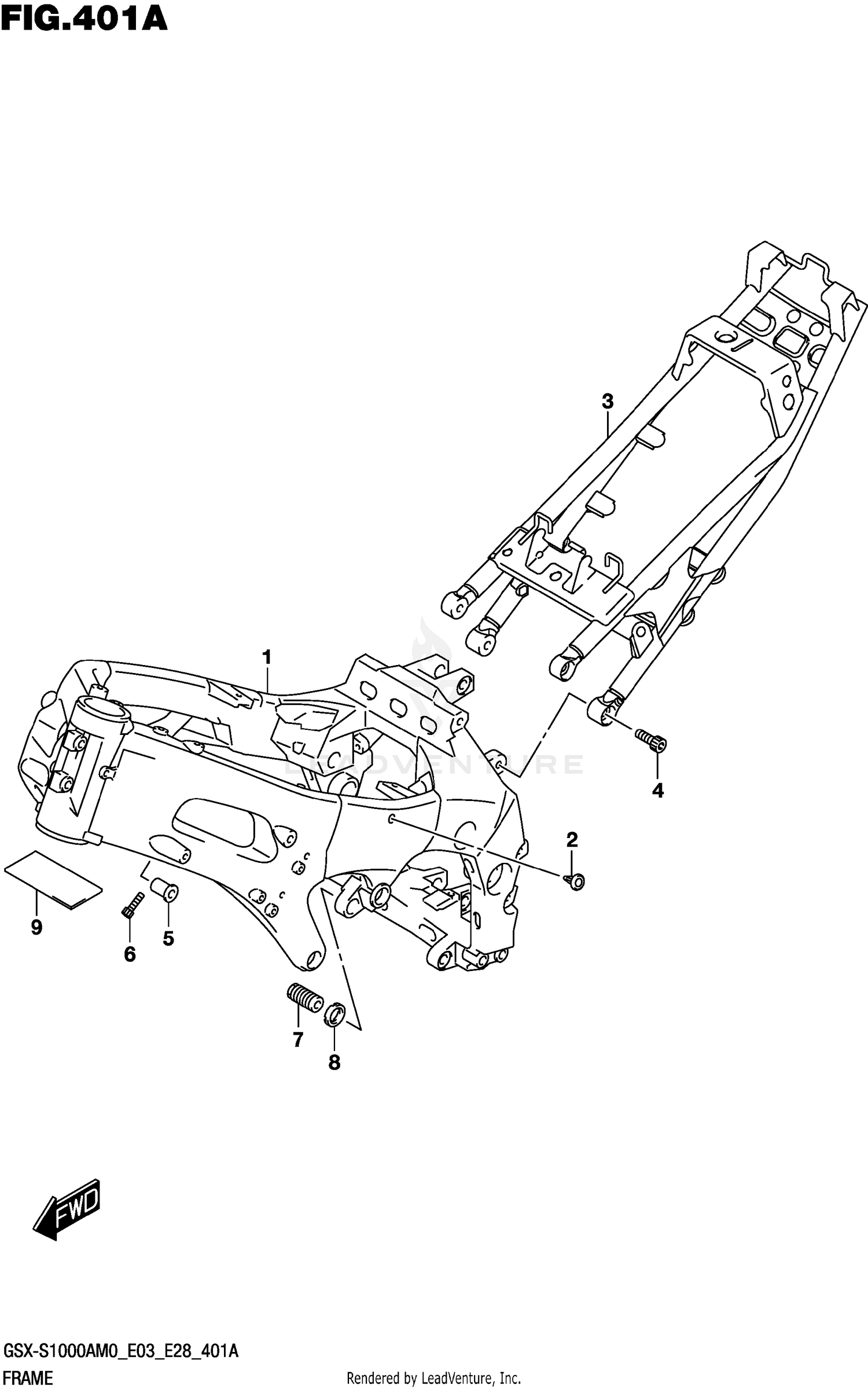

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-04K00-YAP
|
$4,136.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG,TANK RAIL
43585-01H01
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL COMP,SEAT
41200-04K10-YAP
Superseded by 41200-04K20-YAP
|
$580.77 | ||
|
Unavailable |
|||
|
#4
BOLT
07120-1030B
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,ENGINE MOUNTING
41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X32)
09106-08185
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CRANK CASE ADJUST LWR
41921-16G00
Superseded by 41921-16G01
|
$26.50 | ||
|
Unavailable |
|||
|
#8
NUT,CRANK CASE ADJUST LWR
41922-33E20
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, FRAME HEAD
41139-21H10
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
