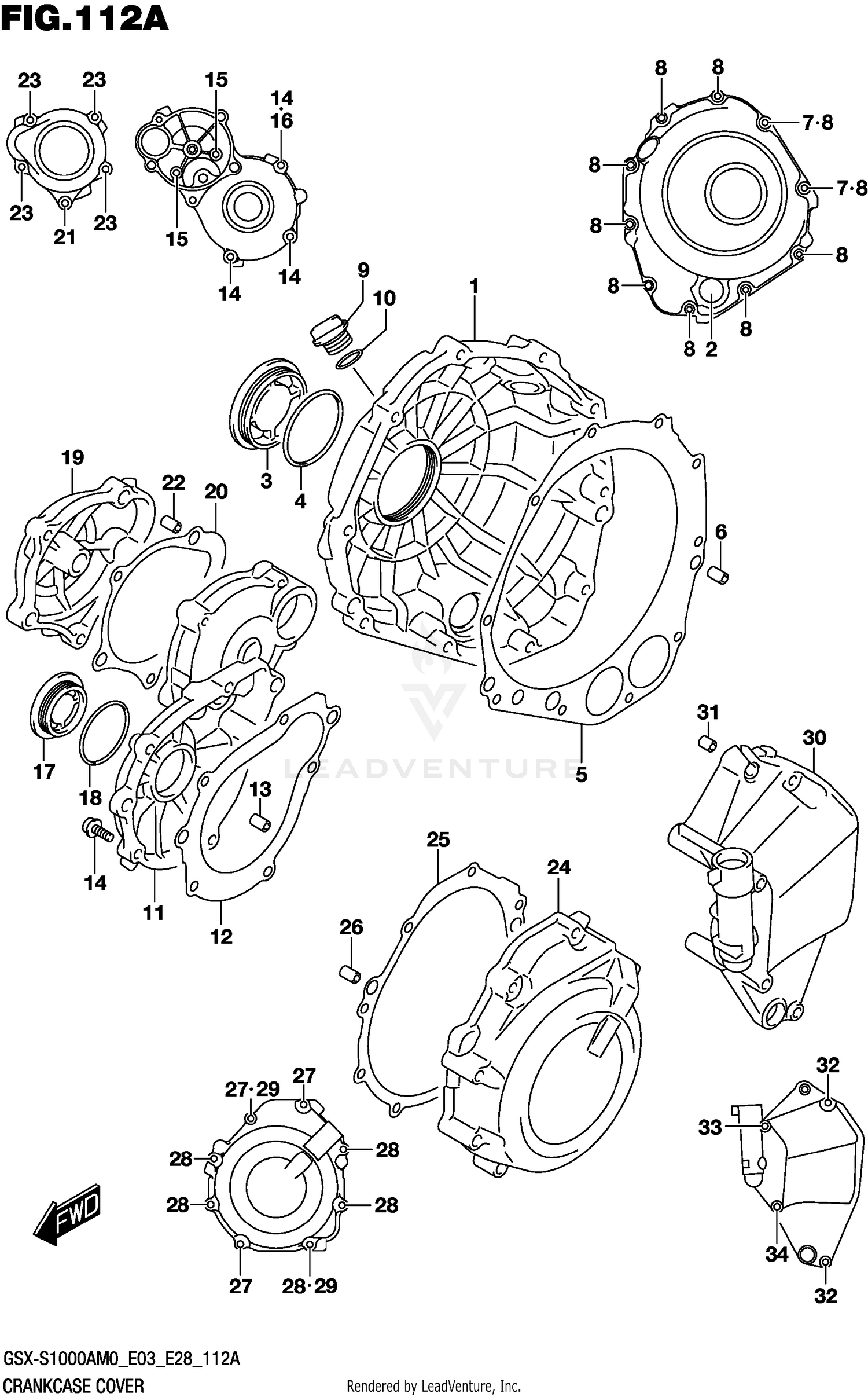

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,CLUTCH
11340-04K00
|
$270.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP,CLUTCH RELEASE ADJUST
11342-41G10
|
$32.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING (D:2.4,ID:52.6)
31156-17E00
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,CLUTCH COVER
11482-40F10
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT,CLUTCH COVER (6X30)
09103-06529
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
COVER, STARTER CLUTCH
11381-04K00
|
$191.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET,STARTER CLUTCH COVER
11491-33E02
|
$11.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT,STARTER CLUTCH COVER (6X
09103-06528
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,CLUTCH COVER (L:35)
09103-06530
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#17
PLUG (36X10)
09259-36021
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
O RING
09280-33004
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CAP, STARTER IDLE GEAR
11382-04K00
|
$71.28 | ||
|
Available to order. Add to View Price |
|||
|
#20
.GASKET, START IDLE GR CAP
11492-04K00
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,START IDLE GEAR CAP (6X6
09103-06535
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
|
#23
BOLT,CLUTCH COVER (L:35)
09103-06530
|
$2.31 | ||
|
Unavailable |
|||
|
#24
COVER,MAGNETO
11351-04K00
|
$158.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET,MAGNETO COVER
11483-18G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
|
#27
BOLT,CLUTCH COVER (6X30)
09103-06529
|
$2.14 | ||
|
Unavailable |
|||
|
#28
BOLT,MAGNETO COVER (6X40)
09103-06531
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#30
COVER,ENG SPROCKET
11361-04K00
|
$201.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT,ENG SPROCKET COVER (6X55
09103-06534
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT,ENG SPROCKET COVER (6X95
09103-06541
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT,ENG SPROCKET COVER (6X80
09103-06539
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
