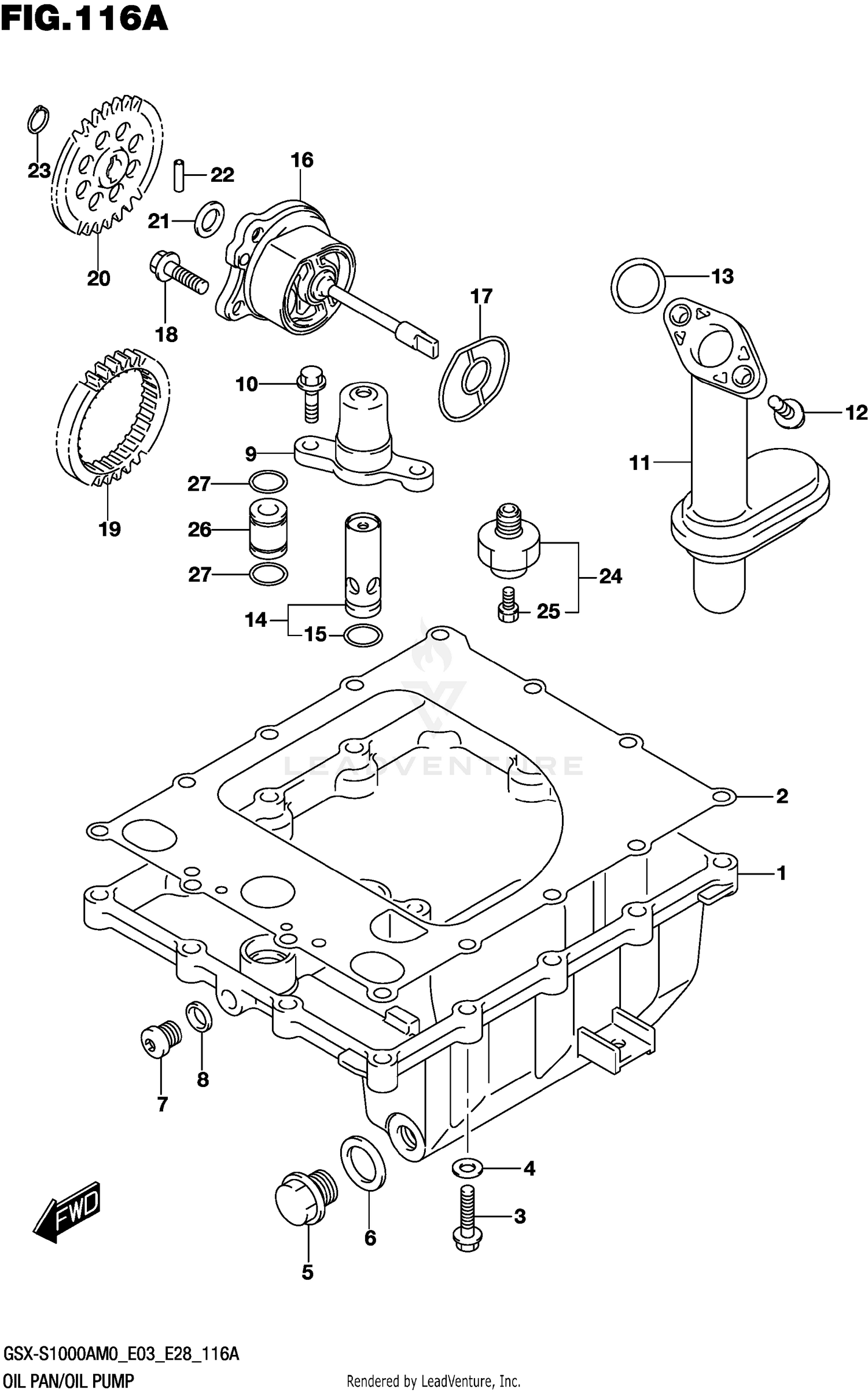

Oil Pan/oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN,OIL
11511-21H01
|
$215.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,OIL PAN
11489-21H00
|
$25.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
PLUG (14X20)
09247-14036
|
$7.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#7
PLUG (10X10)
09248-10010
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET (10X14X3.6)
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CAP,OIL RELIEF VALVE
11512-44G00
|
$24.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
STRAINER, ENG OIL
16520-04K00
|
$36.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X20)
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (D:2.62,ID:20.3)
09280-19008
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE ASSY,OIL RELIEF (7K)
16440-24F00
|
$64.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O RING (D:1.9,ID:13)
09280-13004
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PUMP ASSY, ENGINE OIL
16400-21H00
|
$250.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING,OIL PUMP
16491-35F00
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0620A
|
$2.54 | ||
|
Unavailable |
|||
|
#19
GEAR,OIL PUMP DRIVE (NT:33)
16321-35F01
|
$78.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,OIL PUMP DRIVEN (NT:35)
16331-35F00
|
$83.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHIM (10X18X0.5)
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN (4X15.8)
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#24
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#25
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE,OIL GALLERY
11281-44G00
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#27
.O RING (D:1.9,ID:13)
09280-13004
|
$2.72 | ||
|
Unavailable |
|||
