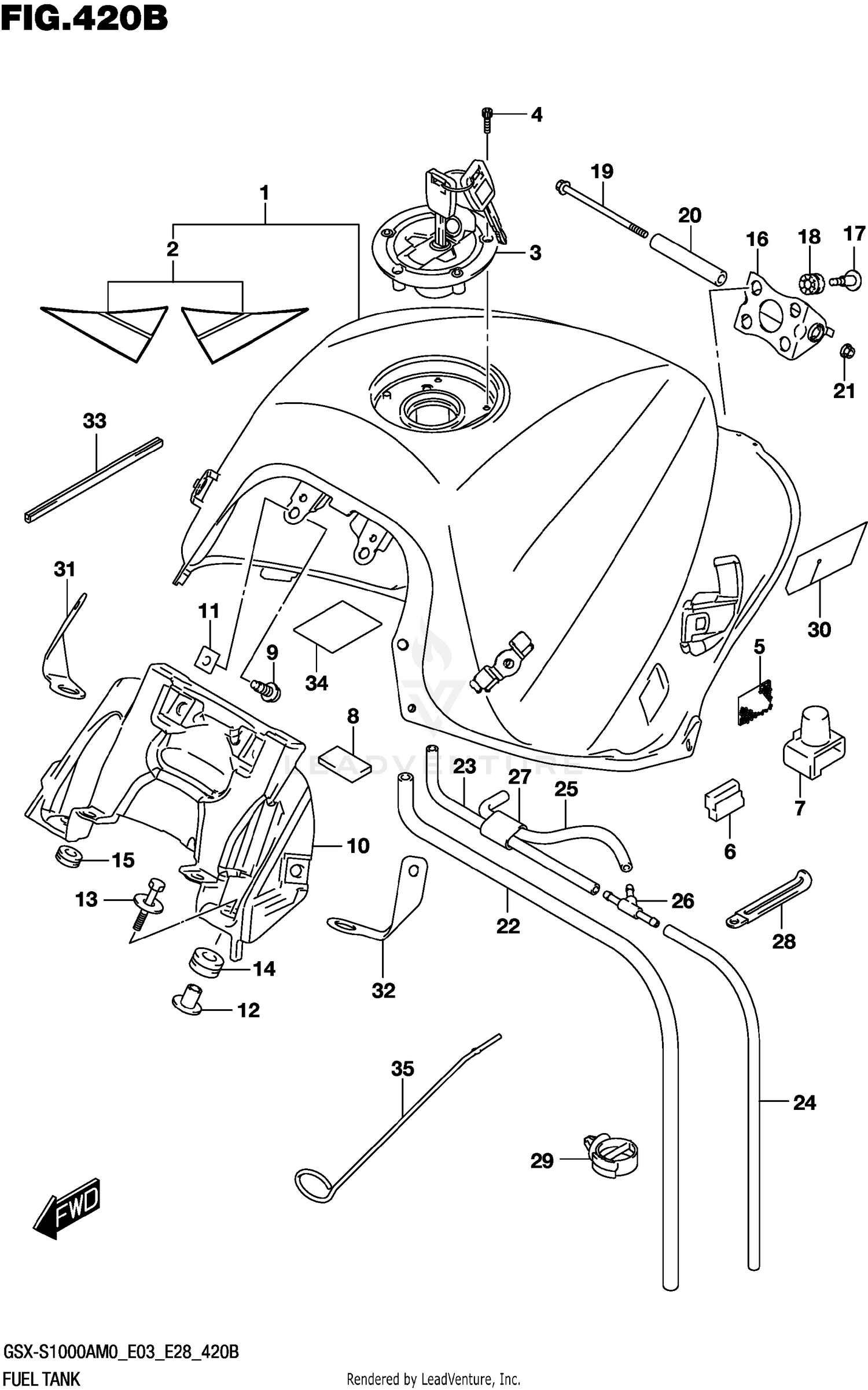

Fuel Tank (gsx-s1000za) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY,FUEL (BLUE)
44100-04K70-YSF
|
$1,254.95 | ||
|
Unavailable |
|||
|
#1-2
TANK ASSY,FUEL (WHITE)
44100-04K70-YWW
|
|||
|
Unavailable |
|||
|
#1-3
TANK ASSY,FUEL (GRAY)
44100-04K70-QEB
|
$1,183.91 | ||
|
Unavailable |
|||
|
#2-1
.TAPE SET,FUEL TANK (WHITE/BL
68110-04K20-A3F
|
|||
|
Unavailable |
|||
|
#2-2
.TAPE SET,FUEL TANK (BLUE/BLA
68110-04K20-BVC
|
|||
|
Unavailable |
|||
|
#2-3
.TAPE SET,FUEL TANK
68110-04K20-B4S
|
|||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TANK FILLER
44200-17840
|
$185.24 | ||
|
Unavailable |
|||
|
#4
BOLT,FUEL TANK FILLER CAP
44244-11J00
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, FUEL TANK SIDE
44541-41G00
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION, FUEL TANK REAR
44542-04K00
Superseded by 44542-04K01
|
$10.01 | ||
|
Unavailable |
|||
|
#8
PROTECTOR (50X50X5)
33652-21G10
Superseded by 33652-20C00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, FUEL TANK FRONT BRKT
44543-04K00
|
$4.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, FUEL TANK FRONT
44521-04K00
|
$106.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT (M6)
44523-47H00
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,FUEL TANK FRONT
44512-04K00
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X30)
09116-06172
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (10X22X13)
09320-10050
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-06504
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET,FUEL TANK REAR
44530-04K00
|
$32.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X24)
09139-06203
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
CUSHION
09320-08089
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X100)
09103-06060
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT (M6)
09159-06076
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE,FUEL TANK DRAIN NO.1
44423-04K01
|
|||
|
Unavailable |
|||
|
#23
HOSE,FUEL TANK BRTHR NO.1
44424-04K01
|
$11.73 | ||
|
Unavailable |
|||
|
#24
HOSE,FUEL TANK BRTHR NO.2
09352-50005-530
|
|||
|
Unavailable |
|||
|
#25
HOSE,FUEL TANK BRTHR NO.3
44424-15H11
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
3 WAY
09367-06007
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE,BRTHR CLAMP
09352-12164-010
|
|||
|
Unavailable |
|||
|
#28
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
09403-20307
|
$1.58 | ||
|
Unavailable |
|||
|
#30
PROTECTOR,FUEL TANK
44283-06J00
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET, FUEL TANK FRONT RH
44561-04K00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET, FUEL TANK FRONT LH
44571-04K00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
MOLDING,FUEL TANK,REAR
44552-24B00
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#34
CUSHION,FUEL TANK
44281-04K00
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#35
STAY,FUEL TANK
44560-23H00
|
$50.75 | ||
|
Available to order. Add to View Price |
|||
