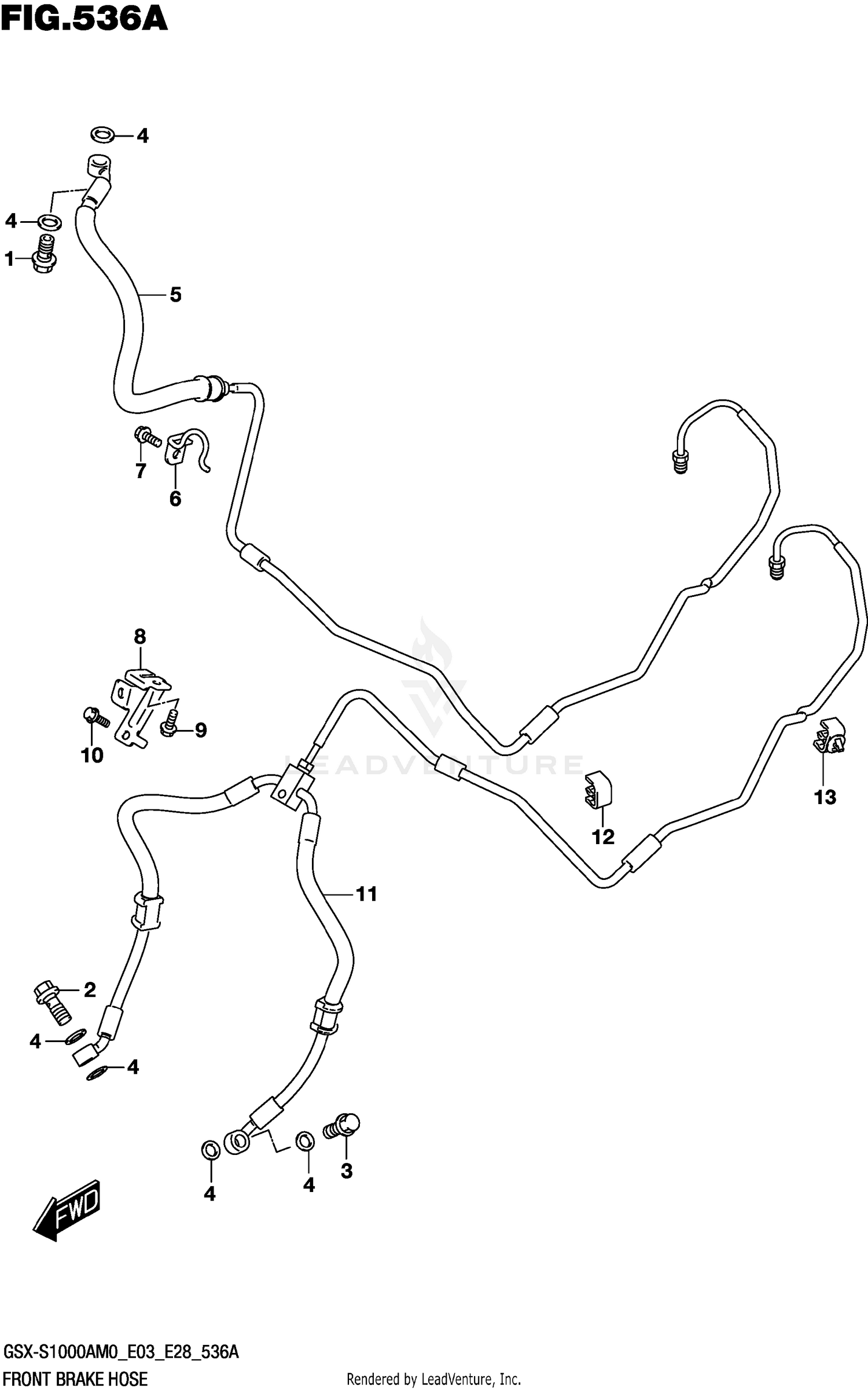

Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNION (10X1.25X22)
09360-10062
|
$8.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
UNION (10X1.25X22)
09360-10062
|
$8.08 | ||
|
Unavailable |
|||
|
#3
UNION (10X1.25X22)
09360-10062
|
$8.08 | ||
|
Unavailable |
|||
|
#4
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE ASSY,FRONT MASTER TO
59200-04K21
|
|||
|
Unavailable |
|||
|
#6
CLAMP, FR BRAKE HOSE UPPER
59260-04K10
|
|||
|
Unavailable |
|||
|
#7
BOLT
01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLAMP,FR BRAKE HOSE LOWER
59271-04K00
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE ASSY,FR UNIT TO CALIPER
59400-04K21
|
|||
|
Unavailable |
|||
|
#12
CLAMP
09403-06324
|
$2.48 | ||
|
Unavailable |
|||
|
#13
CLAMP
09403-07344
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
