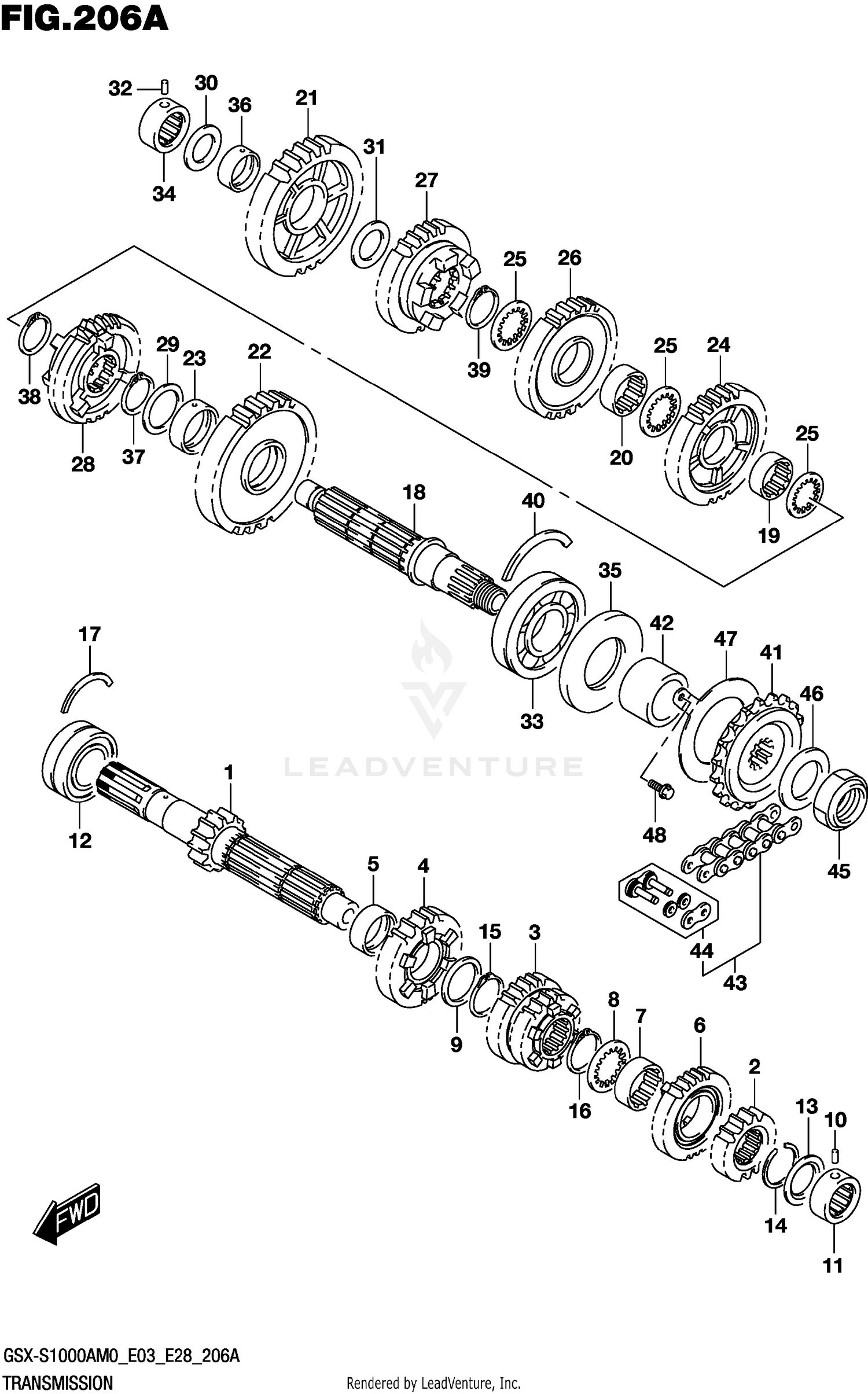

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, CNTR (NT:16)
24120-40F40
|
|||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-40F30
|
$132.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE
24231-40F50
|
$126.92 | ||
|
Unavailable |
|||
|
#4
GEAR, 5TH DRIVE (NT:25)
24251-40F50
|
|||
|
Unavailable |
|||
|
#5
BUSH,5TH DRIVE GEAR
24252-35F00
|
$27.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH DRIVE (NT:26)
24261-40F40
|
|||
|
Unavailable |
|||
|
#7
BUSH,6TH DRIVE GEAR
24262-35F10
|
$32.41 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,LOCK (27X36X2.5)
09167-27003
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM (27X36X2.5)
09181-27014
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN (6X10)
09261-06003
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (20X34X13.5)
09263-20087
|
$54.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (25X52X20.6)
09267-25013
|
$115.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL,OIL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CIRCLIP
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
09380-27006
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#17
C RING
09390-58001
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, DRIVE
24131-40F20
|
$209.04 | ||
|
Unavailable |
|||
|
#19
BUSH,3RD DRIVEN GEAR
24332-46H00
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH,3RD DRIVEN GEAR
24332-46H00
|
$43.96 | ||
|
Unavailable |
|||
|
#21
GEAR, 1ST DRIVEN (NT:41)
24311-40F30
|
$156.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 2ND DRIVEN (NT:39)
24321-40F50
|
$135.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH,2ND DRIVEN GEAR
24322-02F01
|
$24.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR,3RD DRIVEN (NT:36)
24331-40F30
|
$188.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER,3RD & 4TH DRIVEN
24333-02F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR,4TH DRIVEN (NT:36)
24341-40F20
|
$196.77 | ||
|
Available to order. Add to View Price |
|||
|
#27
GEAR, 5TH DRIVEN (NT:34)
24351-40F40
|
$156.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, 6TH DRIVEN (NT:33)
24361-40F30
|
$160.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER (27X36X1.0)
09160-27008
|
$4.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SHIM (20X34X1)
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
SHIM (22X34X1)
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN (6X10)
09261-06003
|
$1.88 | ||
|
Unavailable |
|||
|
#33
BEARING (28X70X18)
09262-28025
|
$163.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING (20X34X13.5)
09263-20087
|
$54.54 | ||
|
Unavailable |
|||
|
#35
OIL SEAL (34.8X70X6)
09283-36008
|
$26.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING (22X26X11)
09263-22068
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#37
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#38
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#39
CIRCLIP
09380-27006
|
$3.38 | ||
|
Unavailable |
|||
|
#40
C RING (67.6X75X2)
09390-70001
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPROCKET,ENGINE (NT:17)
27511-20A20
Superseded by 27511-20A21
|
$53.97 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPACER, ENGINE SPROCKET
27531-04K00
|
$29.89 | ||
|
Available to order. Add to View Price |
|||
|
#43
CHAIN ASSY, DRIVE (RK525GSH)
27600-33E50-116
|
$330.76 | ||
|
Available to order. Add to View Price |
|||
|
#44
.JOINT SET, DRIVE CHAIN (RK)
27620-33E50
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER (25X38X2.5)
09160-25066
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#47
RETAINER,DRIVE SHAFT OIL SEAL
24751-04K00
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT (6X12)
09103-06236
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
