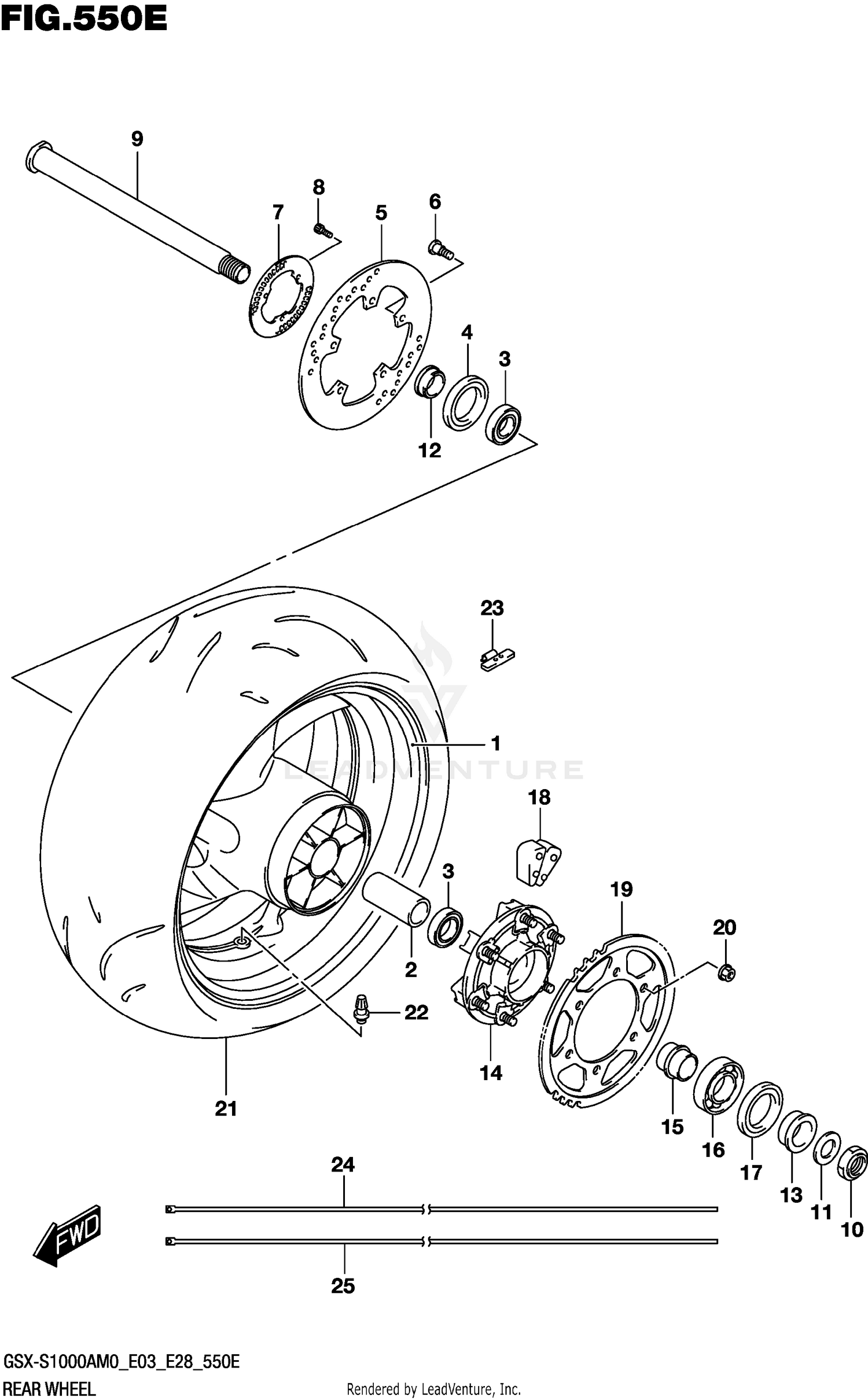

Rear Wheel (gsx-s1000za) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
WHEEL, REAR (17M/CXMT6.00)
64111-04K02-019
Superseded by 64111-04K30-019
|
$997.90 | ||
|
Unavailable |
|||
|
#1-2
WHEEL,REAR (17M/CXMT6.00,BLUE
64111-04K02-YLY
|
$1,198.86 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
WHEEL,REAR (17M/CXMT6.00,RED)
64111-04K02-QGY
|
$973.55 | ||
|
Unavailable |
|||
|
#2
SPACER, RR HUB BEARING
64731-35F10
|
$68.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (28X52X12)
09262-28052
Superseded by 09262-28062
|
$33.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL,OIL (37X52X8)
09284-37001
Superseded by 09284-37002
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISC, REAR BRAKE
69211-04K00
|
$158.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X21)
09106-08160
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING,SPEED SENSOR RR (50T)
64162-04K00
|
$34.06 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
07130-0512A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
AXLE, RR
64711-49G30
|
$160.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT,REAR AXLE
64721-17K00
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (25.2X42X3.2)
09160-25070
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,REAR AXLE RH
64741-35F10
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER,REAR AXLE LH
64751-47H10
|
$21.16 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRUM, REAR SPROCKET
64610-04K00
|
$283.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
RETAINER,REAR SPROCKET DRUM
64733-35F00
|
$34.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING (32X65X17)
09262-32022
Superseded by 09262-32024
|
$49.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (39X65X7)
09285-39001
|
$13.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
ABSORBER,REAR HUB SHOCK
64651-47H10
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPROCKET, REAR (NT:44)
64511-04K00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08319-3110A
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
TIRE,RR(190/50Z
65110-04K00
Superseded by 65110-04K02
|
$367.33 | ||
|
Unavailable |
|||
|
#22
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$11.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00
|
$9.72 | ||
|
Available to order. Add to View Price |
|||
|
#23-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#23-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
TAPE,WHEEL RH
68251-04K00-B4W
|
$54.09 | ||
|
Unavailable |
|||
|
#25
TAPE,WHEEL LH
68252-04K00-B4W
|
$51.38 | ||
|
Unavailable |
|||
