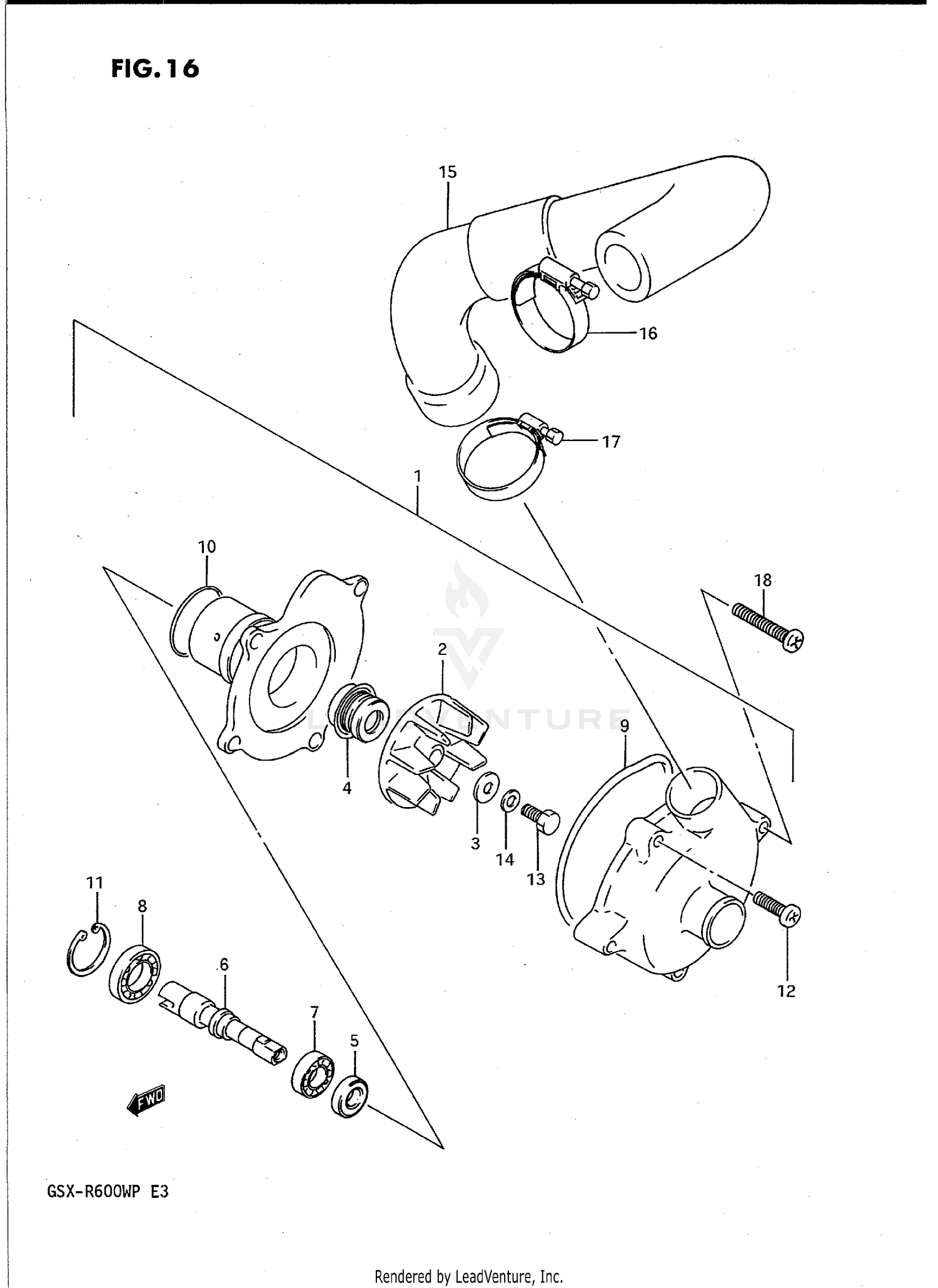

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-17E00
Superseded by 17400-17E02
|
$327.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
.IMPELLER
17491-17E00
Superseded by 17491-17E01
|
$35.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
09168-06025
|
$3.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.SEAL,MECHANICAL
17470-46A00
Superseded by 17470-02F11
|
$37.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
.OIL SEAL (10X21X5)
17461-38A00
Superseded by 09283-10004
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, WATER PUMP
17511-17E00
|
$75.98 | ||
|
Unavailable |
|||
|
#7
BEARING
08113-69010
|
$29.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
09262-15008
|
$17.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
.O RING
17418-33400
Superseded by 17418-33401
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING
17435-33400
|
$19.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
08331-41286
Superseded by 08331-41289
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-06166
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X13)
09100-06099
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
09164-06006
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE, WATER PUMP OUTLET
17854-17E00
Superseded by 17854-17E01
|
$26.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
09402-30502
Superseded by 09402-32511
|
$13.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP
09402-33502
Superseded by 09402-38511
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
02112-06357
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
