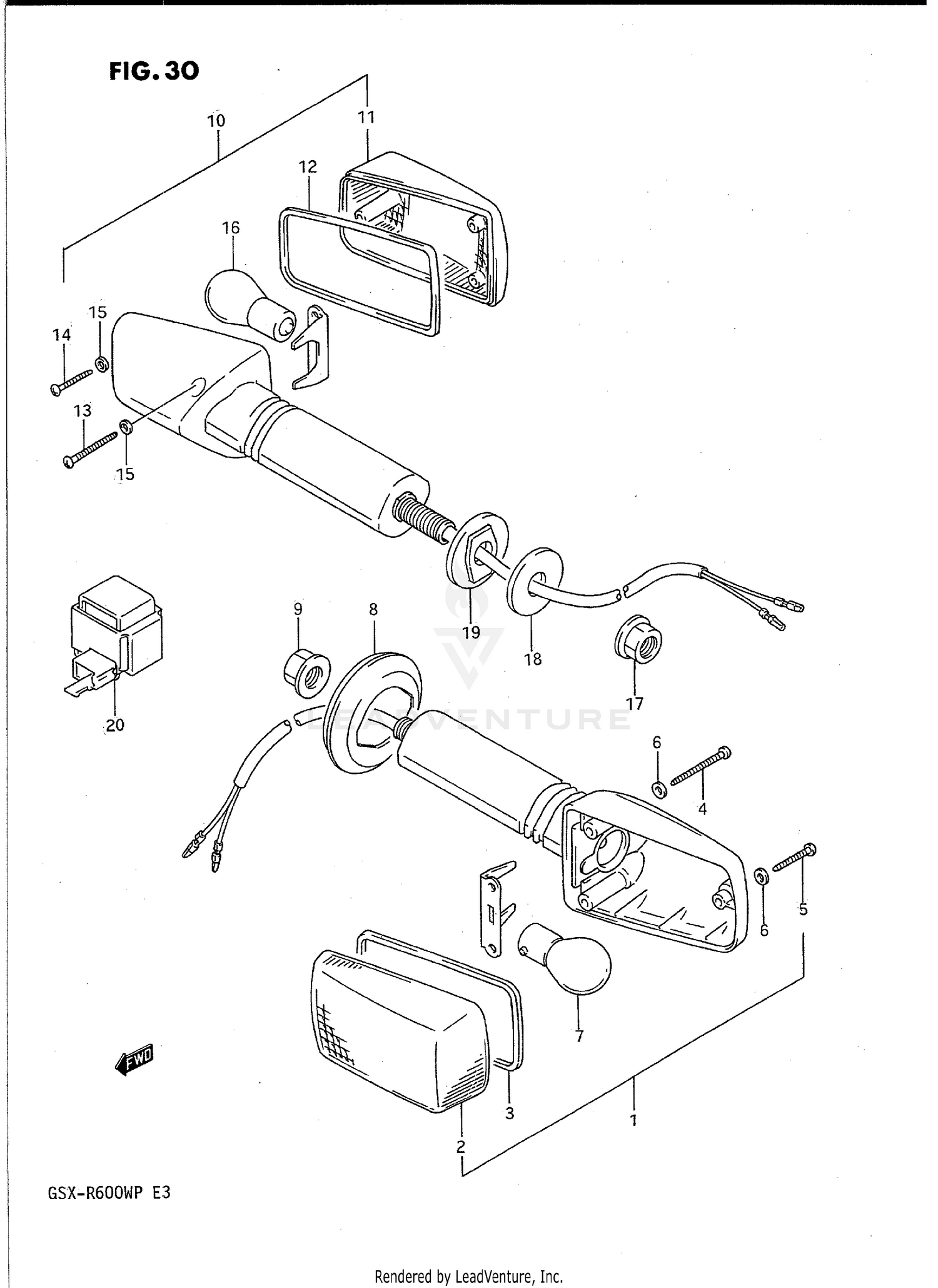

Turnsignal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL
35601-01D10
|
$78.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35612-17C20
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35613-27A00
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAPPING SCREW
35623-27A00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
TAPPING SCREW
35725-40511
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET
35627-27A02
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
35674-27A01
|
$12.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08316-26105
Superseded by 08316-2010B
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
LAMP ASSY, REAR TURNSIGNAL
35601-17C41
|
$80.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
LENS
35612-17C20
|
$13.81 | ||
|
Unavailable |
|||
|
#12
GASKET
35613-27A00
|
$6.01 | ||
|
Unavailable |
|||
|
#13
TAPPING SCREW
35623-27A00
|
$1.88 | ||
|
Unavailable |
|||
|
#14
TAPPING SCREW
35725-40511
|
$2.18 | ||
|
Unavailable |
|||
|
#15
GASKET
35627-27A02
|
$1.80 | ||
|
Unavailable |
|||
|
#16
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Unavailable |
|||
|
#17
NUT
08316-26106
Superseded by 08316-2010B
|
$4.38 | ||
|
Unavailable |
|||
|
#18
WASHER
09160-10094
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
35695-17C00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY, TURN SIGNAL
38610-45D00
Superseded by 38610-45D01
|
$88.44 | ||
|
Available to order. Add to View Price |
|||
